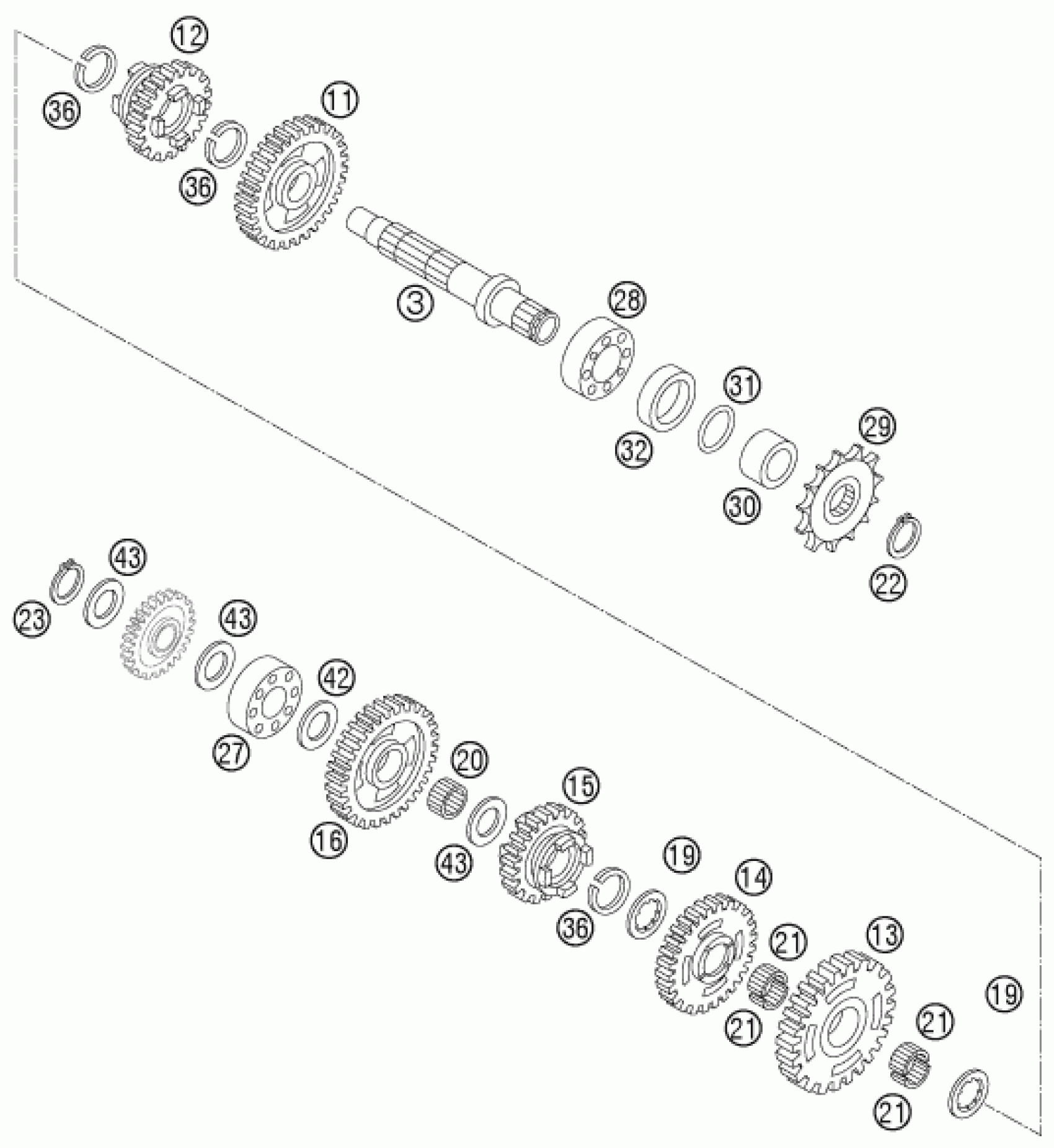

KTM 105 SX 2006 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

3

COUNTERSHAFT

47033003100

Unavailable

11

IDLER GEAR 2ND G. 28-T 03

47033011000

Unavailable

12

SLIDING GEAR 6TH G. 21-T

47033012100

Unavailable

13

IDLER GEAR 3RD G.

47033013100

Unavailable

14

IDLER GEAR 4TH G.

47033014100

Unavailable

15

SLIDING GEAR 5TH G. 25-T

47033015100

Unavailable

16

IDLER GEAR 1ST G. 29-T 03

47033016000

Unavailable

20

NEEDLE BEARING K15X19X10S

47033099000

Unavailable

22

CIRCLIP AS20X1,75

49033091000

Unavailable

23

CIRCLIP DIN0471-15X1

0471150010

Unavailable

27

BALL BEARING 16002

0625160026

Unavailable

28

Grooved ball bearing 6204 JR2

0625062041

Unavailable

29

ENGINE SPROCKET 13-T 85 SX 03

47033029013

Unavailable

29

ENGINE SPROCKET 14-T 85 SX 03

47033029014

Unavailable

30

SPACER FOR SPROCKET

47033030000

Unavailable

31

O-RING 18,77X1,78

46033031000

Unavailable

32

SHAFT SEAL RING 26X35X6

0760263560

Unavailable

36

CIRCLIP SW21

0417210120

Unavailable

42

STOP DISC 15X25X1

47033040000

Unavailable

43

STOP DISC 15X25X0,5

47033043000

Unavailable

19

SHIM

47033095000

Unavailable

21

NEEDLE BEARING HALF

47033098000

Unavailable
