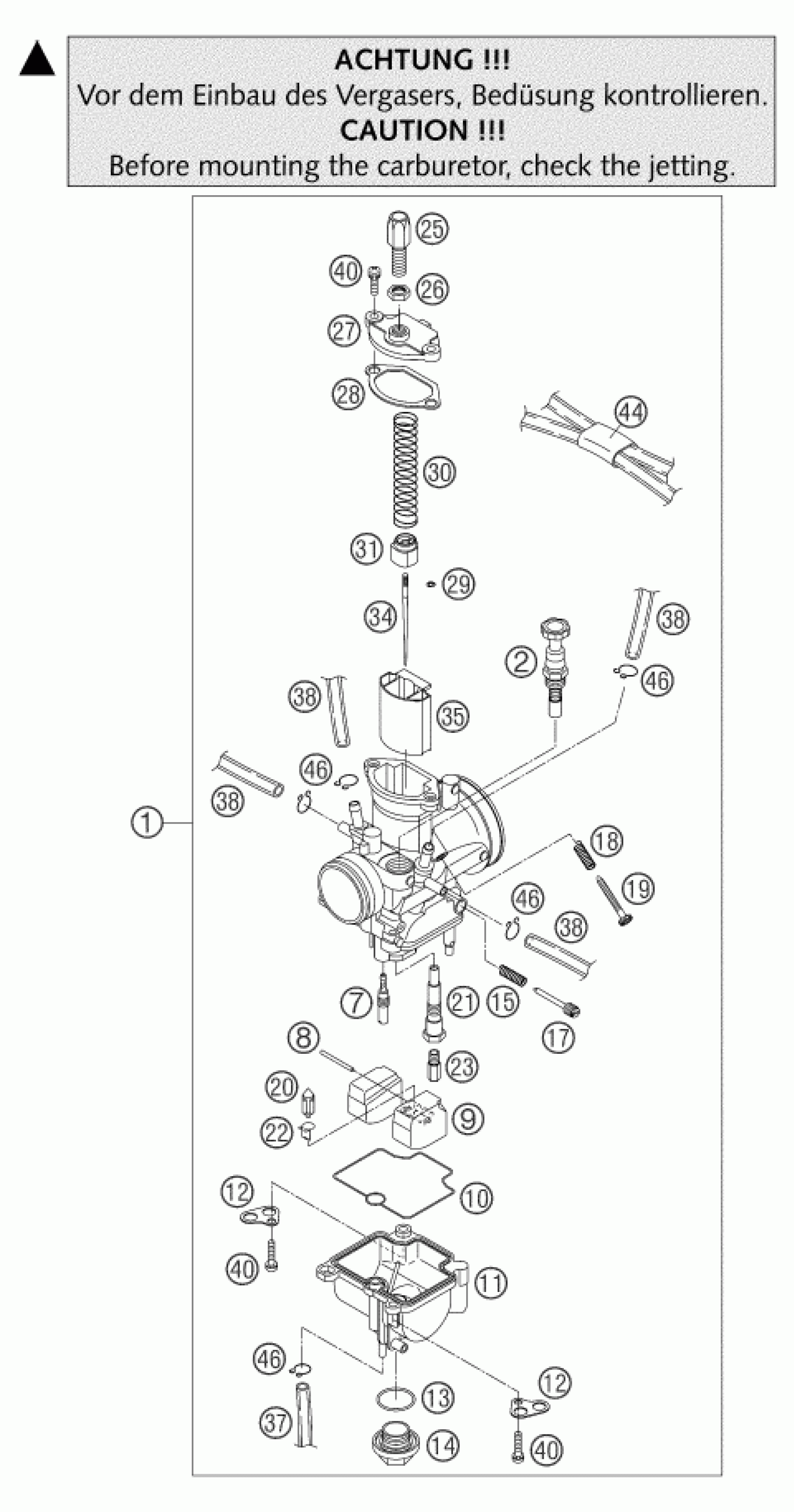

KTM 105 SX 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIHIN PWK 28 2003

47031001000

$413.73

2

STARTER PISTON CPL.

54631245000

$89.94

7

IDLE JET 45 KEIHIN

54531607045

$12.52

8

ARM PIN FLOAT

57331008000

$2.05

9

FLOAT CPL. PWK28 03

47031009000

$46.84

10

FLOAT CHAMBER GASKET

47031010000

$8.13

11

FLOAT CHAMBER PWK28 03

47031011000

$71.99

12

RETAINING PLATE FOR BLEEDER

54531612100

$3.08

13

O-RING 18,00X2,30 NBR 70

0770180230

$3.08

14

HOLDING BOLT

57331014000

$20.75

15

SPRING FOR ADJUSTMENT SCREW

54531615000

$3.08

17

ADJUSTMENT SCREW

54531617000

$8.50

18

SPRING

54631118000

$9.81

19

ADJUSTMENT SCREW M 5

54631219100

$17.01

20

FLOAT NEEDLE CPL.

47031020000

$27.67

21

NEEDLE JET

47031021000

$33.56

22

CLIP FOR FLOAT VALVE

47031022000

$4.11

23

MAIN JET 115 KEIHIN

54531623115

Unavailable

23

MAIN JET 118 KEIHIN

54531623118

$12.61

23

MAIN JET 120 KEIHIN

54531623120

Unavailable

23

MAIN JET 122 KEIHIN

54531623122

Unavailable

25

ADJUSTMENT SCREW M 6X0,75

54531625000

$8.03

26

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

27

CARBURETOR COVER PWK28 03

47031027000

$29.82

28

CARBURETOR COVER GASKET PWK28

47031028000

$6.26

29

CLIP FOR JET NEEDLE

54531629000

$3.08

30

THROTTLE VALVE SPRING

47031030000

$10.18

31

SPRING CAP

47031031000

$7.56

34

JET NEEDLE N5HG KEIHIN

47031034000

$15.14

34

JET NEEDLE N5HF KEIHIN

47031034100

Unavailable

34

JET NEEDLE N5HH KEIHIN

47031034200

Unavailable

35

THROTTLE VALVE 3,5

47031035000

$191.48

37

PVC-HOSE 3X5MM

52031137001

Unavailable

38

PVC-HOSE 4X6MM

31007007101

$4.11

40

HH COLLAR SCREW M 4X16 WS=6

0016040163

$2.05

44

PLASTIC-CLIP

47031084000

$10.53

46

Clamp 6mm

54531696000

$3.08
