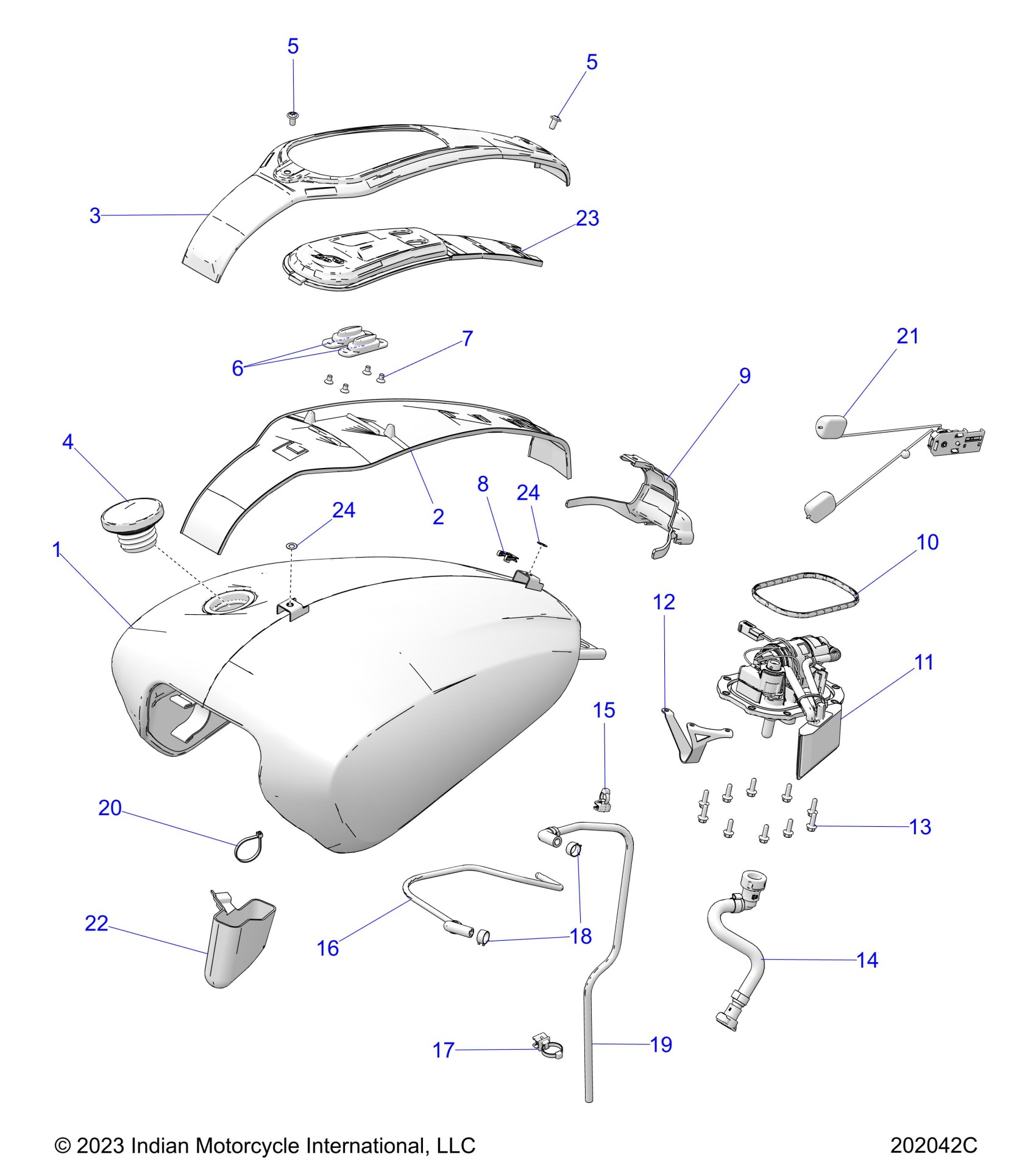

Polaris 101 SCOUT ALL OPTIONS (R05) - N25SSE77A0/1/B0/1/C0/1/E0/1/J0/1/P0/1/X0/1 FUEL SYSTEM, FUEL TANK ASM. - N25SSE77 (202042C) Diagram

ASM-TANK,FUEL,OBLK/GSTWHT/GFX [BLACK METALLIC / GHOST WHITE METALLIC W/ GFX]

1027853-2272

$2,269.99

ASM-TANK,FUEL,ONYXBLK [INTL ONLY] [BLACK METALLIC]

1027853-800

$2,159.99

ASM-TANK,FUEL,OBLK/SUNRED/GRFX [BLACK METALLIC / SUNSET RED W/ GFX]

1027853-2273

$2,269.99

PAD-CONSOLE

5418377

$34.99

CONSOLE-TANK,FUEL,ONYXBLK/GRFX [BLACK METALLIC W/ GFX]

5273220-2033

$204.99

CAP, FUEL, CHROME

2522214-156

$125.86

CAP-FUEL,TETHER,CHR [CHINA ONLY]

2522281-156

$111.33

BUMPER-CAP,FUEL [CHINA ONLY] [RUBBER BUMPER ONLY]

5417339

$5.65

SCREW-M6X1X12,SS,6-LOBE FH

7528176

$3.97

SCREW-M6X1X12,SS,6-LOBE FH

7528176

$3.97

PLUG, SWITCH, CONSOLE, TALL

5453426

$9.70

SCREW-FLHD-M5X.8X8.8 ZNC

7519876

$3.97

C-CLIP,M6

7082445

$3.97

COVER-CONSOLE,TANK [TO 12/16/24]

5465881

$20.22

COVER-CONSOLE,TANK [FROM 12/16/24]

5466716

$20.22

SEAL, FUEL, PFA

5414830

$42.84

ASM-PUMP,FUEL

2522832

$474.99

ASM-PUMP,FUEL [CHINA ONLY]

2522696

$474.99

ASM-FILTER,FUEL [FUEL FILTER ONLY]

2522838

$79.99

BRKT-LINE,FUEL,ECOAT

2522602-329

$15.99

SCREW-HXFL-M5X0.80X16 8.8 ZY3

7521169

$3.99

LINE-FUEL

8450251

$68.79

CLIP-EDGE,HARNESS

7082398

$4.99

LINE-VENT,TANK

5459548

$58.08

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

HOSE CLAMP, RED

7080003

$1.19

LINE-VENT,CHASSIS

5459551

$58.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

ASM-SENDER,FUEL LEVEL

2522809

$69.99

BAFFLE-FUEL

5419125

$64.75

MOUNT-CONSOLE,ANTENNA

5459688

$44.51

WASHER-BOPET, .496X.253X.010

7558821

$0.79

WASHER-BOPET, .496X.253X.010

7558821

$0.79
