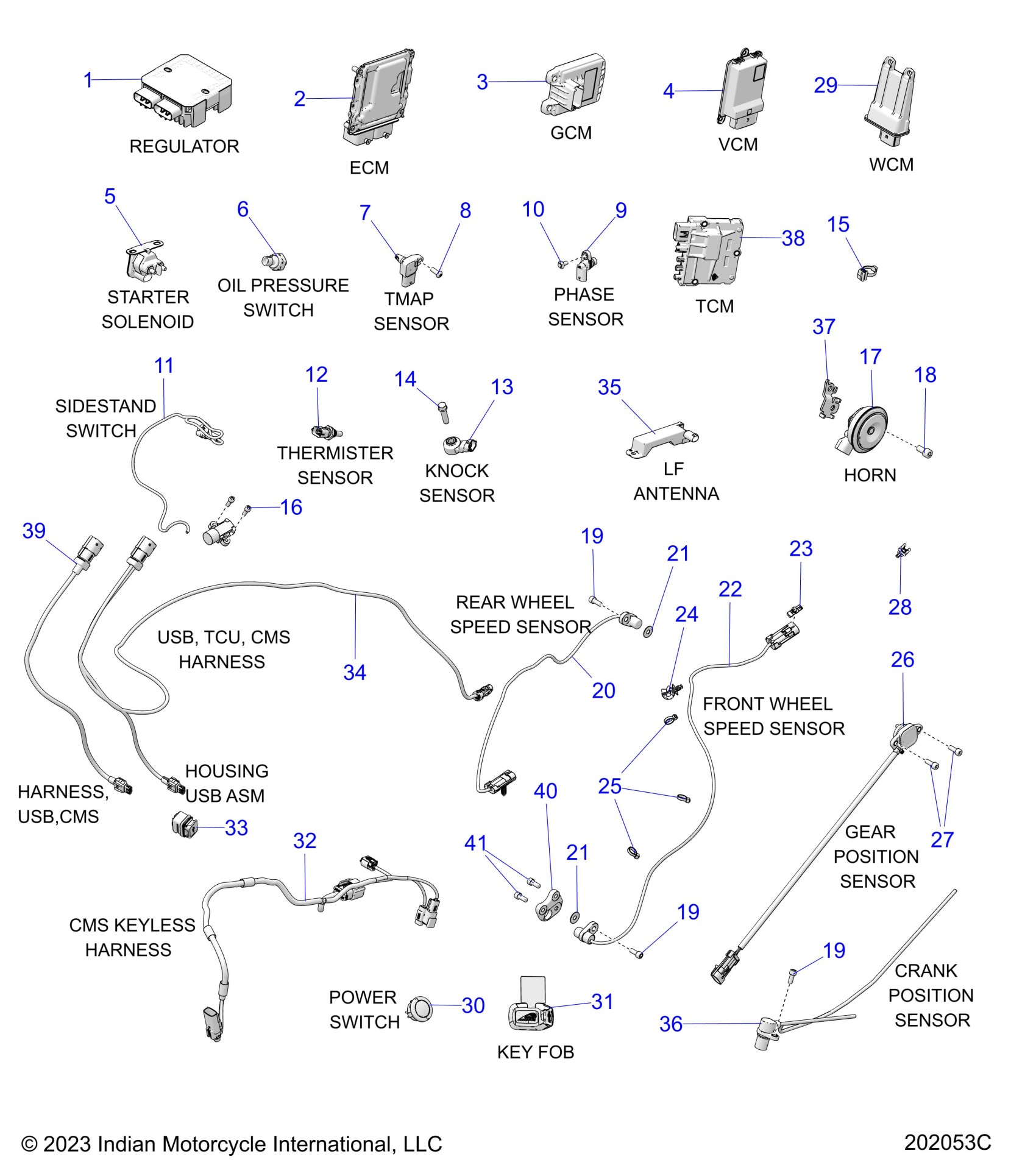

Polaris 101 SCOUT ALL OPTIONS (R05) - N25SSE77A0/1/B0/1/C0/1/E0/1/J0/1/P0/1/X0/1 ELECTRICAL, COMPONENTS - N25SSE77 (202053C) Diagram

#

Description
Price

1

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

2

ECM-HARD,MG1,112P,3LSF [DEALER INSTALL REQUIRED]

4082489

$263.99

3

GCM-HARD,4CH,0L,G1,V1 [DEALER INSTALL REQUIRED]

4080915

Unavailable

4

VCM-GEN2.1,UNPROGRAMMED,V2 [DEALER INSTALL REQUIRED]

4082236

Unavailable

5

SOLENOID-STARTER,SEALED

4014655

$49.99

6

SWITCH-OIL PRESSURE MG1

4017989

Unavailable

7

SENSOR-TMAP

2413061

Unavailable

8

SCR-TXBH-M6X1.0X16 8.8 ZC

7519748

$4.79

9

SENSOR-PHASE

4016465

$63.99

10

SCREW-HXFL-M5X0.8X12 4.8 ZPC

7518338

$4.79

11

SWITCH, SIDE STAND, PLUNGER

4014289

Unavailable

12

SENSOR-THERMISTER

4010644

$87.13

13

SENSOR-KNOCK BOSCH

2413713

$59.99

14

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.59

15

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

16

SCR-SH-M5X0.8X10 8.8 ZPB D204

7516610

$3.99

16

SCR-SH-M5X0.8X16 8.8 ZNBH [JAPAN ONLY]

7528254

Unavailable

17

HORN-DISK,76MM DIA

4081384

Unavailable

18

SCREW-SH-M8X1.25X16 8.8 ZPC

7519894

Unavailable

19

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.19

19

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.19

19

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.19

20

SENSOR-WHEEL SPEED,590MM

4081070

Unavailable

21

SHIM-SENSOR,ABS,0.5MM

5255106

Unavailable

21

SHIM-SENSOR,ABS,0.5MM

5255106

Unavailable

22

SENSOR-WHEEL SPEED,803.5MM

4081071

Unavailable

23

CLIP-FIR,HOLE6.35MM

7082134

$3.99

24

CLIP-NYLON, C, FIR-TREE

7662310

$4.79

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

SENSOR-GEAR POSITION,N-6,475

4019453

Unavailable

27

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.99

28

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

29

WCM,GEN1,UNPROGRAMMED,V1 [DEALER INSTALL REQUIRED]

4019281

Unavailable

29

ASM-WCM,GEN1,PGM,V4,315MHZ [JAPAN ONLY]

2417572

Unavailable

30

SWITCH-POWER, 38MM BLACK

4016998

Unavailable

31

KEYFOB-GEN2,NOKEY,0B,V1

4017768

Unavailable

31

KEYFOB-GEN2,NOKEY,0B,V1,315MHZ [JAPAN ONLY]

4019469

Unavailable

32

HARN-KEYLESS,IND,CMS,D1

2416667

Unavailable

33

ASM-USB,HOUSING

2639192

Unavailable

34

HARN-CELL,USB,TCU,CMS

2416825

Unavailable

35

ANTENNA-LF,21KHZ

4018381

Unavailable

36

SENSOR-CRANK POSITION,445MM

4015068

$107.99

37

BRKT-MOUNT,HORN

5274735

Unavailable

38

TCU-PGM,500K,G1,V1.2

2418125

Unavailable

38

TCU-PGM,500K,G1,V1.2,GLOBAL [INTL]

2418126

Unavailable

39

HARN-USB,CMS [PACIFIC, JAPAN, CHINA MODELS]

2416824

Unavailable

40

BRKT-WSS,FRONT

5142999

Unavailable

41

SCREW-SH-M6X1.0X15 10.9 ZPC D204

7517775

Unavailable
