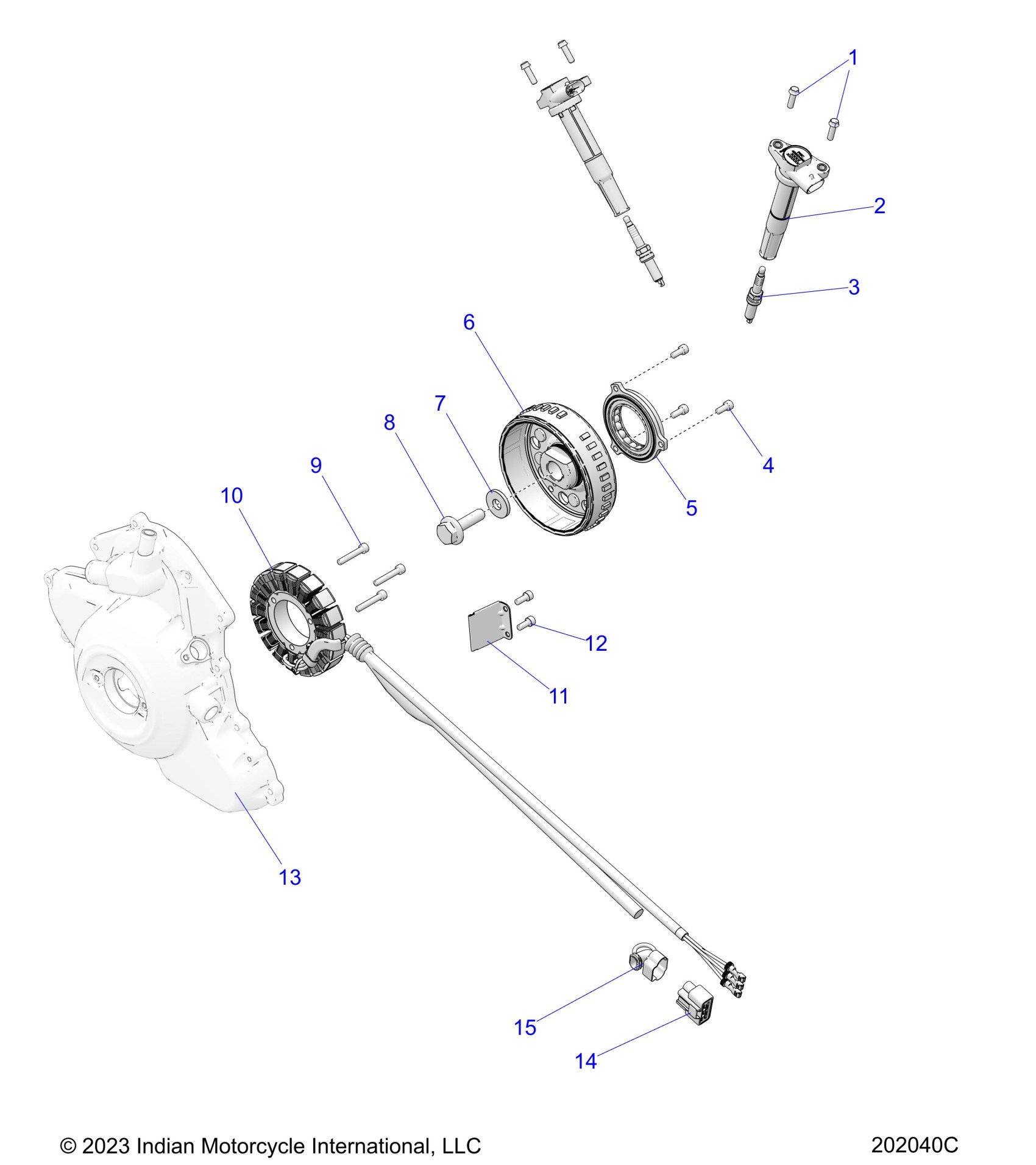

Polaris 101 SCOUT ALL OPTIONS (R01) - N26SSE77A1/2/B1/2/C1/2/D1/2/E1/2/F1/2/J1/2/P1/2/X1/2 ELECTRICAL, IGNITION SYSTEM - N26SSE77 (202040C) Diagram

#

Description

Price

1

SCR-HXFL-M6X1.0X20 8.8 ZPC

7520035

$4.76

2

COIL-IGNITION W/SUPPRESSOR

4081983

$101.65

3

SPARK PLUG-10MM

3076352

Unavailable

4

SCR-SH-M6X1.0X14,12.9

7520904

$4.76

5

ASM., SPRAG CLUTCH HUB, STARTER

1204980

$169.43

6

FLYWHEEL

4080901

$474.99

7

WSHR-32X12X4,HARD

7556885

$5.56

8

SCR-HXFL-M12X1.25X43 12.9,JET

7528239

$14.99

9

SCREW-M6X1.0X35 SOC/CP-Y/D

7517848

$5.56

10

STATOR [INCL. 16,17]

4082076

$498.63

11

CLIP-STATOR WIRE

5273428

$2.38

12

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

13

ASM-ACG COVER,JBLK [SEE ENGINE, COVER ASM., ACG]

----

Unavailable

14

CONNECTOR-QLW SERIES,3F,GRAY

4014672

Unavailable

15

BOOT-RUBBER

5418919

$5.65
