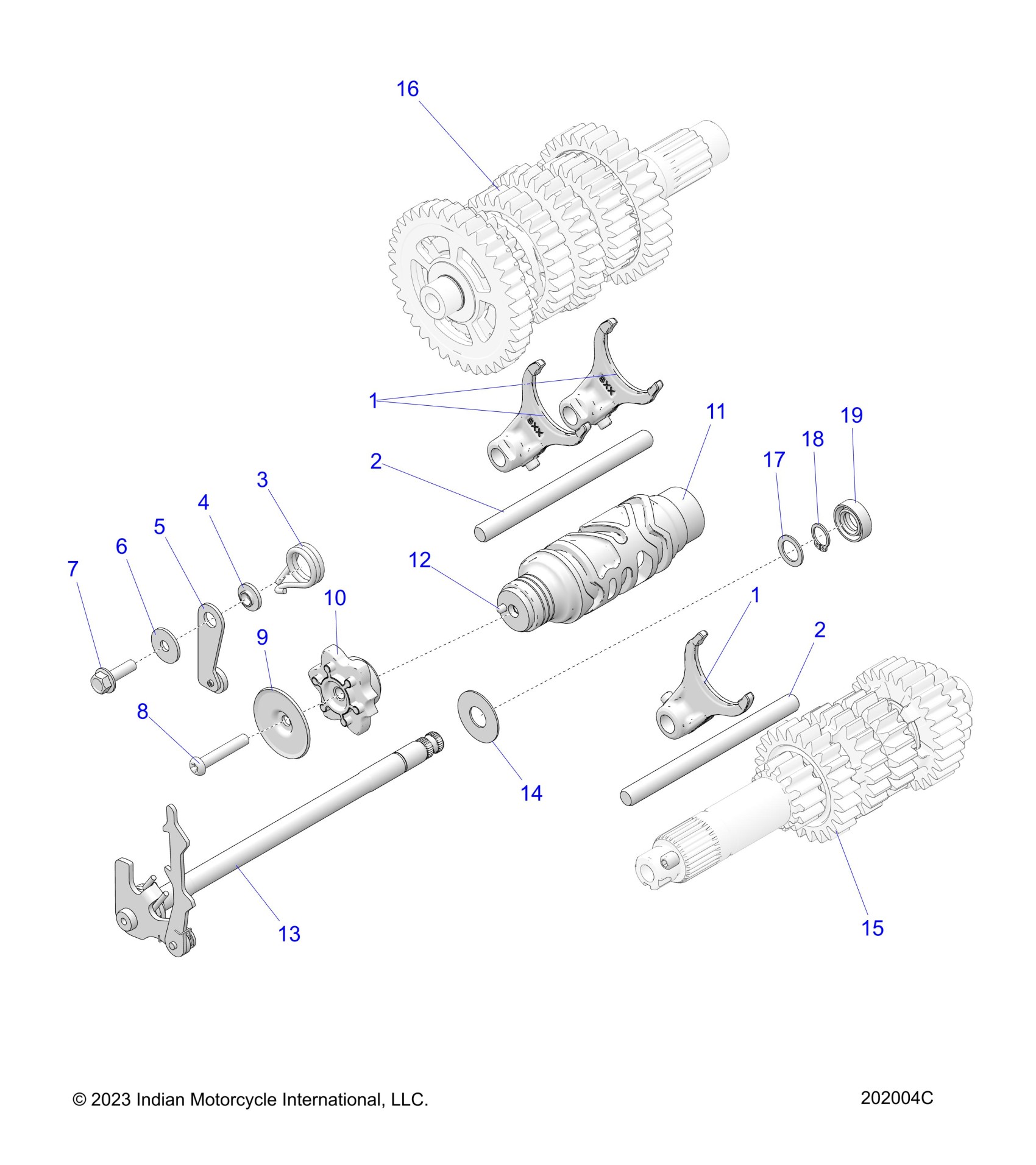

Polaris 101 SCOUT ALL OPTIONS (R01) - N26SSE77A1/2/B1/2/C1/2/D1/2/E1/2/F1/2/J1/2/P1/2/X1/2 DRIVE TRAIN, SHIFT FORKS and DRUM - N26SSE77 (202004C) Diagram

FORK-SHIFT,2ND/4TH

5138520

Unavailable

FORK-SHIFT,2ND/4TH

5138520

Unavailable

RAIL, SHIFT FORK

5138750

Unavailable

RAIL, SHIFT FORK

5138750

Unavailable

SPRING-TORSION,LH,DETENT

7045544

Unavailable

WASHER-PILOT,6.5X15X1.0

7556780

Unavailable

ASM., ROLLER FOLLOWER LH

1333426

Unavailable

WASHER-6.4X20.0X1.6 01

7556054

$10.39

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7518141

$4.79

SCREW-TORBH-M6X1.0x35 8.8 ZPY C

7520597

$3.99

WASHER, STAR

7556749

Unavailable

STAR, SHIFTER

1337383

Unavailable

ASM-SHIFT DRUM,6-SPEED

1337367

Unavailable

PIN-SOLID, M4X8

7661023

Unavailable

ASM., SHIFTER RATCHET

1333461

Unavailable

WASHER-FLAT,12.25X30"

7556748

Unavailable

ASM-OUTPUT,6 SPEED [SEE DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.]

-------

Unavailable

ASM-INPUT,6 SPEED [SEE DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.]

-------

Unavailable

WASHER-THRUST,12.20X18.00X1.00

7555977

$7.19

RING-RETAINING,EXTERNAL,12MM

7710645

$1.49

SEAL SHAFT, 12X22X7

3610154

Unavailable
