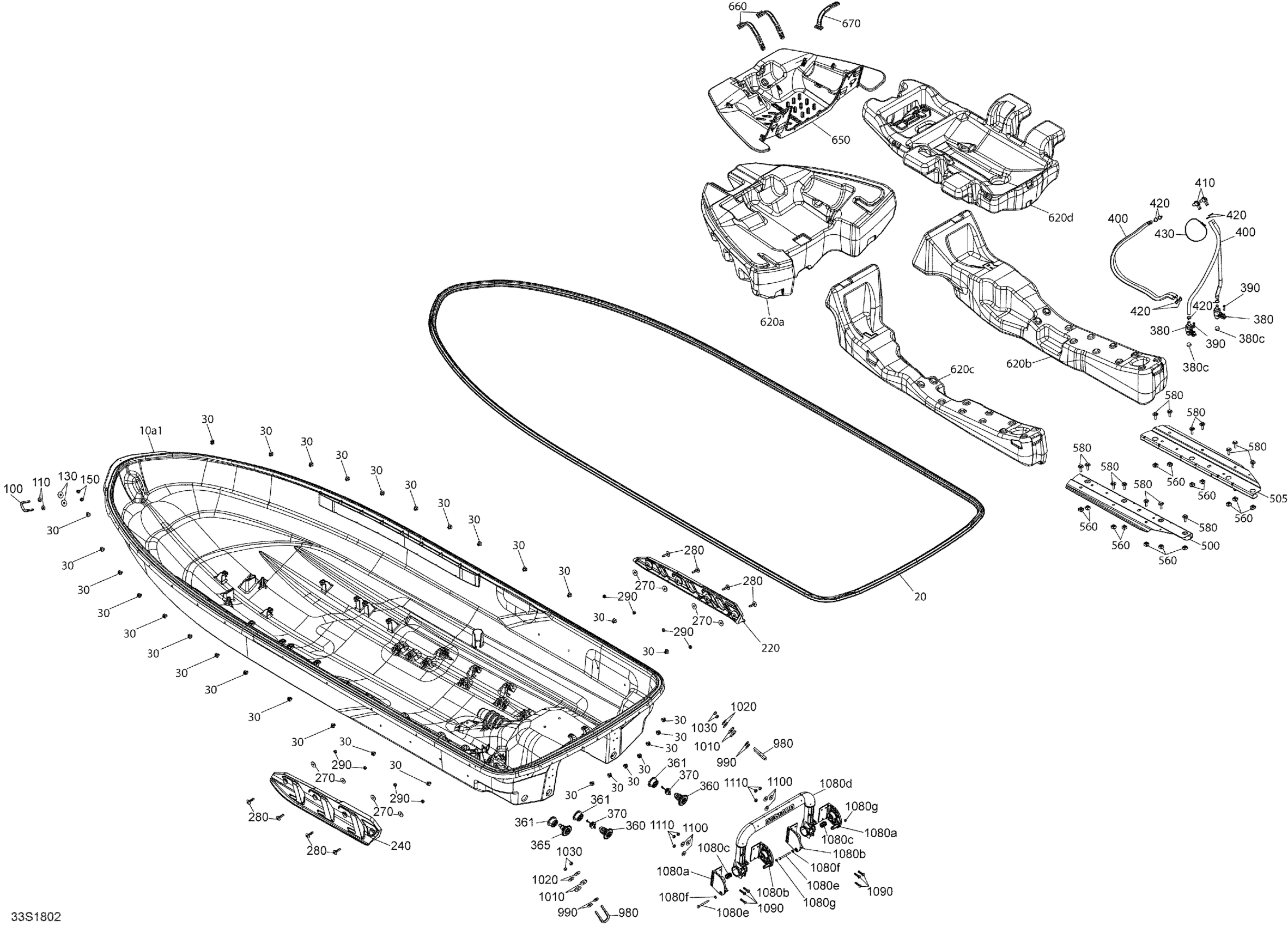

Sea-doo WAKE 155, 2018 Hull WAKE - 1500 NA 4-TEC Diagram

#

Description
Price

10

Drilled Hull | Includes 10 To 10a

295501189

$2,134.30

10a

Hull Insert Kit | Includes 10a to 10a3

295501139

$34.42

10a1

Torx Screw M6 X 20

250000711

$2.64

20

Seal

292001940

$58.18

30

Insert

291003793

$2.44

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220

RH Sponson

292001953

$53.27

240

LH Sponson

292001954

$63.67

270

Flat Washer 8 mm, Stainless

250200175

$1.29

280

Torx Screw M8 X 35

250000697

$3.25

290

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

Drain Ass'y

292001580

$12.86

361

Plastic Nut

292001825

$6.37

365

Drain Neck Ass'y

292001317

$21.42

370

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

380

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380a

Floating Ball

293830080

$5.56

390

Hex. Screw 10-14 X 7/8”

211000023

$2.91

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

500

LH Hull Stiffener

292001943

$82.81

505

RH Hull Stiffener

292001944

$82.81

560

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

565

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

580

Hexagonal Screw M8 X 30

250000888

$3.00

585

Hexagonal Screw M8 X 30

250000888

$3.00

600

Lower Anchorage

291002864

$11.78

610

Screw Torx M6.81 X 30

250001007

$1.61

620a

Lower Front Foam

292001947

$82.81

620b

Central Foam RH

292001948

$64.15

620c

Central Foam LH

292001949

$64.15

620d

Fuel Tank Foam

292001950

$93.25

650

Trunk Shield

292001868

$39.52

660

Strap

269502417

$14.27

670

Strap

269502417

$14.27

980

U-Clamp

292000933

$32.47

990

Flat Washer

279000336

$8.35

1000

Front Hull Stiffener

292002123

$117.88

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1080a

A Section Support

292001509

$58.47

1080b

B Section Support

292001510

$58.47

1080c

Spring

292001259

$21.42

1080d

Overmolded Bar

292001204

$122.82

1080e

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.55

1080f

Stainless Flat Washer M6

234061600

$0.25

1080g

Hex. Elastic Stop Nut M6

232561600

$0.92

1090

Truss Cone Torx Screw M6 X 30

250000924

$6.15

1100

Flat Washer M6, Stainless

234062600

$0.64

1110

Elastic Stop Nut M6, Brass

232561200

$3.51
