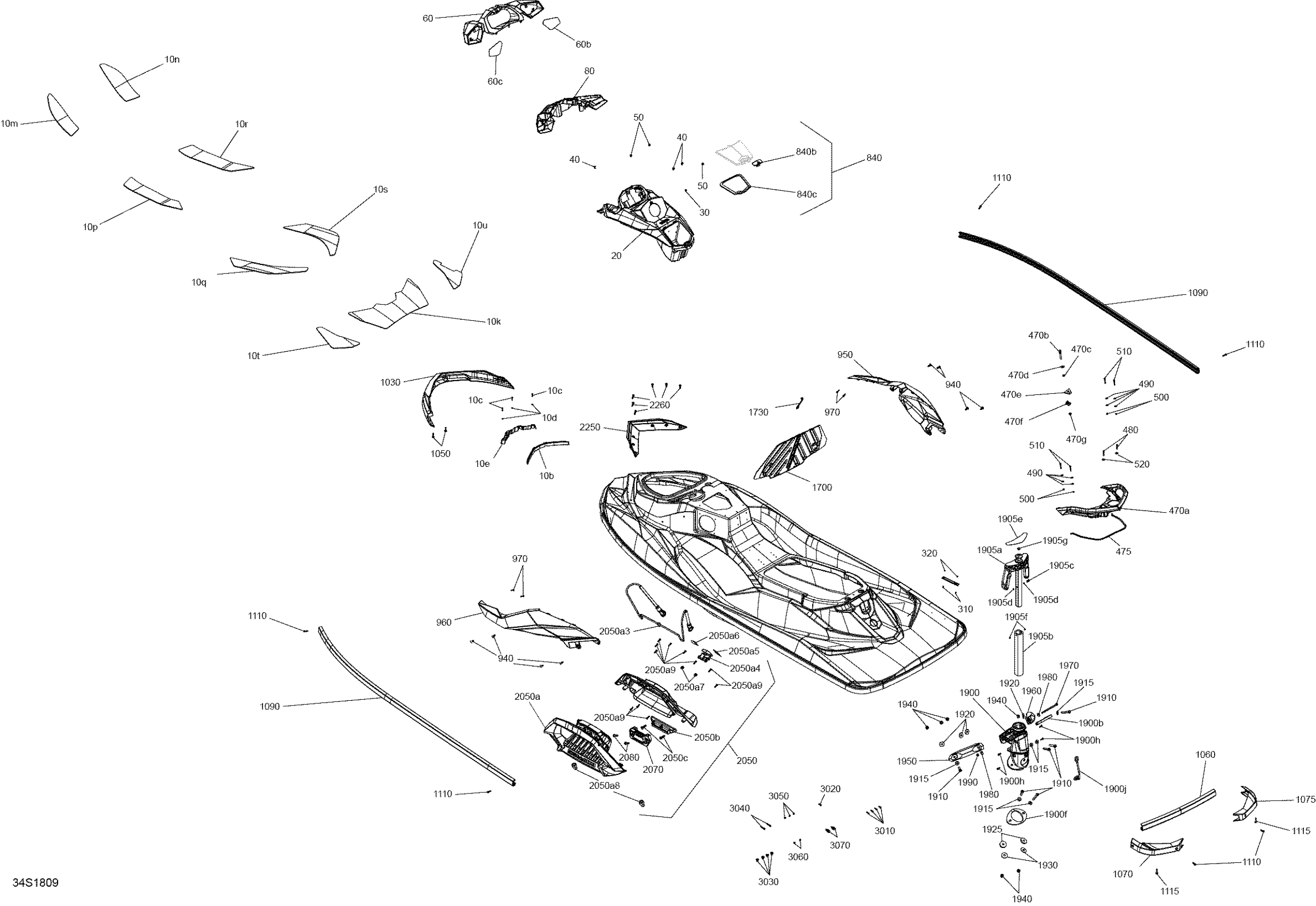

Sea-doo WAKE 155, 2018 Body WAKE - 155 Diagram

Swim Platform Carpet

291003096

$71.47

Front Carpet LH

291003058

$20.12

Front Carpet RH

291003059

$20.12

Front Center Carpet LH

291003060

$22.72

Rear Center Carpet LH

291003329

$27.92

Front Center Carpet RH

291003061

$22.72

Rear Center Carpet RH

291003330

$27.92

Rear Carpet LH

291003062

$16.22

Rear Carpet RH

291003063

$16.22

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

Console

291004276

$102.67

Rubber Bumper

293830005

$5.33

Pop Rivet 3/16"

293150123

$3.43

Pop Rivet 3/16

293150186

$1.63

Bezzel Ass'y | Includes 60 TO 60b

291004747

$105.94

Mirror RH, With Double-Face Tape

291003090

$38.97

Mirror LH, With Double-Face Tape

291003091

$38.97

Deep Black, Mirror Support

291004271

$38.32

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

Black, Rear Handle Ass'y

291004625

$113.07

Stud Seat

291003877

$38.32

Hex. Jam Nut M10

232100600

$1.85

Flat Washer 10 mm, Stainless

234002600

$1.85

Seat Stud Spacer

269002125

$7.36

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

Unavailable

Elastic Stop Nut M10, Brass

232501200

$2.16

Gasket 3000Mm Long

219704378

$22.07

Hex. Screw M6 X 50

207065060

$1.85

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Screw M6 X 40

207164060

$2.74

Flat Washer M6.6 X 22

250200022

$1.87

Deep Black, Glove Door Ass'y | Includes 840 TO 840c

269502140

$51.32

Black, Latch

264000164

$11.40

Gasket

293250236

$33.77

Black, Dart

293730006

$0.81

Black, RH Cosmetic Panel

269502335

$158.57

Black, LH Cosmetic Panel

269502336

$150.12

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Front Bumper This part replaces 291005401.

291004277

$61.72

Hexagonal Cap Screw M6 X35

250000399

$3.61

Black, Side Bumper

291004451

$47.42

Black, Corner Bumper This part replaces 291004152.

291004278

$25.97

Black, Corner Bumper This part replaces 291004153.

291004279

$25.97

Black, Side Bumper

291004451

$47.42

Screw Torx M6.81 X 30

250001007

$1.61

Hexagonal Cap Screw M6 X35

250000399

$3.61

Divider Ass'y

291004572

$81.87

Holding Strap

269502111

$14.27

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$227.47

Replacing Kit for Pylon Strap

295100740

$21.42

Seal

293250151

$8.40

Hex. Flange Screw K40 X 13

241141360

$0.56

Strap

269501299

$14.92

Molded Handle

291004766

$159.22

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

Ball Spring

269501651

$9.43

Ball 1/4"

293350062

$2.11

Warning Decal Ski Post

219905699

$9.91

Warning Decal Ski Post

219905700

$9.91

Type "U" Metallic Drive Screw

293150167

$1.46

Bumper Plug, Black

291001519

$4.28

Torx Screw M8 X 40, Stainless

250000452

$3.73

Flat Washer M8.5 x 18

293050001

$1.29

Flat Washer 8 mm, Stainless

234082600

$1.98

Rubber Washer

293830037

$2.68

Flat Washer 8 mm, Stainless

250200175

$1.29

Hex. Elastic Nut M8 Brass

232581200

$1.29

Lateral Arm LH

291002711

$25.97

Lateral Arm RH

291002712

$25.97

Hex. Screw M6 X 100

230060060

$6.08

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Wakeboard Rack

295100453

$190.42

Elastic Rope Ass'y

291002979

$35.04

Latch

291002980

$22.72

Warning WAKE

219903228

Unavailable

Rubber Bumper

293830005

$5.33

Rubber Buffer

293830119

$16.39

Flange Torx Screw K40 X 16

250000287

$1.74

Upper Anchorage

291003104

$11.78

Torx Screw Plastite M6

250000466

$5.62

Deep Black, Body Deflector

291004273

$20.77

Screw Torx M6.81 X 30

250001007

$1.61

Flange Torx Screw K40 X 16

250000287

$1.74

Torx Screw K40 X 16 | Canada/USA

250000735

$3.25

Pop Rivet 3/16"

293150123

$3.43

Hex. Flange Screw M5 X 30

207153060

$1.53

Flat Washer | XT

211200035

$0.46

Elastic Stop Nut 5 mm

232551200

$1.22

Tuflok Plastic Rivet

293150230

$1.21
