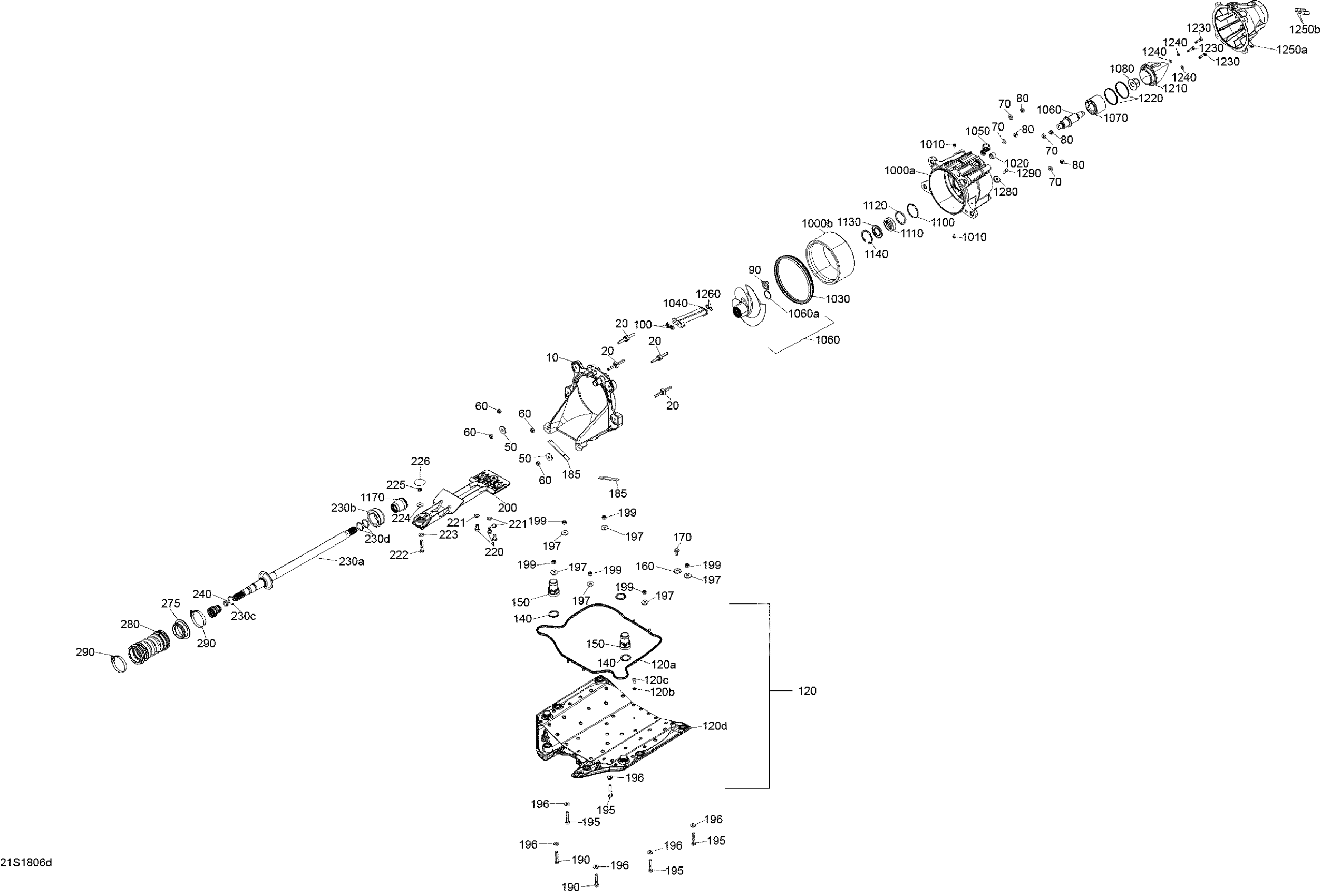

Sea-doo WAKE 155, 2018 Propulsion Wake - 155 Diagram

#

Description
Price

10

Pump Support

271001964

$41.49

20

Square Stud

250300046

$14.82

50

Flat Washer

279000336

$11.57

60

Hex. Elastic Nut M8 Brass

232581200

$2.22

70

Flat Washer M8.5 x 18

293050001

$3.07

80

Hex. Elastic Nut M8 Brass

232581200

$2.22

90

Reducer, Green This part replaces 271001586.

271002029

$16.49

100

Watertight Seal

293250084

$7.49

120

Riding Plate Ass'y | Includes 120 TO 120f

271001860

$227.49

120a

Seal

293250235

$10.07

120b

Sealing Washer

250200114

$4.44

120c

Torx Screw M6 X 14

250000384

$7.51

120d

Socket Drain Plug M6 X 12

250500005

$16.49

140

O-Ring

293300121

$8.32

150

Straight Fitting

293710166

$8.79

160

Anode Zinc

271001920

$15.99

170

Hex Screw M6 X 20

250000965

$2.11

185

Gasket, Neoprene 2000Mm Long

219704476

$15.36

190

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

195

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

196

Flat Washer M8.5 x 18

293050001

$3.07

197

Flat Washer

279000336

$11.57

199

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Pump Grate

271001969

$54.99

220

Hex. Screw M8 X 16, Scotch Grip

207381660

$1.01

221

Stainless, Flat Washer 8 mm

234081600

$0.55

222

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

223

Flat Washer M8.5 x 18

293050001

$3.07

224

Flat Washer

279000336

$11.57

225

Hex. Elastic Nut M8 Brass

232581200

$2.22

226

PROTECTOR DISK - Call your local BRP dealership

293830047

$1.99

230a

Drive Shaft

271002004

$402.49

230b

Carbon Ring Kit | Includes 280b to 280b5

295501202

$84.99

230c

C-Clip

271001575

$6.11

230d

O-Ring

293300044

$1.05

240

Drive Shaft Plug

272000173

$8.68

275

Bellow Adaptor

271002045

$7.49

280

Bellow This part replaces 271001422.

271001933

$23.49

290

Norma Clamp

293650079

$11.60

1000a

Impeller Housing

271002018

$294.99

1000b

Wear Ring

267000419

$84.99

1020

Black, Plastic Plug

267000469

$7.59

1030

Neoprene Seal

293200087

$12.63

1040

Water Outlet

271000785

$3.80

1050

Plug | Includes 370z to 370z1

267000282

$19.49

1060

Impeller Shaft

267000388

$116.49

1070

Angled Bearing This part replaces 267000030.

267000900

$80.99

1080

Elastic Flange Nut M20

250100104

$12.66

1100

O-Ring

293300090

$7.20

1110

Seal

271002071

$33.99

1120

Spacer

271001393

$8.59

1130

Oil Seal

293200089

$19.99

1140

Circlip

293370038

$8.79

1160

Impeller Ass'y | Includes 1160 To 1160a

267001019

$391.99

1160a

O-Ring

293300044

$1.05

1170

Guard

271002225

$11.99

1210

Impeller Cover

267000428

$18.49

1220

O-Ring

293300086

$3.59

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

1240

Stainless Flat Washer M6

234061600

$0.33

1250a

Venturi | With IBR

267000864

$211.99

1250b

Siphon Tube

271001885

$2.49

1260

O-Ring

293300013

$8.18

1280

Anode Zinc

271001920

$15.99

1290

Hex Screw M6 X 20

250000965

$2.11
