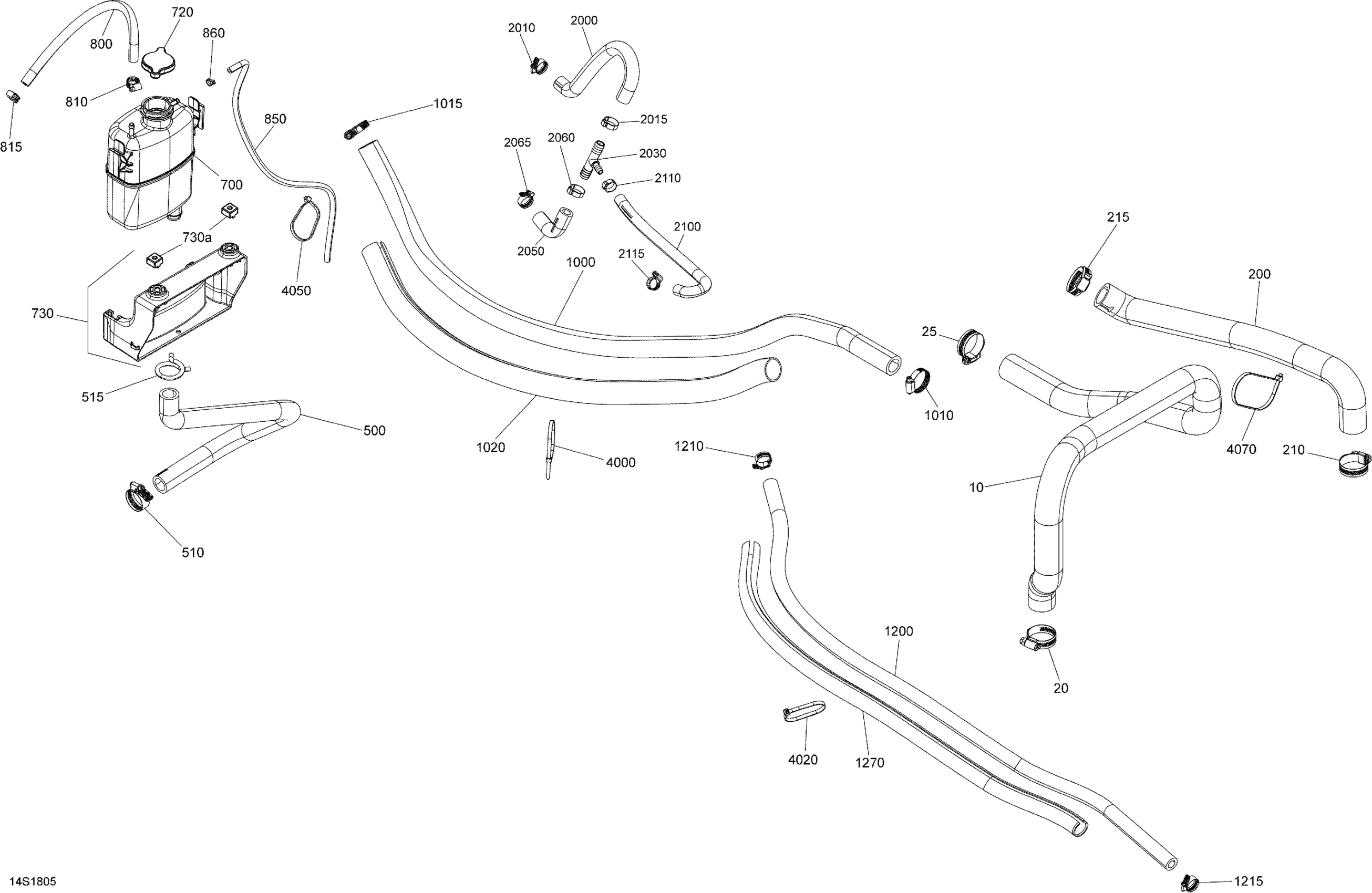

Sea-doo WAKE 155, 2018 Cooling Wake - 155 Diagram

Radiator Hose, LH

276000459

$61.16

Norma Clamp

293650245

$11.77

Norma Clamp

293650245

$11.77

RH Radiator Hose

276000248

$45.47

Norma Clamp

293650245

$11.77

Norma Clamp

293650245

$11.77

Hose, Coolant Tank Lower

276000486

$26.84

Tridon Gear Clamp

293650019

$4.81

Spring Clamp

293650115

$2.46

Coolant Tank

276000086

$87.72

Pressure Cap | Includes 720 to 720a

276000100

$20.77

Tank Holder Ass'y | Includes 730 TO 730a

291004446

$25.34

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

Tridon Gear Clamp

293650170

$1.74

Tridon Gear Clamp

293650170

$1.74

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Tie Wrap 94 mm | 4X4

293750001

$0.83

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

Tridon Gear Clamp

293650051

$3.61

Tridon Gear Clamp

293650051

$3.61

Tubing 25 MM 1000MM Long

219704402

$12.69

Was 276000001 Hose 12.5 mm

219704394

$42.87

Tridon Gear Clamp

293650172

$2.68

Tridon Gear Clamp

293650172

$2.68

Was 515175319 Tubing 22 mm

219704423

$11.84

Was 515175319 Tubing 22 mm

219704423

$11.84

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

Tridon Gear Clamp

293650172

$2.68

Oetiker Clamp

293650012

$4.94

T-Fitting

293710116

$14.27

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

Oetiker Clamp

293650012

$4.94

Tridon Gear Clamp

293650172

$2.68

Formed Hose | Without Catalyst

276000246

$14.92

Oetiker Clamp | Europe

293650030

$4.32

Tridon Gear Clamp

293650172

$2.68

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85
