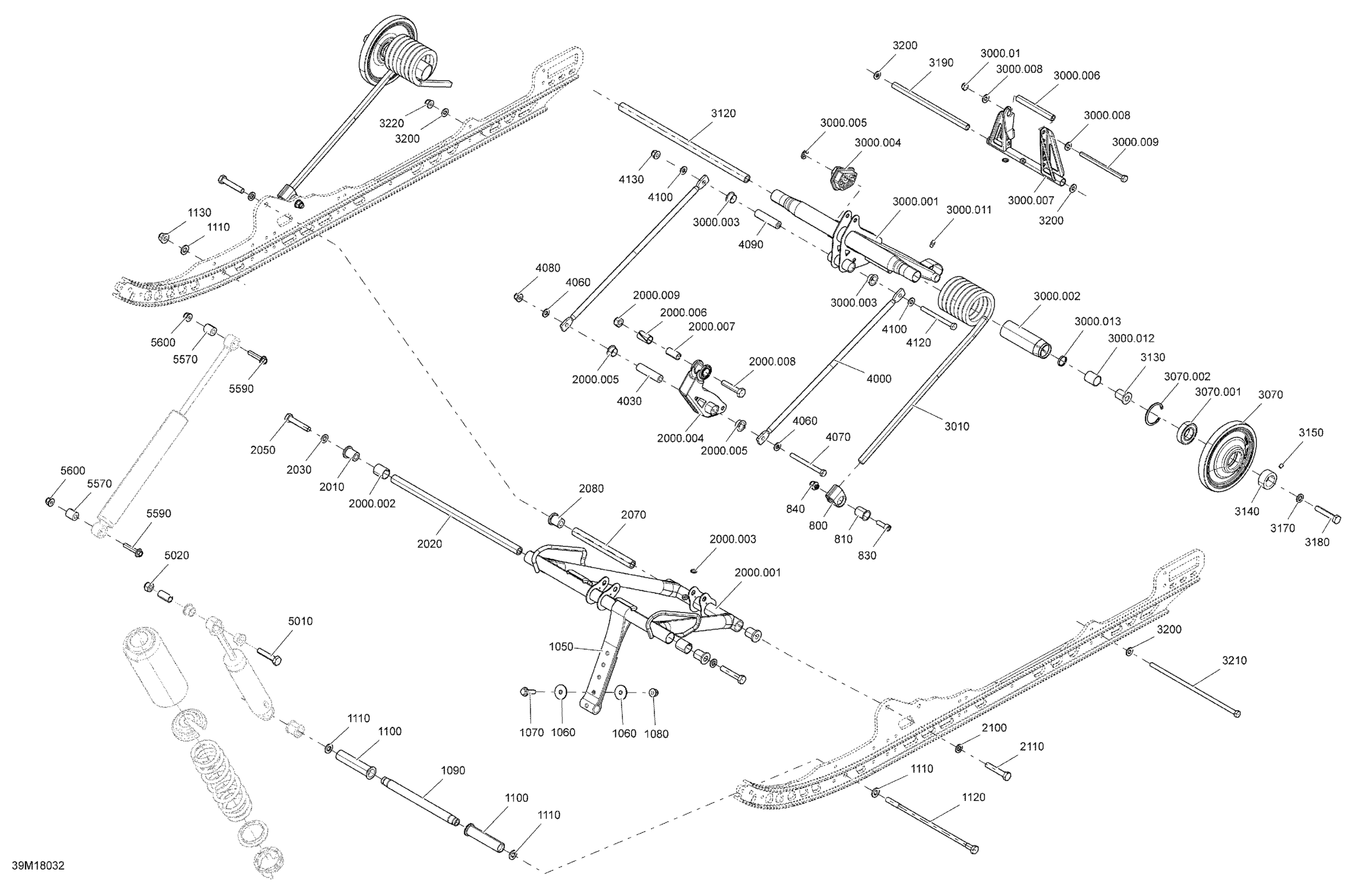

Ski-Doo TUNDRA 550F, 2018 Rear Suspension Tundra - Package Sport - Superior Diagram

#

Description
Price

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1050

Stopper Strap

503192360

$20.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503193435

$39.99

1100

Center Bushing

503191259

$11.49

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

2000.001

Front Arm | Includes 2000a to 2000b

503191752

$370.99

2000.002

Extended Bushing

503191556

$7.83

2000.003

Grease Fitting

408200700

$3.49

2000.004

Rocker

503192211

$83.99

2000.005

Swivel Bushing

503191555

$7.83

2000.006

Bushing

503193037

$16.18

2000.007

Bushing | Includes 240d to 240d1

503189282

$4.34

2000.008

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000.009

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503191262

$15.79

2020

Upper Shaft

503191215

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2070

Lower Shaft

503191279

$28.99

2080

Bushing

503189324

$14.15

2100

Flat Washer

250200143

$3.17

2110

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3000.001

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$98.49

3000.002

Bushing

572080700

$17.39

3000.003

Swivel Bushing

503191555

$7.83

3000.004

LH Cam Adjuster

503191565

$16.49

3000.004

RH Cam Adjuster

503191566

$16.49

3000.005

E-Circlip

293370013

$0.65

3000.006

Upper Axle, Pivot Arm

503144300

$11.65

3000.007

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

3000.008

Washer

503192494

$3.17

3000.009

Bolt M8, Short

732601197

$15.36

3000.01

Hex. Elastic Stop Nut M8

232581414

$0.56

3000.011

Grease Fitting

408200700

$3.49

3000.012

Extended Bushing

503191556

$7.83

3000.013

Washer

503191651

$8.32

3010

LH Spring

503192081

$67.99

3010

RH Spring

503192080

$67.99

3070

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

3070.001

Ball Bearing

503193548

$17.99

3070.002

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503191215

$38.99

3130

Bushing

503191262

$15.79

3140

Retaining Ring

503168800

$14.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Linkage Rod

503192255

$44.49

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar (Long)

503190643

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5020

Elastic Locking Nut M10

233601466

$2.11

5570

Bushing

414936000

$13.99

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
