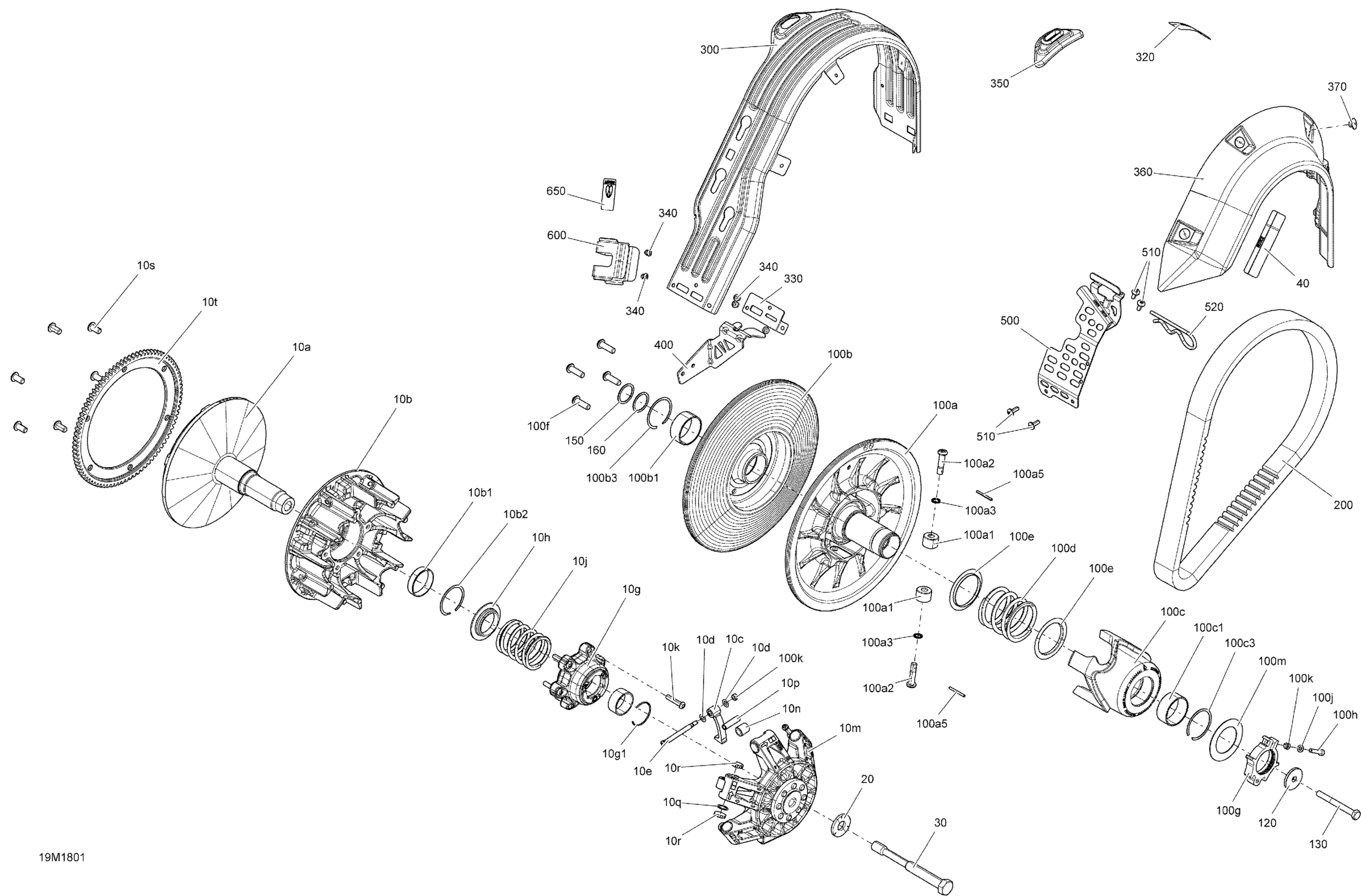

Ski-Doo TUNDRA 550F, 2018 Pulley Tundra - 550F Diagram

#

Description
Price

10a

Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.

417224097

Unavailable

10b>10b2

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$188.03

10b1

Bushing

417222758

$20.12

10b2

Circlip

293370037

$2.93

10c

Ramp 700 Ass'y This part replaces 417223557.

417223604

$62.66

10d

Thrust Washer

417223255

$1.91

10e

Ramp Axle

417223694

$4.46

10f

Nut-Stop Elastic DIN.985

417224336

$0.82

10g>10g1

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.49

10g1

Circlip

293370065

$0.93

10h

Seat Spring

417223752

$13.03

10j

Spring Clutch

417223748

$14.37

10k

Torx Screw M6 X 30

250000580

$4.87

10m

Governor Cup Ass'y

417223865

$170.12

10n

Roller

417223767

$7.15

10p

Roller Axle

417223257

$6.37

10q

O-Ring

293300185

$0.93

10r

Slider Shoe

417223919

$3.57

10s

Torx Button Head Screw M8 X 16

250000706

$1.91

10t

Crown Gear Launch

417223476

$156.69

20

Conical Spring Washer M14

250200144

$4.16

30

Pulley Drive Bolt

417300432

$41.76

40

Decal English

516005503

Unavailable

100a>100a5

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$319.37

100a1

Pulley Roller

417127016

$22.36

100a2

Pivot Stud

417127294

$13.18

100a3

Lock Washer 8 mm

250200009

$2.00

100a5

Spring Pin M3 X 30

250400063

$2.00

100b>100b3

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

100b1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100b3

Circlip

293370049

$4.57

100c>100c3

Cam Ass'y | Includes 100c to 100c3

417127367

$148.48

100c1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100c3

Circlip

293370049

$4.57

100d

Spring

417127061

$44.00

100e

Swivel Abutment

417127116

$7.82

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

100g

Calibration Ass'y

415129604

$22.49

100h

Socket Screw M5 X 25

205052544

$1.54

100j

Flat Washer M5

234051410

$0.51

100k

Elastic Stop Nut M5

232551414

$0.82

100m

Washer

417127155

$7.79

120

Strength Washer

517302322

$10.76

130

Hex. Cap Screw M8 X 75

207287544

$4.87

160

Spacer

417300265

$2.06

200

Drive Belt

417300585

$138.03

300

Belt Guard

417300382

$82.81

320

Safety Belt Guard Decal

516005509

Unavailable

330

Reinforcement

417300380

$5.01

340

Avex Rivet

390909200

$0.28

350

Guide

417300381

$8.73

360

Side Protector

417300356

$12.85

370

Pop Rivet 3/16"

293150103

$0.52

400

Front Belt Guard Bracket

417300374

$23.10

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$28.33

510

Torx Screw M5 X 14

250000742

$1.37

520

Hair Pin

114045200

$10.37

600

Bracket

517281905

$14.90

610

Avex Rivet

390909200

$0.28

650

Belt Gard Decal

516007493

$9.33
