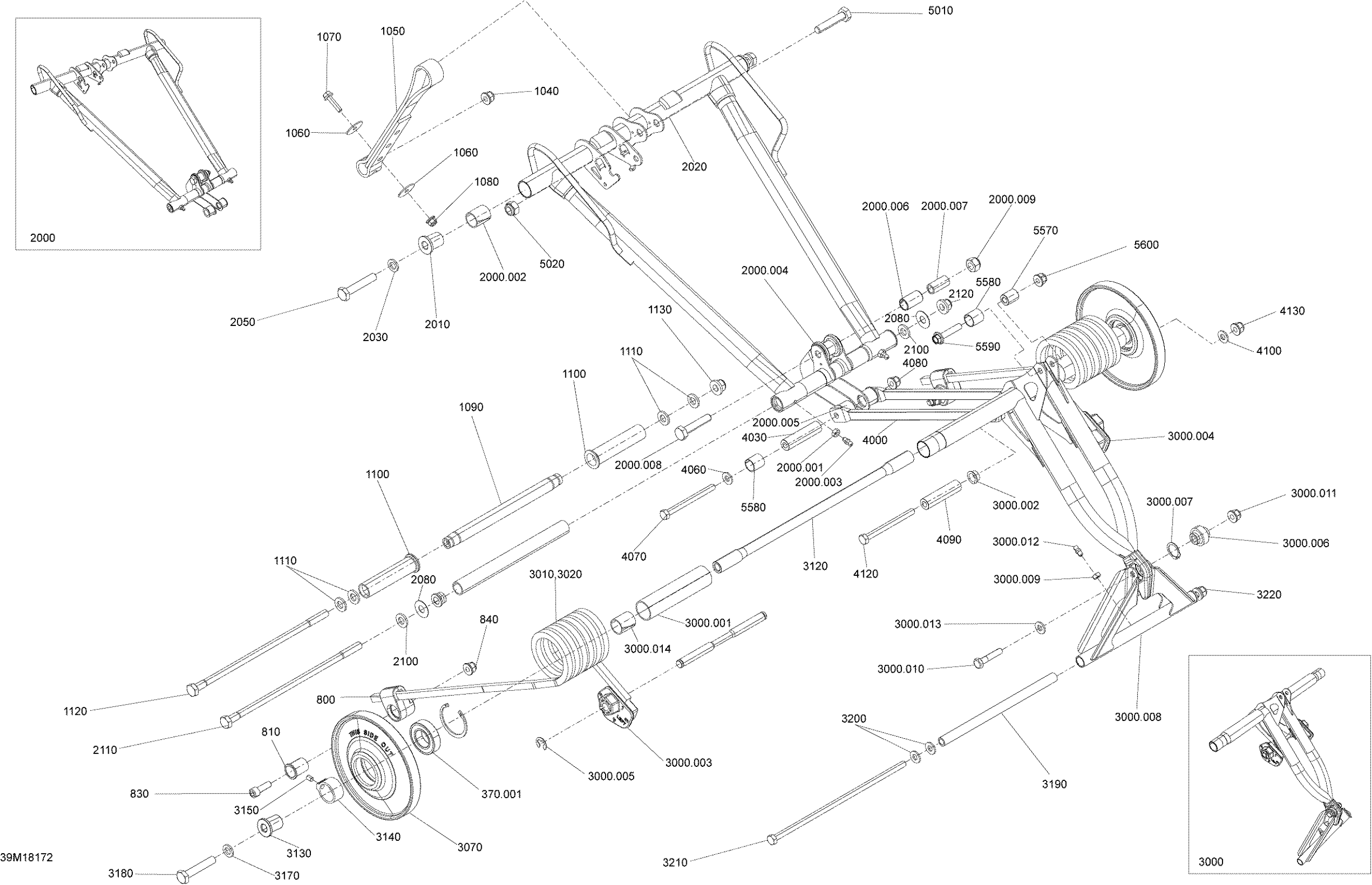

Ski-Doo SUMMIT 600 CARB, 2018 Rear Suspension Summit - 600 CARB - Package Sport - Superior Diagram

#

Description
Price

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1040

Elastic Flange Nut M8

233281466

$1.01

1050

Stopper Strap

503194679

$29.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

1090

Pivot Axle

503193435

$39.99

1100

Center Bushing

503191259

$11.49

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

2000

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$248.99

2000.001

Hexagonal Nut M6

232061404

$0.34

2000.002

Extended Bushing

503191556

$7.83

2000.003

Grease Fitting

408200700

$3.49

2000.004

Rocker

503193464

$83.99

2000.005

Swivel Bushing

503191555

$7.83

2000.006

Bushing

503193037

$16.18

2000.007

Bushing | Includes 240d to 240d1

503189282

$4.34

2000.008

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000.009

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503194970

$15.79

2020

Upper Shaft

503193441

$38.99

2030

Washer

503192496

$0.77

2050

Hex. Screw S.Grip M10 X 55

250000605

$8.11

2080

Washer

250200032

$5.08

2100

Flat Washer

250200143

$3.17

2110

Bolt M10 X 251MM

503193227

$17.29

2120

Flange Elastic Nut M10

233201466

$3.17

3000

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$444.99

3000.001

Bushing

503193218

$12.58

3000.002

Swivel Bushing

503191555

$7.83

3000.003

LH Cam Adjuster

503191565

$16.49

3000.004

RH Cam Adjuster

503191566

$16.49

3000.005

E-Circlip

293370013

$0.65

3000.006

Radial Joint

503194035

$72.99

3000.007

Inner Circlip

293370114

$4.54

3000.008

Pivot Arm

503193699

$129.99

3000.009

Hexagonal Nut M6

232061404

$0.34

3000.01

Hex. Screw M8 X 1.25 X 40

207084056

$3.17

3000.011

Elastic Flange Nut M8

233281466

$1.01

3000.012

Grease Fitting

408200700

$3.49

3000.013

Washer

503192494

$3.17

3000.014

Extended Bushing

503191556

$7.83

3010

Black, LH Spring Square

503193003

$90.99

3020

Black, RH Spring Square

503193002

$90.99

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$48.49

3070.001

Ball Bearing

503193548

$17.99

3120

Upper Shaft

503193441

$38.99

3130

Bushing

503194970

$15.79

3140

Retaining Ring

503193439

$16.49

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Washer

503192496

$0.77

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Acceleration Link Rod

503192900

$28.49

4030

Axle

503193993

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle

503193993

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5020

Elastic Locking Nut M10

233601466

$2.11

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
