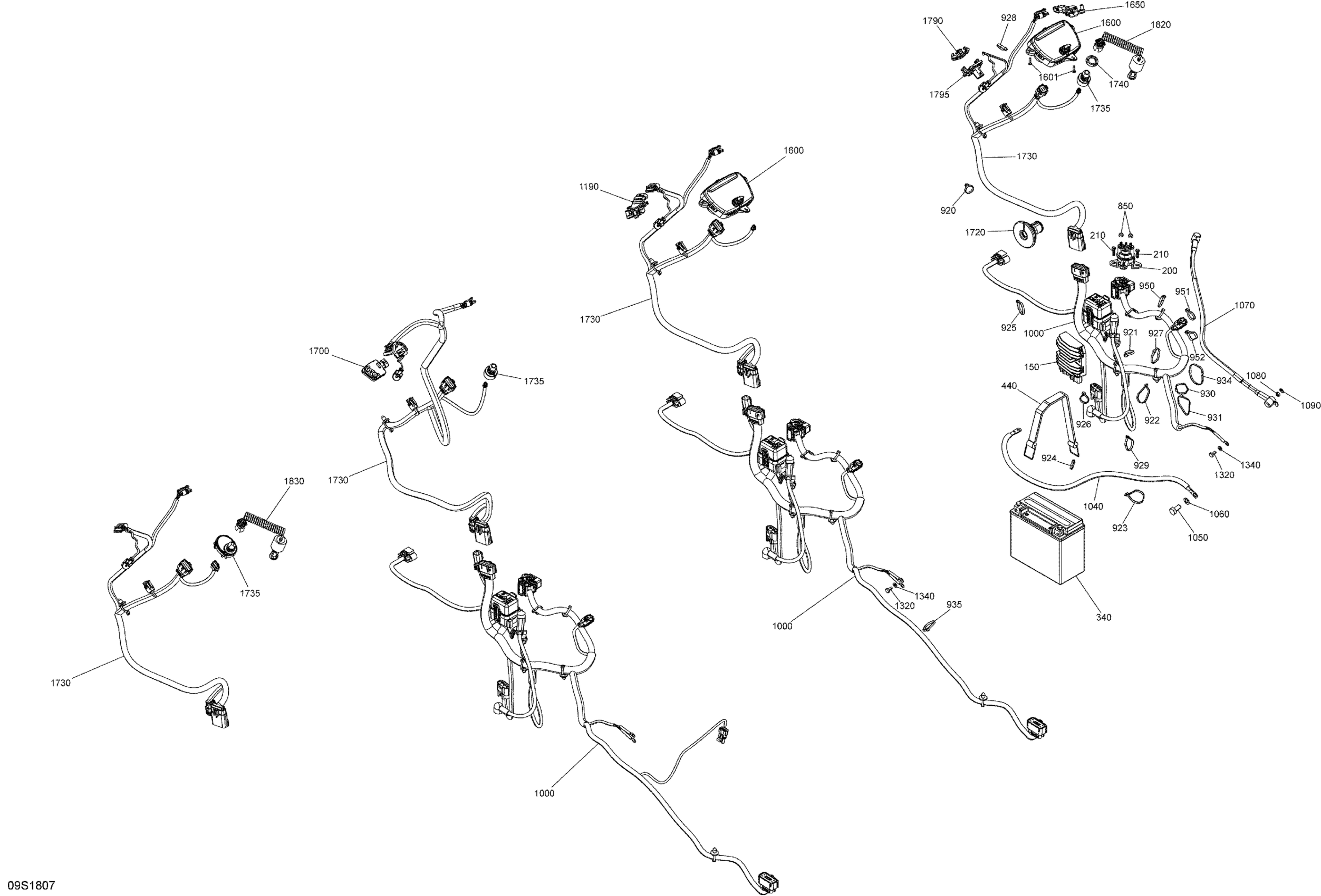

Sea-doo Spark 900 ACE, 2018 Electrical Spark Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

210

Hex. Flange Screw K50 X 20

241152060

$1.57

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

340a

Battery Bolt Kit

250000282

$2.95

440

Fuel Tank Strap

293850093

$16.87

850

Elastic Stop Nut M6, Brass

232561200

$3.51

920

Tie-Rap 180 mm

414115200

$0.09

921

Tie-Rap 180 mm

414115200

$0.09

922

Tie-Rap 180 mm

414115200

$0.09

923

Tie-Rap 180 mm

414115200

$0.09

924

Tie-Rap 180 mm

414115200

$0.09

925

Tie-Rap 180 mm

414115200

$0.09

926

Tie-Rap 180 mm

414115200

$0.09

927

Tie-Rap 180 mm

414115200

$0.09

928

Tie-Rap 180 mm

414115200

$0.09

929

Tie-Rap 180 mm

414115200

$0.09

930

Tie-Rap 180 mm

414115200

$0.09

931

Tie-Rap 180 mm

414115200

$0.09

934

Tie-Rap 180 mm

414115200

$0.09

934

Tie-Rap 180 mm

414115200

$0.09

935

Tie-Rap 180 mm

414115200

$0.09

935

Tie-Rap 180 mm

414115200

$0.09

950

Tie-Rap 180 mm

414115200

$0.09

952

Tie-Rap 180 mm

414115200

$0.09

1000

Main Harness | Package Base With IBR

278003422

$600.57

1000

Main Harness | Package Base With IBR

278003422

$600.57

1000

Main Harness | Package Base With IBR

278003422

$600.57

1000

Main Harness | Package Base With IBR

278003422

$600.57

1000

Main Harness | Package Base

278003423

$600.57

1000

Main Harness | Package Base

278003423

$600.57

1000

Main Harness | Package Trixx

278003470

$506.32

1040

Ground Cable

278003271

$31.17

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

1060

Flat Washer 10 mm, Stainless

234000600

$1.07

1070

Starter Cable

278003268

$55.94

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1600

LCD Gauge | Models without iBR

278003404

$573.85

1600

LCD Gauge

278003864

$499.82

1601

Flange Torx Screw K40 X 16

250000287

$1.74

1650

Throttle Position Sensor

278002283

$94.22

1700

Switch

278002604

$101.37

1720

Cable Grommet

293720092

$10.28

1730

Steering Harness Ass'y

278003349

$245.67

1730

Steering Harness Ass'y

278003593

Unavailable

1730

Steering Harness Ass'y

278003594

Unavailable

1730

Steering Harness Ass'y

278003595

Unavailable

1731

Mount Dart

293730040

$0.86

1735

Emergency Switch Ass'y, NOT RFID

278002677

$42.87

1735

Emergency Switch Ass'y, NOT RFID

278002677

$42.87

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1790

O.T.A.S Actuator

278003537

$33.12

1795

O.T.A.S. Sensor

278003008

$86.42

1820

Safety Lanyard Ass'y, RFID

278003400

$58.47

1820

Safety Lanyard Ass'y, NOT RFID

278003410

$58.47

1820

Safety Lanyard Ass'y, NOT RFID

278003410

$58.47

1830

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47
