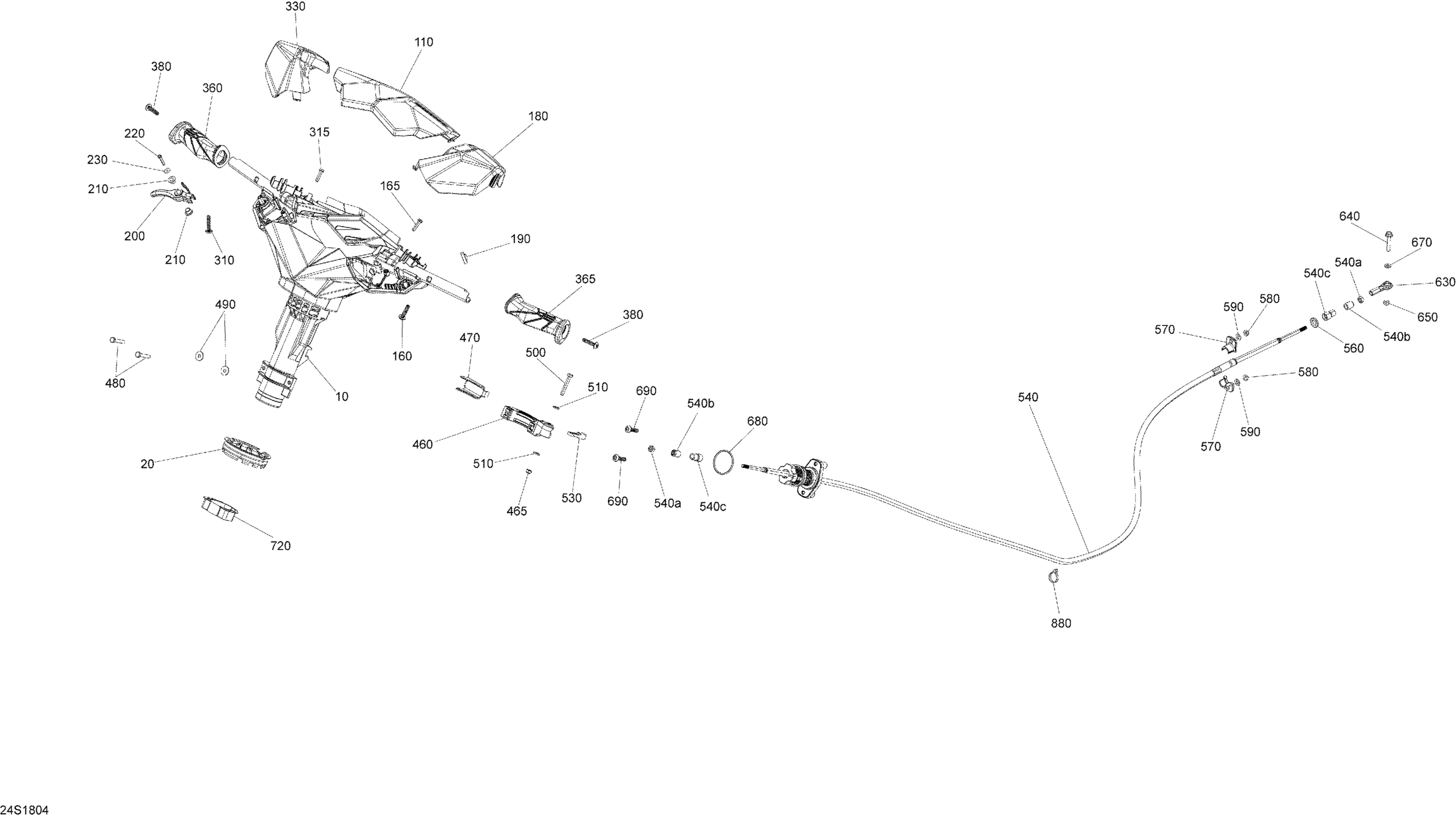

Sea-doo Spark 900 ACE, 2018 Steering Spark - 900 ACE Diagram

#

Description
Price

10

Steering

277001952

$222.49

20

Wear Ring

277001874

$12.17

110

Bright White, Steering Pad

277001786

$28.99

160

Screw Torx M6.81 X 30

250001007

$2.54

165

Hex. Screw 10-14 X 7/8”

211000023

$3.59

180

Deep Black, LH Cover

277001787

$19.99

190

Red, Knob Switch

277001887

$9.69

200

Throttle Handle

277001944

$38.99

210

Bushing

293900091

$4.52

220

Hex. Flange Screw K40 X 25

241142560

$2.64

230

Flat Washer 4 mm, Stainless

234042600

$1.15

310

Screw Torx M6.81 X 30

250001007

$2.54

315

Hex. Screw 10-14 X 7/8”

211000023

$3.59

330

Deep Black, RH Cover

277001788

$19.99

360

Deep Black, RH Handle Grip

277001946

$20.99

365

Deep Black, LH Handle Grip

277001958

$20.99

380

Screw Torx M6.81 X 30

250001007

$2.54

460

Support Ass'y | Includes 460 to 460b

277002179

$22.49

465

Elastic Stop Nut M6, Brass

232561200

$4.23

470

Spacer

277001654

$15.99

480

Hex. Screw M6 X 35

207163560

$1.49

490

Flat Washer M6, Stainless

234062600

$0.77

500

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540c

277002065

$259.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540c

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Elastic Stop Nut M6, Brass

232561200

$4.23

590

Stainless Flat Washer M6

234061600

$0.33

630

Ball Joint

277000775

$51.99

640

Hex. Screw M6 X 35

207663560

$2.00

650

Elastic Stop Nut M6, Brass

232561200

$4.23

670

Stainless Flat Washer M6

234061600

$0.33

680

O-Ring

293300176

$1.36

690

Screw Torx M6.81 X 30

250001007

$2.54

720

Wear Ring

277002318

$15.99

880

Tie-Rap 180 mm

414115200

$0.11
