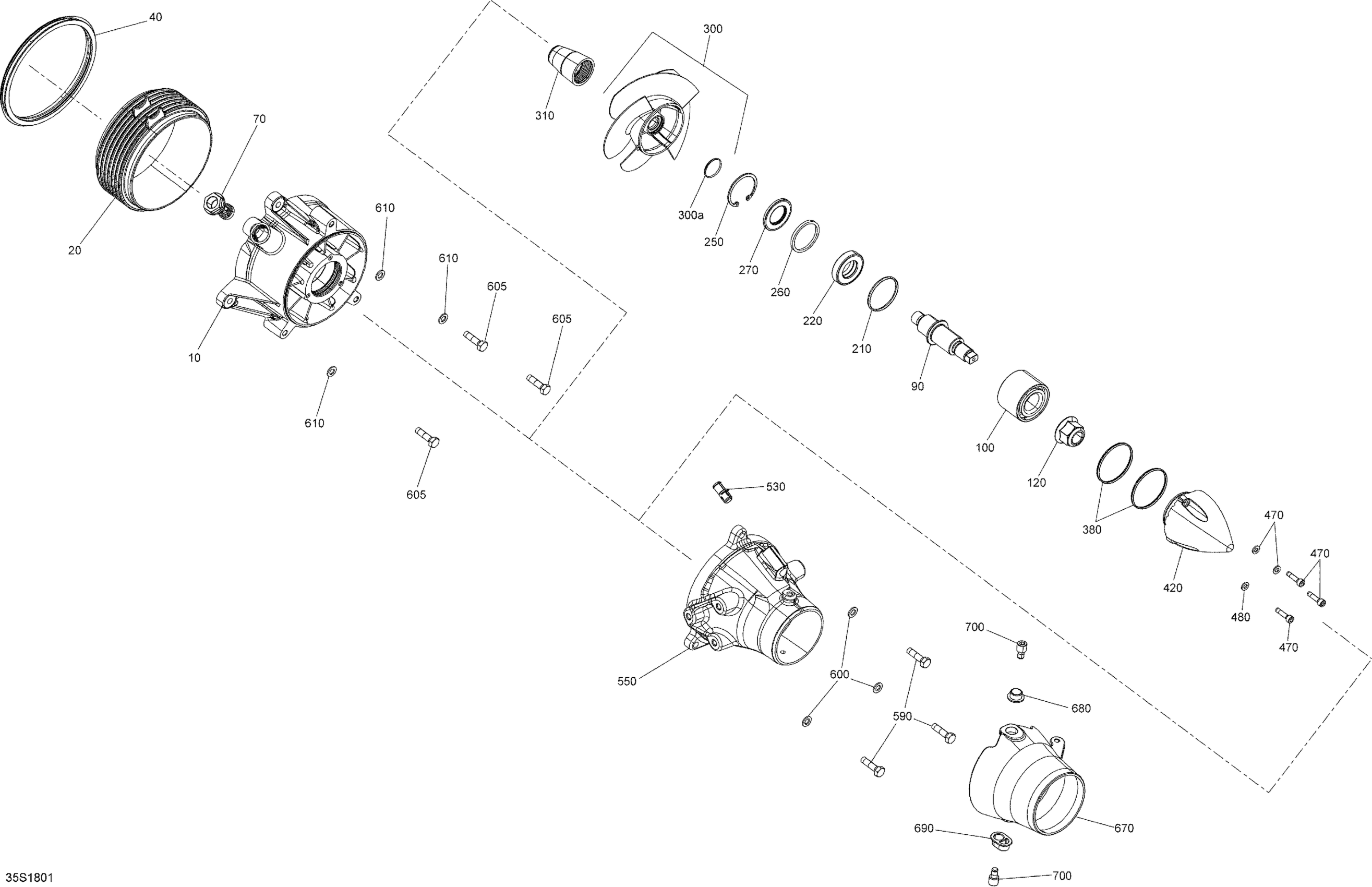

Sea-doo Spark 900 ACE, 2018 Pump Spark Diagram

#

Description
Price

10

Impeller Housing

267000856

$279.99

20

Wear Ring

267000925

$81.49

40

Neoprene Seal

293200134

$17.49

70

Plug | Includes 370z to 370z1

267000282

$19.49

90

Impeller Shaft

267000581

$116.49

100

Conical Bearing

267000583

$76.99

120

Elastic Flange Nut M20

250100104

$12.66

210

O-Ring

293300090

$7.20

220

Seal

271002071

$33.99

250

Circlip

293370038

$8.79

260

Spacer

271001393

$8.59

270

Oil Seal

293200089

$19.99

300

Impeller Ass'y | Includes 1160 to 1160c

267001070

$391.99

300a

O-Ring

293300044

$1.05

310

Boot Impeller | Includes 1170 to 1170b

267000829

$22.49

380

O-Ring

293300096

$1.01

420

Impeller Cover

267000769

$20.99

470

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

480

Stainless Flat Washer M6

234061600

$0.33

530

Siphon Tube

267000782

$6.29

550

Venturi

267000909

$194.99

590

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

600

Flat Washer M8, Stainless

234080600

$1.48

605

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

610

Flat Washer M8, Stainless

234080600

$1.48

670

Nozzle

267000705

$77.99

680

Venturi Bushing

293900007

$5.45

690

Plastic Bushing

293900010

$9.59

700

Socket Head Screw M8 X 13

268000141

$9.17
