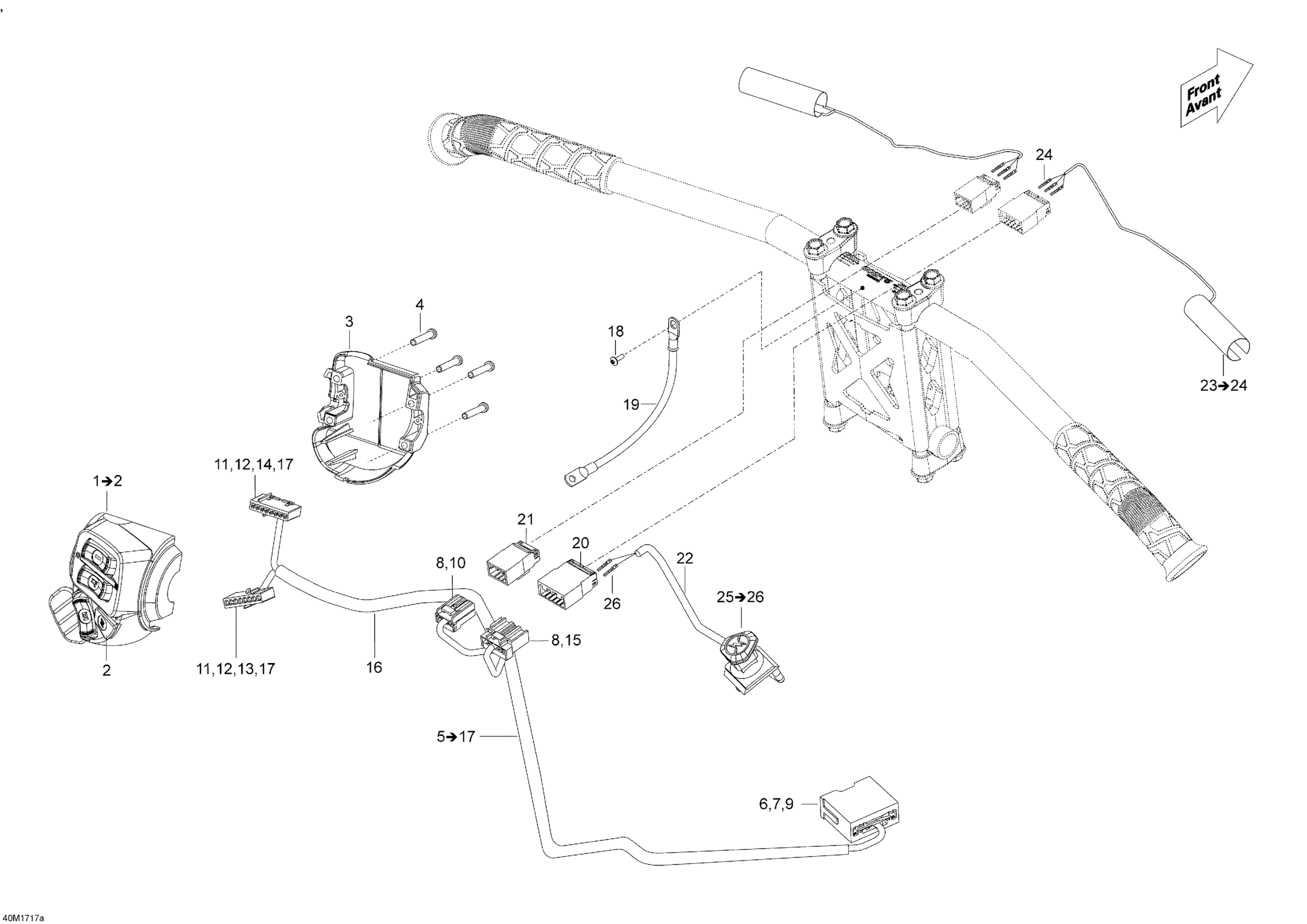

Ski-Doo SKANDIC 550F, 2018 Steering Wiring Harness - 550F 2018 Diagram

#

Description
Price

1

Switch Housing

515177028

$129.07

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Switch Housing Plate

515175926

$17.13

4

Torx Screw #8-18

250000263

$0.99

5

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$103.70

6

Male Terminal

515175232

$1.45

7

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

8

Female Terminal

515175231

$4.00

9

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

10

Female Terminal Housing, 6 Circuits

515175543

$8.31

11

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

12

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

13

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

14

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

15

Female Terminal Housing, 8 Circuits

515175819

$7.24

16

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

17

Female Terminal

515175941

$2.40

18

Pan Screw Forming, 7500C

250000690

$2.00

19

Ground Cable

515177668

Unavailable

20

Male Terminal Housing, 8 Circuits

515175817

$8.31

21

Male Terminal Housing, 6 Circuits

515175662

$8.31

22

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

23

Heating Element

506152467

$36.54

24

Male Terminal

515175232

$1.45

25

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

26

Male Terminal

515175232

$1.45
