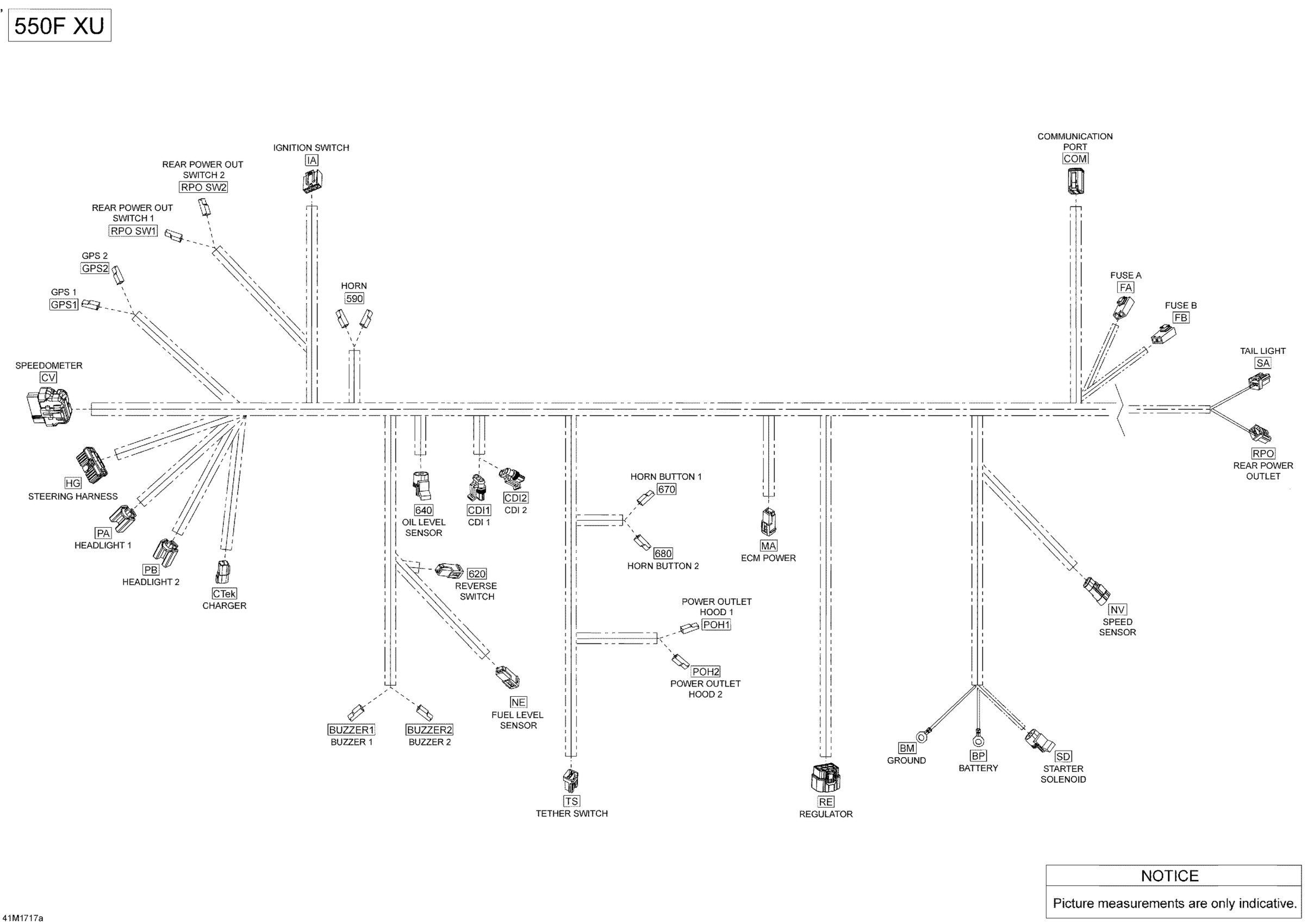

Ski-Doo 1- SKANDIC 550F, 2018 10- Electrical Harness - 550F Diagram

#

Description
Price

1

Main Harness

515177505

$369.99

2

Tubing 6 Mm 3000Mm Long

219704425

$13.75

2

Was 409901700 Tubing (9 mm)

219704399

$84.99

2

Tubing 10 MM 1000MM Long

219704407

$2.79

2

Was 409901800 Tubing (13 mm)

219704400

$14.49

2

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2

Was 409901600 Tubing 19mm

219704398

$95.99

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

$15.99

3

Not Available As Spare Part - Friction Washer

Unavailable

590

Female Housing, 2 Circuits

515175658

$16.18

590

Female Terminal

515175231

$4.39

620

Female Terminal Housing, 2 Circuits

515176296

$5.89

620

Female Terminal

515175231

$4.39

640

Male Connector, 2 Circuits

278001113

$16.86

640

Female Terminal

278001114

$3.19

670

Female Terminal Housing, 1 Circuit

409010400

$7.62

670

Female Terminal

409010100

$5.61

680

Female Terminal Housing, 1 Circuit

409010400

$7.62

680

Female Terminal

409010100

$5.61

BM

Open Barrel

278000992

$2.21

BP

Open Barrel

278000992

$2.21

BUZZER1

Female Terminal Housing, 1 Circuit

409010400

$7.62

BUZZER1

Female Terminal

409010100

$5.61

BUZZER2

Female Terminal Housing, 1 Circuit

409010400

$7.62

BUZZER2

Female Terminal

409010100

$5.61

CDI1

Female Housing, 4 Circuits

409209700

$16.18

CDI1

Female Terminal

278001014

$3.28

CDI1

Wire Seal

278001013

$3.28

CDI2

Female Housing, 3 Circuits

409209600

$35.99

CDI2

Female Terminal

278001014

$3.28

CDI2

Wire Seal

278001013

$3.28

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

CTek

Male Lock, 2 Circuits

278001672

$3.49

CTek

Male Terminal

515175568

$9.12

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

BLOCK - Call your local BRP dealership

515175804

Unavailable

CV

LOCK - Call your local BRP dealership

515175805

Unavailable

CV

Female Terminal

515175806

$0.99

CV

Plug

515175812

$2.19

CV

Female Housing

710000399

$16.49

FA

Female Terminal

409004200

$4.55

FA

Fuse Holder

409004000

$8.09

FA

Clip

710000992

$4.29

FA

Not Available As Spare Part - Friction Washer

Unavailable

FB

Female Terminal

409004200

$4.55

FB

Fuse Holder

409004000

$8.09

FB

Clip

710000992

$4.29

FB

Not Available As Spare Part - Friction Washer

Unavailable

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.62

GPS1

Female Terminal

409010100

$5.61

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.62

GPS2

Female Terminal

409010100

$5.61

HG

Female Terminal Housing, 13 Circuits

515175350

$14.24

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

IA

Female Terminal Housing, 4 Circuits

710000272

$10.99

IA

Lock, 4 Circuits

710000273

$9.59

IA

Female Terminal

710000274

$9.59

MA

Female Terminal Housing, 2 Circuits

515175670

$8.39

MA

Female Lock, 2 Circuits

515175675

$4.55

MA

Female Terminal

278000632

$2.09

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NE

Male Terminal

515175232

$1.58

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

POH1

Female Terminal Housing, 1 Circuit

409010400

$7.62

POH1

Female Terminal

409010100

$5.61

POH2

Female Terminal Housing, 1 Circuit

409010400

$7.62

POH2

Female Terminal

409010100

$5.61

RE

Connector

515176530

$30.49

RE

Terminal

515176531

$10.74

RE

Seal

515176594

$7.86

RE

Lock

515176681

$20.99

RPO

Male Housing, 3 Circuits

515175494

$16.18

RPO

Male Terminal

515175232

$1.58

RPO SW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

RPO SW1

Female Terminal

409010100

$5.61

RPO SW2

Female Terminal Housing, 1 Circuit

409010400

$7.62

RPO SW2

Female Terminal

409010100

$5.61

SA

Female Housing, 3 Circuits

515175495

$16.18

SA

Female Terminal

515175231

$4.39

SD

Male Connector, 2 Circuits

278001113

$16.86

SD

Female Terminal

278001114

$3.19

TS

Female Terminal Housing, 2 Circuits

515176296

$5.89

TS

Female Terminal

515175231

$4.39
