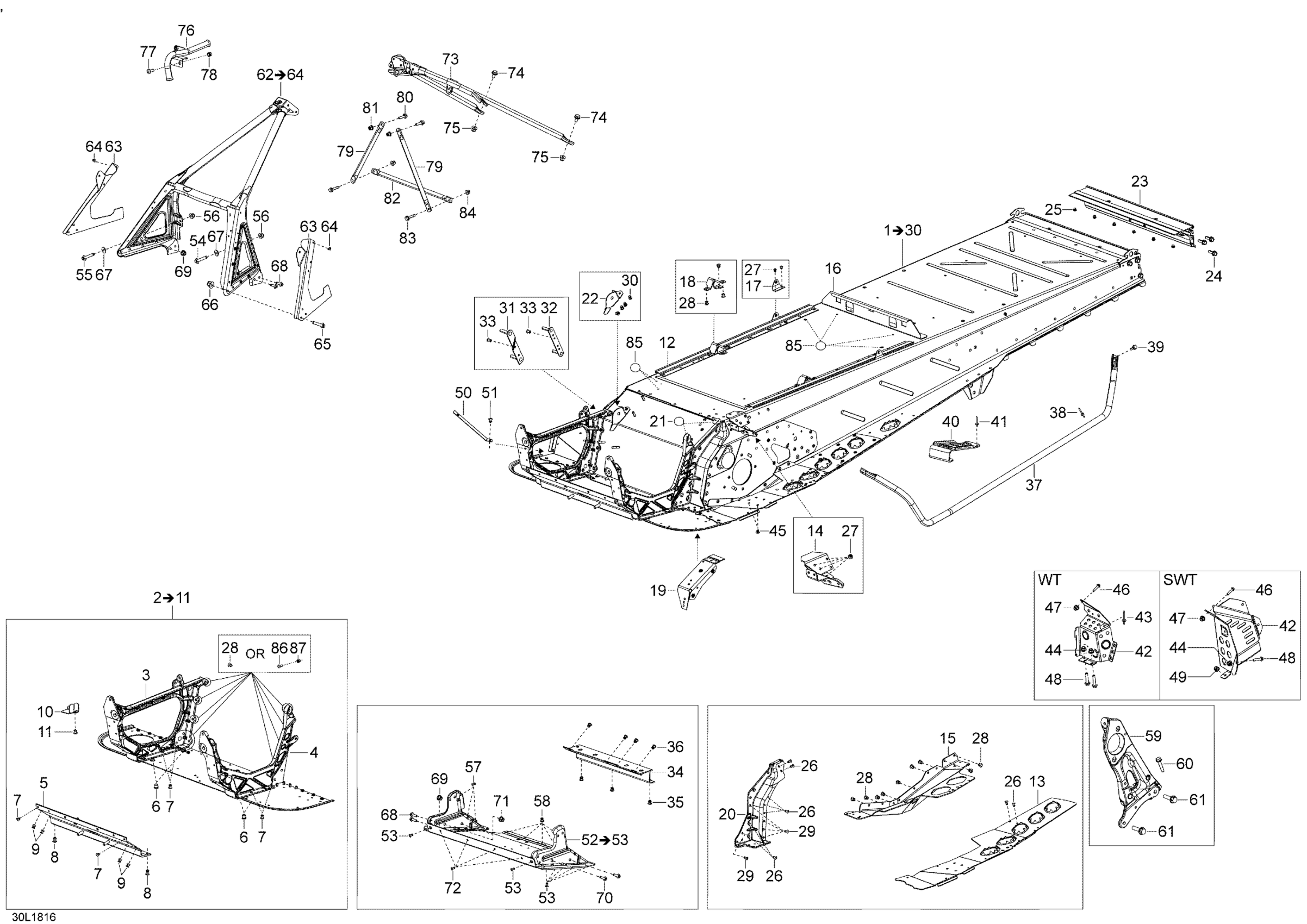

Ski-Doo SKANDIC 550F, 2018 Frame Skandic - 550F Diagram

#

Description
Price

1

FRAME XU 552 FC SC-5 BLACK - Call your local BRP dealership | Includes 10 to 10aw

518329715

Unavailable

1

Frame | Includes 10 to 10ar

518329722

Unavailable

2

Module E | Includes 10a to 10n

518328817

$855.94

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Muffler Support

518328433

$16.39

11

Rivet Hucklok

293150163

$2.73

12

Fastening rail

518326107

$14.90

13

LH Footrest

518328821

$81.31

13

Footrest LH | Model SWT

518329380

Unavailable

13

RH Footrest

518328822

$81.31

13

Footrest RH | Model SWT

518329381

Unavailable

14

Fastening Bracket

605355235

Unavailable

14

Fastening Bracket

518327884

$24.60

15

LH Drive Axle Cover

518328016

$186.54

15

LH Drive Axle Cover

518328014

$186.54

15

RH Drive Axle Cover

518328017

$186.54

15

RH Drive Axle Cover

518328015

$186.54

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

16

TUNNEL SUPPORT - Call your local BRP dealership

518327003

Unavailable

17

Seat Box Bracket

518329164

Unavailable

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

Clinch Nut plate

518326430

$44.75

19

CLINCH NUT PLATE - Call your local BRP dealership

518328096

Unavailable

20

LH Frame Corner

518325524

$50.72

20

LH Frame Corner

518325643

$50.72

20

RH Frame Corner

518328024

$50.72

20

RH Frame Corner

518325644

$50.72

21

Adhesive Patch

518325560

$4.21

22

RH Support

518326520

$12.42

23

Rear Profile

518328748

$211.16

23

Rear Profile

518328749

$211.16

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

25

Hemlock Rivet, 6.4 mm

293150174

$6.24

26

Avex Rivet

390909100

$0.28

27

Avex Rivet

390909200

$0.28

28

Hemlock Rivet, 6.5 mm

293150119

$3.88

29

Rivet

293150183

$2.00

30

Hemlock Rivet, 6.5 mm

293150096

$3.07

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

Engine Support

518326719

$44.00

35

Rivet Hucklok

293150163

$2.73

36

Avex Rivet

390909200

$0.28

37

LH Footboard Support Tube

518326963

$123.10

37

LH Footboard Support Tube

518327595

$79.07

37

RH Footboard Support Tube

518326964

$123.10

37

RH Footboard Support Tube

518327596

$79.07

38

Avex Rivet

390909100

$0.28

38

Avex Rivet

390909100

$0.28

39

Hex. Flange Screw M6 x 20

207662056

$0.96

40

Black Rear Footrest

520001208

$17.88

41

Rivet 3/16"

293150102

$0.69

42

Black, LH Toe Hook

518328819

$92.51

42

Black, LH Toe Hook

518328921

$69.37

42

Black, RH Toe Hook

518328820

$92.51

42

Black, RH Toe Hook

518328922

$69.37

43

Avex Rivet

390909200

$0.28

44

Clinch Nut M6 Hexsert

605636003

$4.00

44

Clinch Nut M6 Hexsert

605636003

$4.00

45

Black, Dart

414644300

$0.90

46

Hex. Flange Screw M6 x 20

207662056

$0.96

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

48

Torx Head Screw M6 X 16

250000717

$2.00

48

Torx Head Screw M6 X 16

250000717

$2.00

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

50

Spring Bracket

514054846

$4.21

51

Avex Rivet

390909200

$0.28

52

S Module | Includes 300 to 300a

518326213

$752.96

53

Avex Rivet

390909200

$0.28

54

Hex. Flange Screw M6 X 25

207662544

$0.61

55

Hex. Flange Screw M6 X 25

207662544

$0.61

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

57

Avex Rivet

390909100

$0.28

58

Avex Rivet

390909200

$0.28

59

Pulley Support

518328434

$126.84

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

61

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

62

Front Member Ass'y | Includes 700 to 700d

518327004

$485.04

63

LH Bumper Fastener

502007077

$51.46

63

RH Bumper Fastener

502007078

$51.46

64

Avex Rivet

390909200

$0.28

65

Hex. Flange Screw M6 X 20

207662044

$1.91

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

67

Flat Washer

224061201

$1.27

68

Hex. Flange Screw M6 X 20

207662044

$1.91

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

70

Hex. Flange Screw M6 X 20

207662044

$1.91

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

72

Avex Rivet

390909200

$0.28

73

Upper Support Tube

518329105

$184.30

74

Hex. Screw M8 X 20

207182044

$0.70

75

Hex. Elastic Stop Nut M8

232581414

$0.54

76

Tubing

512060451

$43.25

76

Guide Tube

512061157

$70.87

77

Hex. Flange Screw M6 X 25

207662544

$0.61

77

Hex. Flange Screw M6 X 25

207662544

$0.61

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

79

Upper Lateral Column Support

518325114

$20.12

80

Hex. Flange Screw M6 x 20

207662056

$0.96

81

Elastic Flange Nut M6 X 1.0

233261416

$2.00

82

Center Column Support

518325115

$20.12

83

Hex. Flange Screw M6 X 25

207662556

$4.15

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

85

Adhesive Patch

518325560

$4.21

86

Hex. Flange Screw M6 X 20

207662044

$1.91

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
