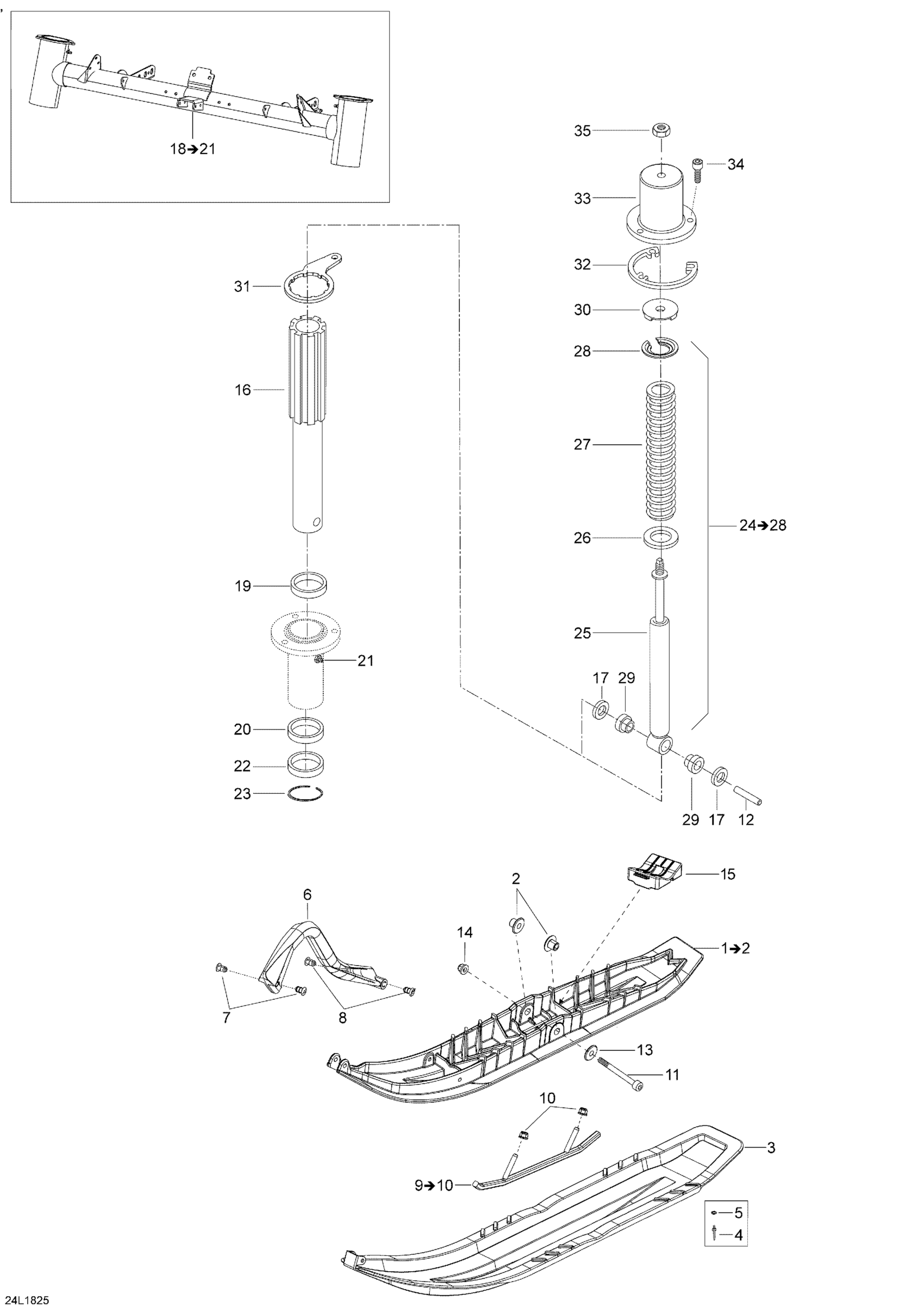

Ski-Doo SKANDIC 550F, 2018 Front Suspension And Ski Diagram

#

Description
Price

1

Black, Ski

505073227

$170.12

2

Ski Bushing

505071781

$14.90

3

DS Liner

505073448

$91.01

4

Pop Rivet

293150206

$2.00

5

Flat Washer 6 mm

234061410

$1.19

6

Black, Handle

505072976

$34.30

7

Retainer 17mm long

505071812

$4.30

8

Retainer 23mm Long

505072133

$4.88

9

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

12

Ski Axle

505073209

$12.31

13

Washer

732900049

$0.55

14

Hex. Flange Elastic Nut M10

233201414

$1.45

15

Ski Stopper

505072594

$17.13

16

Ski Leg

505073200

$281.31

17

Spacer

505072579

$7.36

18

Module Ass'y | Includes 400 to 400d

505073967

$484.30

19

Upper Cushion

414803100

$8.16

20

Lower Cushion

414803200

$11.36

21

Grease Fitting

408200700

$3.21

22

Seal Oil

505072696

$44.75

23

Circlip

505072698

$12.51

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Shock

505073046

$152.96

26

Washer

505072578

$12.18

27

Black, Spring

505072557

$64.90

27

Black, Spring

505072745

$64.90

28

Spring Stopper

505072619

$9.93

29

Cushion

572034500

$9.69

30

Rubber Bumber

605354835

$13.54

31

Steering Arm

505073823

$88.03

32

Spacer

505073983

$23.85

33

Suspension Cover LH

505072874

$125.34

33

Suspension Cover RH

505072875

$125.34

34

Socket Head Screw M8 X 20

205082044

$1.06

35

Hex. Flange Elastic Nut M10

233201414

$1.45
