Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.

417224097

Unavailable

3

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

4

Bushing

417222758

$22.49

5

Circlip

293370037

$3.19

6

Ramp 700 Ass'y This part replaces 417223557.

417223604

$69.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Thrust Washer

417223255

$2.00

9

Ramp Axle

417223694

$11.05

10

Elastic Stop Nut M5

232551414

$0.87

11

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.98

14

Seat Spring

417223752

$15.27

15

Spring Clutch

417223748

$15.35

16

Torx Screw M6 X 30

250000580

$6.08

17

Governor Cup Ass'y

417223865

$274.99

18

Roller

417223767

$11.59

19

Roller Axle

417223257

$6.99

20

O-Ring

293300185

$0.98

21

Slider Shoe

417223919

$6.83

22

Torx Button Head Screw M8 X 16

250000706

$2.00

23

Crown Gear Launch

417223476

$164.49

24

Conical Spring Washer M14

250200144

$4.44

25

Pulley Drive Bolt

417300432

$41.49

26

Decal English

516005503

Unavailable

28

Fixed Flange Ass'y

417127466

$459.99

33

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

35

Cam Ass'y

417127460

$132.99

38

Spring, White

417127243

$43.49

40

Calibration Ass'y

415129604

$21.49

41

Socket Screw M5 X 25

205052544

$1.68

42

Flat Washer M5

234051410

$0.53

43

Elastic Stop Nut M5

232551414

$0.87

44

Washer

417127155

$8.26

45

Strength Washer

517302322

$12.63

46

Hex. Cap Screw M8 X 75

207287544

$5.18

47

Spacer

417300252

$5.49

48

Spacer

417300265

$2.29

49

Shim

504112000

$8.59

50

Drive Belt

414860700

$104.99

51

Warning Decal | Europe

516003919

$8.09

52

Belt Guard

417300382

$90.99

53

Security Label, Belt Guard

516006900

Unavailable

54

Reinforcement

417300380

$7.29

55

Avex Rivet

390909200

$0.30

56

Guide

417300381

$11.99

57

Side Protector

417300356

$14.76

58

Pop Rivet 3/16"

293150103

$0.55

59

Belt Guard Bracket | Except Package SWT

417300363

$14.49

59

Belt Guard Bracket | Package SWT

417300413

$9.09

60

BELT GUARD BRACKET - Call your local BRP dealership

417300451

$31.99

61

Brake Hose Cover | Except Package SWT

518325626

$29.99

61

Brake Hose Cover | Package SWT

518327035

$13.99

62

Rivet Hucklok

293150163

$2.99

63

Hair Pin

114045200

$11.11

70

Hemlock Rivet, 6.5 mm

293150096

$3.27

64

Bracket

517281905

$18.49

65

Avex Rivet

390909100

$0.30

66

Belt Decal, English

516005511

Unavailable

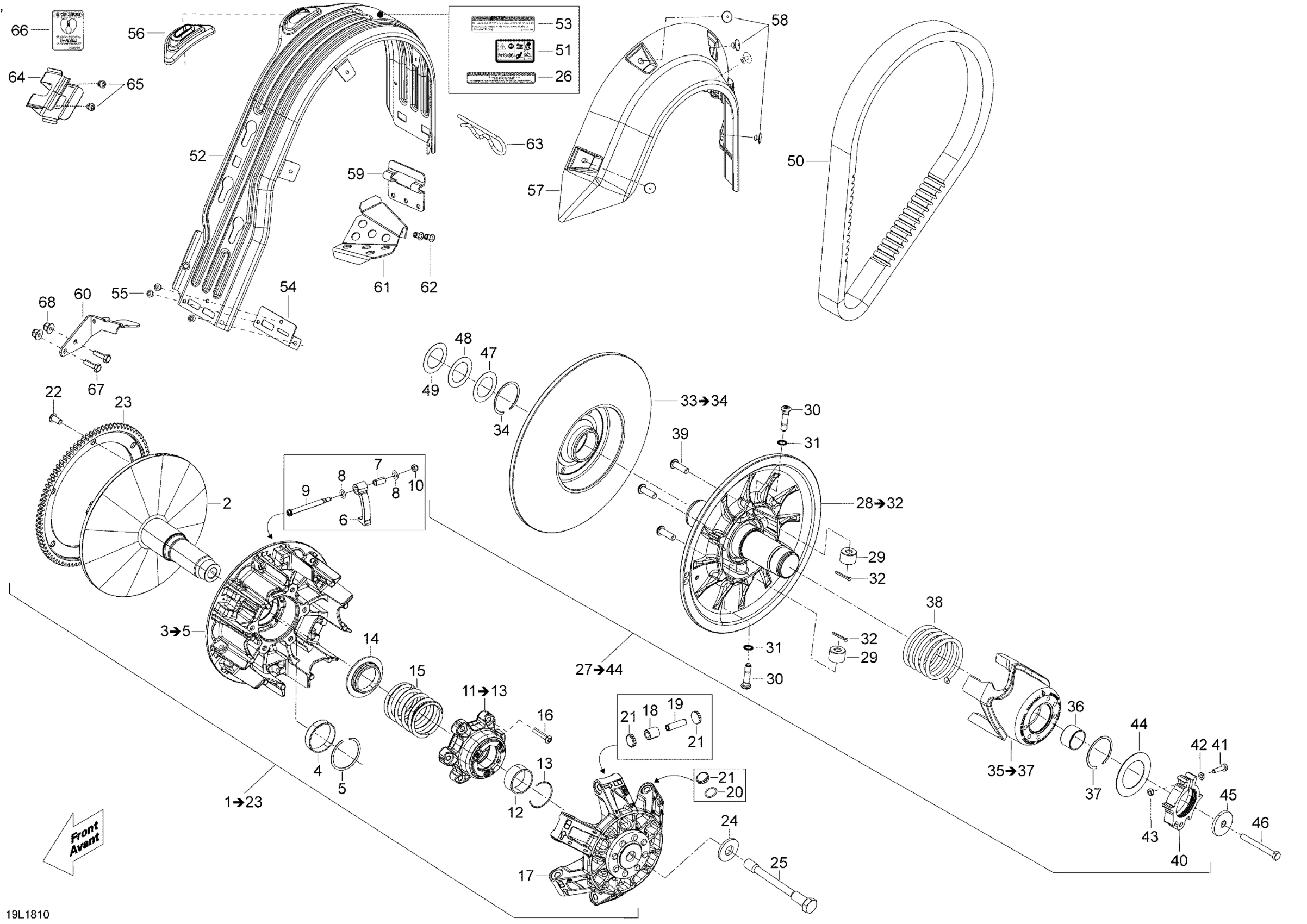

Ski-Doo 1- SKANDIC 550F, 2018 05- Pulley Skandic - 550F Diagram

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.

Sliding Flange Ass'y | Includes 10b to 10b3

Bushing

Circlip

Ramp 700 Ass'y This part replaces 417223557.

Not Available As Spare Parts

Thrust Washer

Ramp Axle

Elastic Stop Nut M5

Spring Cover Ass'y | Includes 10j to 10j3

Not Available As Spare Part - Friction Washer

Circlip

Seat Spring

Spring Clutch

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Torx Button Head Screw M8 X 16

Crown Gear Launch

Conical Spring Washer M14

Pulley Drive Bolt

Decal English

Fixed Flange Ass'y

Slider Flange Ass'y | Includes 100b to 100b3

Cam Ass'y

Spring, White

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Strength Washer

Hex. Cap Screw M8 X 75

Spacer

Spacer

Shim

Drive Belt

Warning Decal | Europe

Belt Guard

Security Label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket | Except Package SWT

Belt Guard Bracket | Package SWT

BELT GUARD BRACKET - Call your local BRP dealership

Brake Hose Cover | Except Package SWT

Brake Hose Cover | Package SWT

Rivet Hucklok

Hair Pin

Hemlock Rivet, 6.5 mm

Bracket

Avex Rivet

Belt Decal, English
