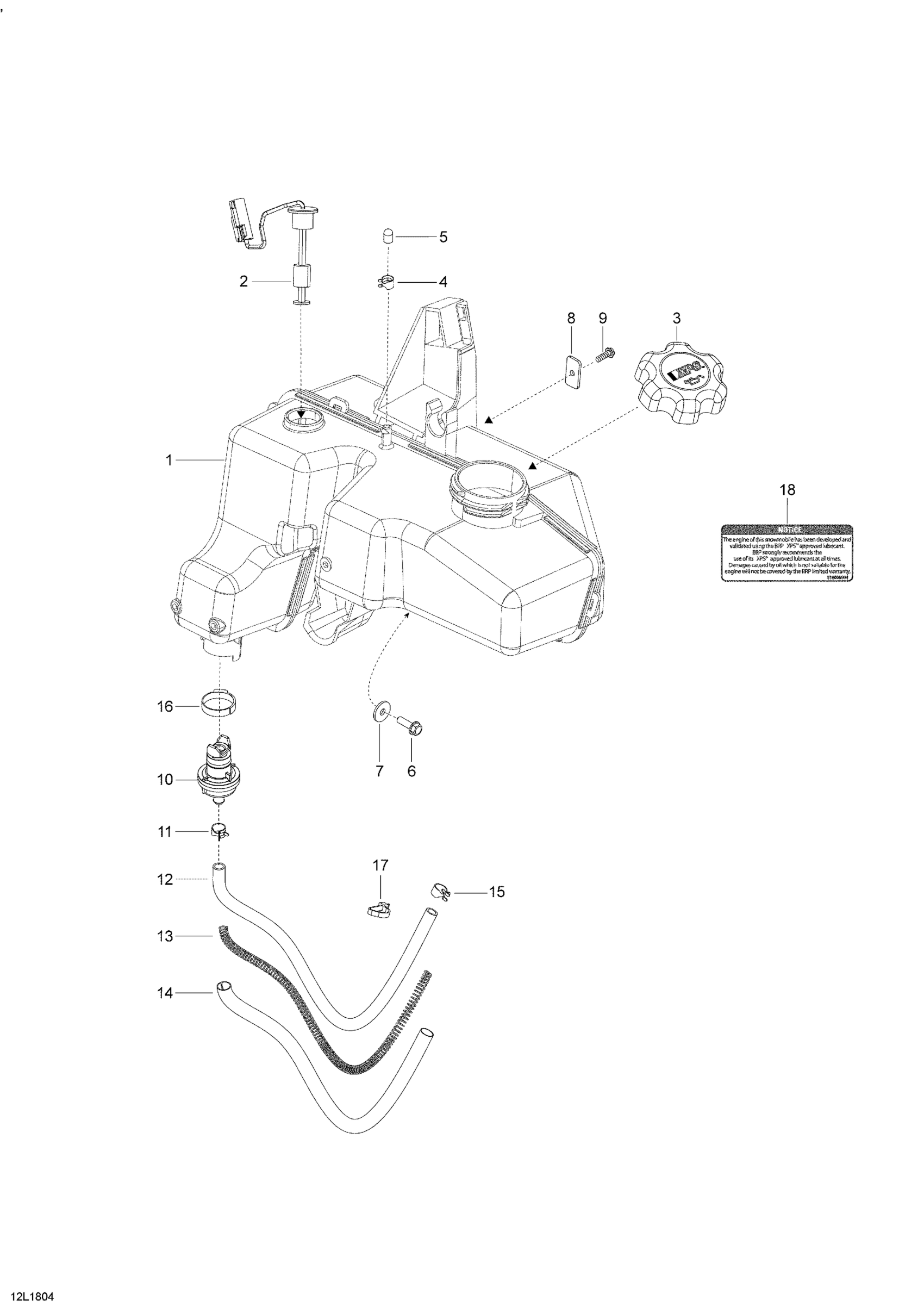

Ski-Doo SKANDIC 550F, 2018 Oil Skandic - 550F Diagram

Description

Price

Oil Tank

519000341

$224.60

Level Sensor

515176978

$55.94

Cap

519000273

$24.60

Oetiker Gear Clamp

293650043

$3.10

Cap

519000216

$6.66

100

Hex. Flange Screw M6 X 20

250000768

$2.00

110

Flat Washer

224061201

$1.27

150

Bracket

519000179

$8.31

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

210

Oil Filter

519000242

$12.79

220

Spring Clamp

414415200

$0.81

230

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

235

Spring

519000196

$8.42

240

Tubing 10 MM 1000MM Long

219704407

$2.52

270

Spring Clamp

414420700

$0.66

410

Crimp Clamp

293650099

$4.07

550

Tie-Rap 180 mm

414115200

$0.10

600

Warning Decal

516008613

Unavailable
