Description

Price

1

Secondary Chamber Ass'y

508000715

$204.99

2

Grommet

508000574

$8.59

3

Air Intake Filter

508000595

$41.49

4

Stopper

508000537

$7.79

5

Velcro Strip

508000820

$8.59

6

Adapter

508001021

$29.99

7

Hot Parts Decal

516006903

Unavailable

8

Air Filter

508000609

$48.49

9

Link

508000562

$10.99

10

Tube

508000406

$13.49

11

Primary Chamber Ass'y

508000680

$73.99

12

Notice Decal, Air Intake Silencer

516005876

$4.39

13

O-Ring

293300115

$3.77

14

ADAPTER PLATE - Call your local BRP dealership

508000564

Unavailable

15

Air Intake Adapter

508000594

$19.99

16

Gemi Clamp

508000369

$13.16

17

Insulated Foam

508000674

$14.49

18

Heat Shield

508000684

$2.19

19

Heat Shield

508000685

$5.59

20

Aluminum foil

44110

Unavailable

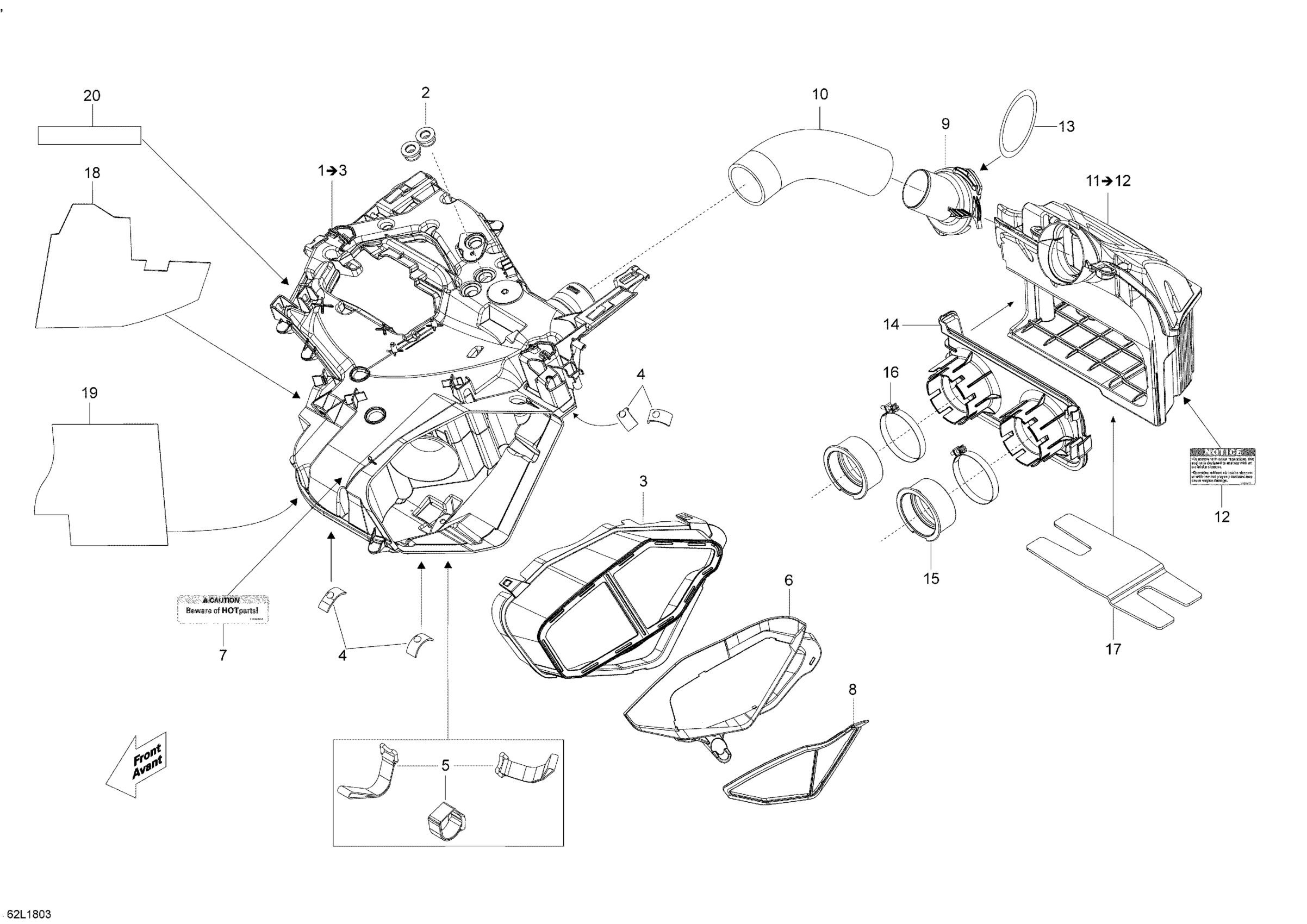

Ski-Doo 1- SKANDIC 550F, 2018 02- Air Intake 550F Diagram

Secondary Chamber Ass'y

Grommet

Air Intake Filter

Stopper

Velcro Strip

Adapter

Hot Parts Decal

Air Filter

Link

Tube

Primary Chamber Ass'y

Notice Decal, Air Intake Silencer

O-Ring

ADAPTER PLATE - Call your local BRP dealership

Air Intake Adapter

Gemi Clamp

Insulated Foam

Heat Shield

Heat Shield

Aluminum foil
