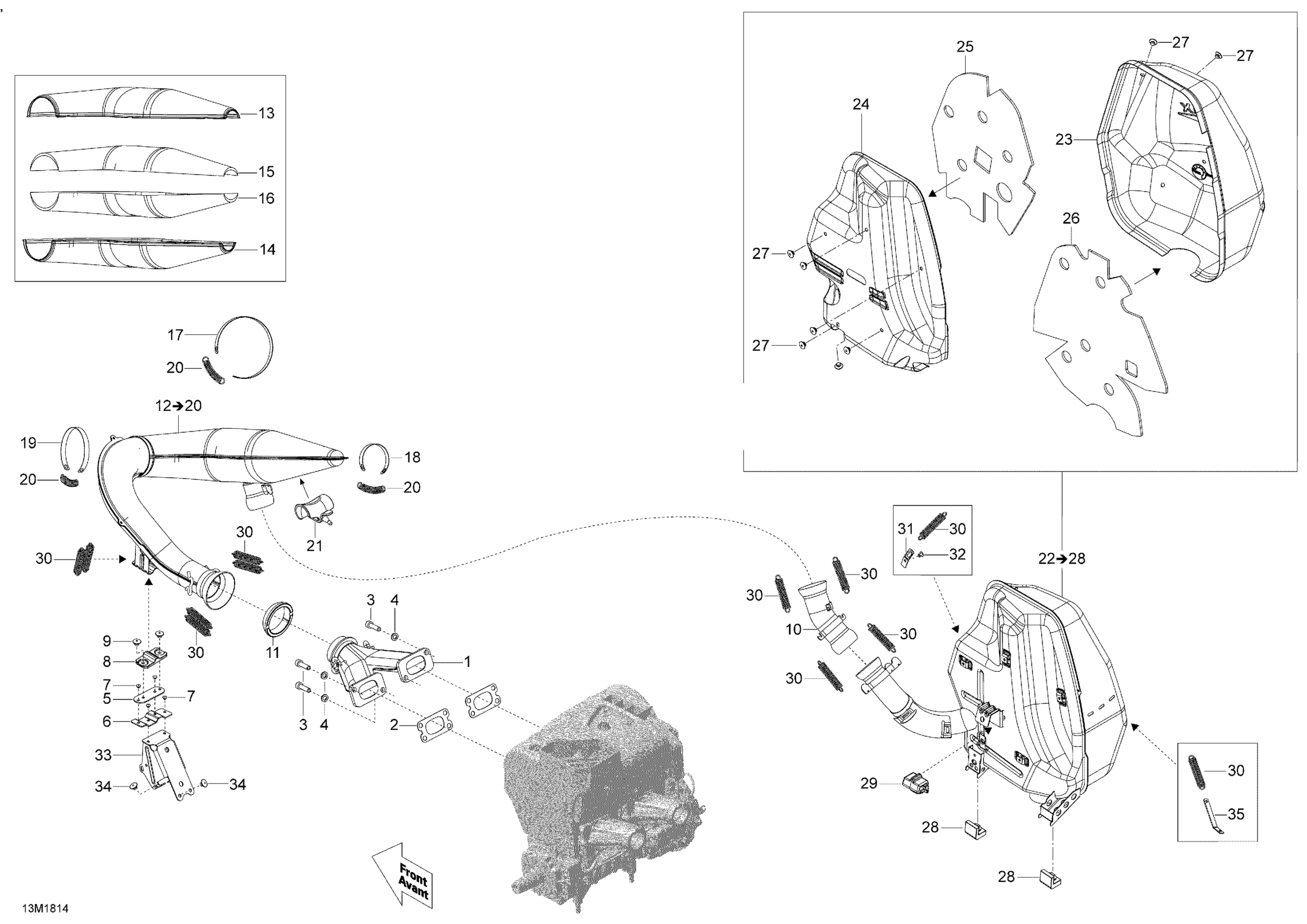

Ski-Doo SKANDIC 550F, 2018 Exhaust Skandic WT - 550F Diagram

#

Description
Price

1

Exhaust Manifold

420673065

$339.99

2

Gasket 1.0 mm

420831849

$8.85

3

Socket Head Screw M8 X 30

205083044

$1.15

4

Washer

250200111

$2.11

5

Support Plate

514055275

$7.20

6

Support

514055270

$13.12

7

Avex Rivet

390909200

$0.30

8

Bumper

514054617

$16.34

9

Pop Rivet 3/16"

293150103

$0.55

10

Exhaust Elbow

514054411

$79.49

11

Exhaust Gasket

514053644

$25.99

12

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

$649.99

13

Rear Upper Half-enveloppe

514054208

$53.99

14

Rear Lower Half Envellope

514054210

$53.99

15

Upper Insulating Wool

514054244

$16.49

16

Lower Insulating Wool

514054243

$16.49

17

Retaining Strap

514053502

$11.47

18

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

19

Retaining Strap

514053498

$11.47

20

Spring

514053643

$6.35

21

Bumper

514054513

$20.49

22

Muffler Ass'y | Includes 400 to 400g

514055055

$858.49

23

RH Deflector

514054984

$58.99

24

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

25

LH Insulated Wool

514054421

$21.99

26

RH Insulating Wool

514054711

$21.99

27

Pop Rivet 3/16”

390910000

$0.57

28

Lower Stopper

514054529

$18.49

29

Upper Stopper

514054606

$19.99

30

Spring

415107100

$6.35

31

Spring Bracket

514054522

$8.45

32

Pop Rivet 3/16"

390402200

$0.35

33

Exhaust Muffler Support

514054767

$20.49

34

Hemlock Rivet, 6.5 mm

293150096

$3.27
