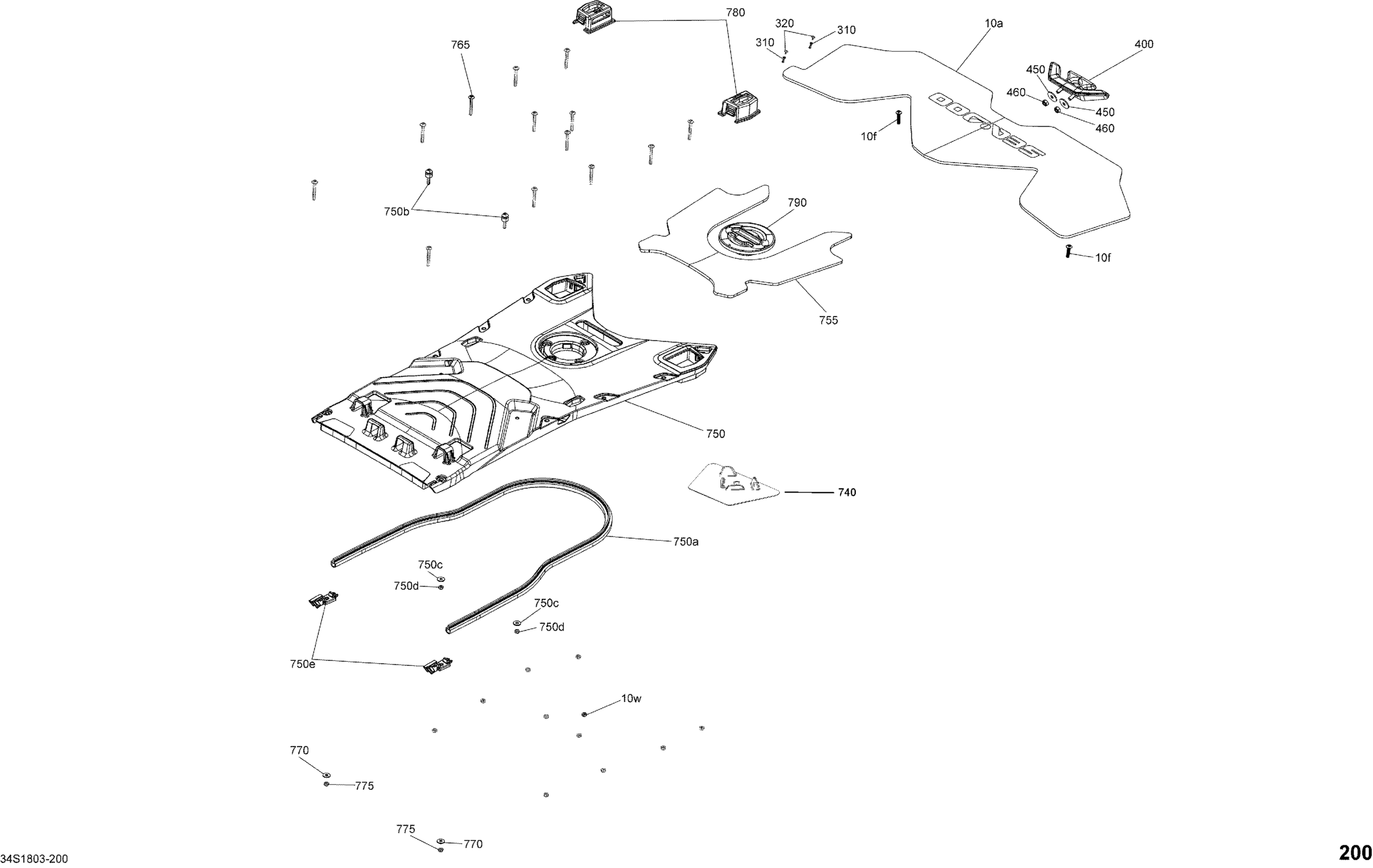

Sea-doo RXT 230, 2018 Body Rear Part - RXT Package STD Diagram

Description

Price

10a

Rear Plat-Form Carpet

291004509

$64.49

10f

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

10w

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$2.39

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

Cleat

291004597

$24.99

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

740

Hose Protector

291004941

$4.69

750 > 750e

Access Cover Ass'y | Includes 750 to 750f

291005189

$234.99

750a

Was 293200062 Seal

219704366

$76.49

750b

STUD - Call your local BRP dealership This part replaces 291004611.

291004611

$25.99

750c

Flat Washer M6, Stainless

234062600

$0.77

750d

Elastic Stop Nut M6, Brass

232561200

$4.23

750e

Seal

291004717

$12.99

755

Black, Mat Cover

291004668

$41.49

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

770

Flat Washer M6, Stainless

234062600

$0.77

775

Elastic Stop Nut M6, Brass

232561200

$4.23

780

Cargo Base

291005157

Unavailable

790

Access Cap Ass'y

291004481

$10.99
