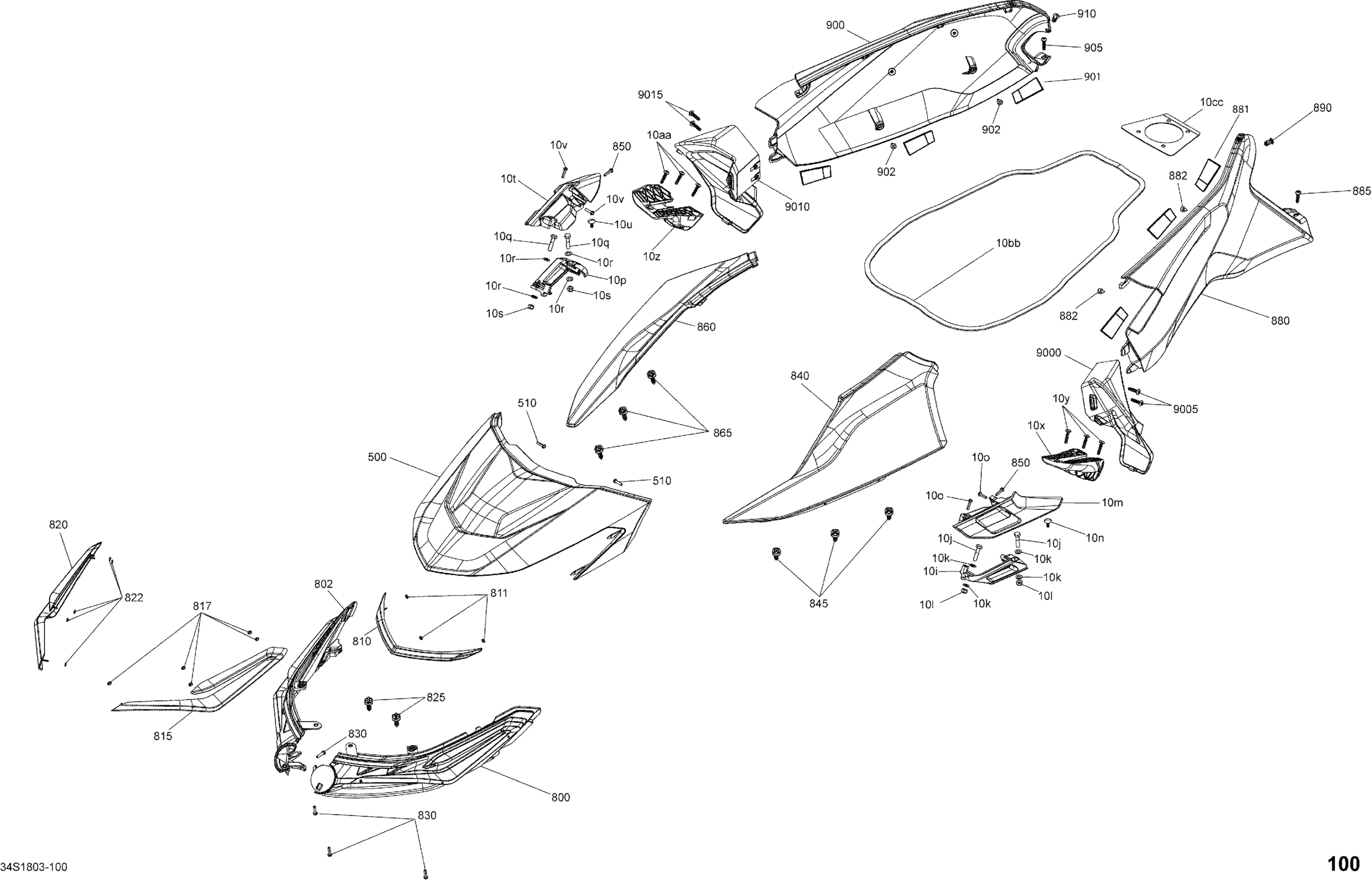

Sea-doo RXT 230, 2018 Body Front Part - RXT Package STD Diagram

#

Description
Price

10i

LH Cleat

291004559

$6.37

10j

Hex. Screw M8 X 35

207083560

$1.40

10k

Stainless, Flat Washer 8 mm

234081600

$0.46

10l

Hex. Elastic Nut M8 Brass

232581200

$1.29

10m

LH Shell Cleat

291004661

$7.15

10n

Black, Dart

293730011

$0.79

10o

Hex. Screw 10-14 X 7/8”

211000023

$2.91

10p

RH Cleat

291004720

$6.37

10q

Hex. Screw M8 X 35

207083560

$1.40

10r

Stainless, Flat Washer 8 mm

234081600

$0.46

10s

Hex. Elastic Nut M8 Brass

232581200

$1.29

10t

RH Shell Cleat

291004719

$7.15

10u

Black, Dart

293730011

$0.79

10v

Hex. Screw 10-14 X 7/8”

211000023

$2.91

10x

LH Support

291004714

$7.15

10y

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

10z

RH Support

291004715

$7.87

10aa

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

10bb

Gasket

293250401

$8.80

10cc

Gasket

293250451

$19.47

500

Deep Black, Hood

291005579

$76.02

510

Hex. Screw 10-14 X 7/8”

211000023

$2.91

800

LH Front Hood Grille Ass'y

291005911

$23.37

802

RH Front Hood Grille Ass'y

291005913

$23.37

810

Gulfstream Blue, Front Trim

291004822

$10.71

811

Push Nut

250100206

$0.83

815

Deep Black, LH Trim | Model Jungle Green

291004834

$21.42

817

Push Nut

250100206

$0.83

820

Deep Black, RH Trim | Model Jungle Green

291004835

$22.07

822

Push Nut

250100206

$0.83

825

Dard

293730071

$0.90

830

Hex. Screw 10-14 X 7/8”

211000023

$2.91

840

Body Panel FL B-352

291004777

$73.85

845

Dard

293730071

$0.90

850

Hex. Screw 10-14 X 7/8”

211000023

$2.91

860

Body Panel FR B-352

291004778

$73.85

865

Dard

293730071

$0.90

880

Body Panel CTRL L B-352

291004779

$134.30

881

Stopper

278003618

$0.70

882

Rubber Bumper

293830005

$5.33

885

Screw Torx M6.81 X 30

250001007

$1.61

890

Tuflok Plastic Rivet

293150230

$1.21

900

BODY PANEL CTRL R B-352 - Call your local BRP dealership

291004783

Unavailable

901

Stopper

278003618

$0.70

902

Rubber Bumper

293830005

$5.33

905

Screw Torx M6.81 X 30

250001007

$1.61

910

Tuflok Plastic Rivet

293150230

$1.21

9000

LH Side Grille

291004455

$7.29

9005

Screw Torx M6.81 X 30

250001007

$1.61

9010

RH Side Grille

291004456

$7.29

9015

Screw Torx M6.81 X 30

250001007

$1.61
