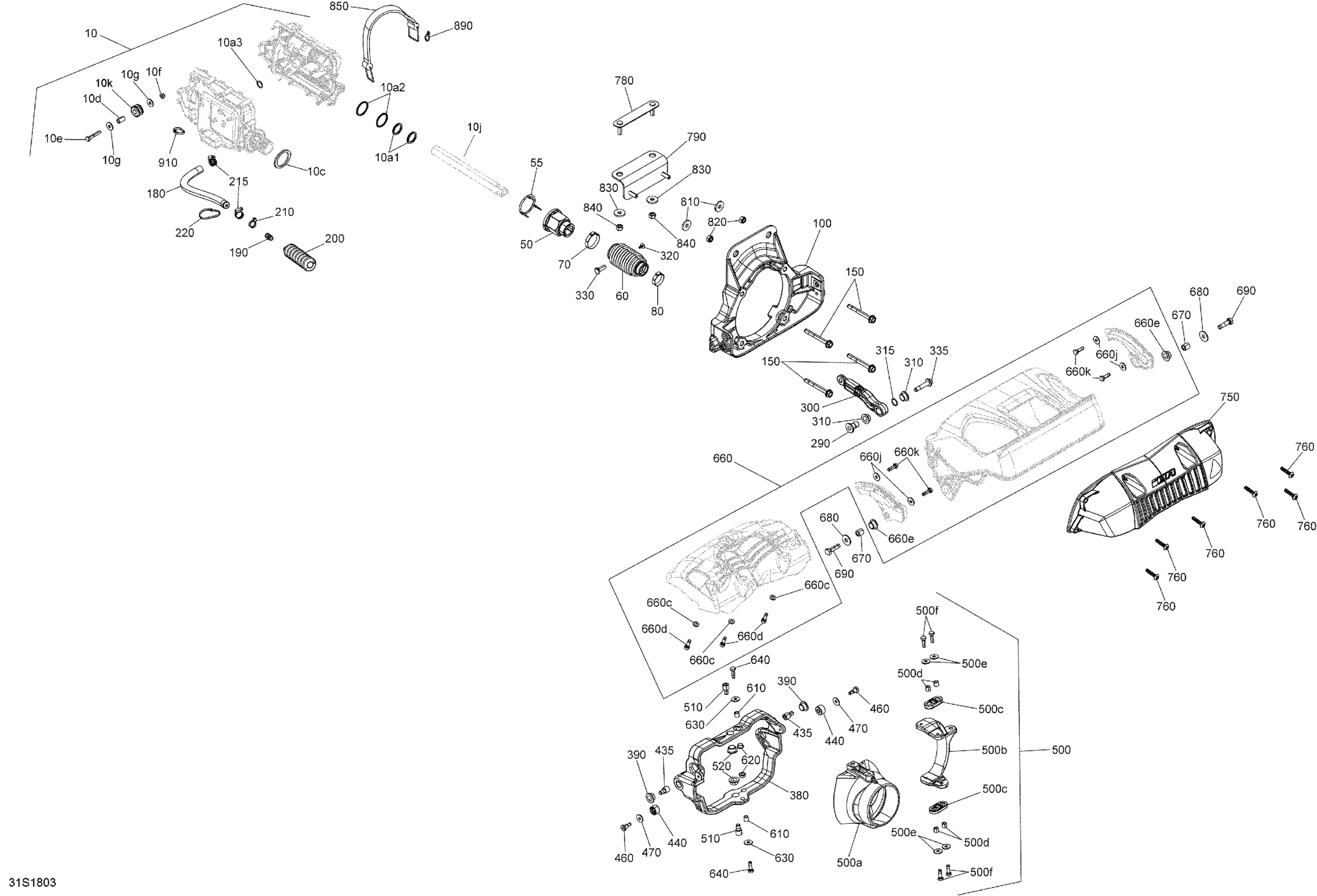

Sea-doo RXP 300, 2018 Reverse Diagram

#

Description
Price

10

Actuator | Includes 10 to 10j

278003606

$643.47

10a1

O-Ring

279000108

$4.89

10a2

O-Ring

293300107

$0.83

10a3

O-Ring

293300187

$3.20

10c

Gasket

268000208

$12.52

10d

Spacer

271001020

$9.23

10e

Hex. Screw M6 X 35

207063560

$1.85

10f

Elastic Stop Nut M6, Brass

232561200

$3.51

10g

Flat Washer M6, Stainless

234062600

$0.64

10j

Output Shaft

278003027

$44.17

10k

Grommet

293720104

$4.15

50

IBR Nut

268000308

$8.57

55

Rubber Gasket

277001977

$1.76

60

Boot

268000186

$3.59

70

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

80

Crimp Clamp

293650099

$4.60

100

Bracket

268000266

$71.47

150

Screw-Hex.Flange DIN.6921 S.Grip

250000835

$3.25

180

Was 509000407 Hose 8 mm

219704420

$40.27

190

Fitting-Straig

293710157

$5.36

200

Inner Boot This part replaces 268000345.

268000211

$8.14

210

Tie Wrap 142 mm

293750002

$0.88

215

Tridon Gear Clamp

293650171

$2.46

220

Tie Wrap 142 mm

293750002

$0.88

290

Bushing

268000269

$12.61

300

Linkage Arm

268000256

$17.52

315

O-Ring

293300187

$3.20

310

Venturi Bushing

293900007

$3.71

335

Hex. Flange Screw Din.6921 S.Grip

250000963

$3.25

320

Hexalob Screw M4 X 10

250000565

$1.74

330

Shoulder Pin

268000309

$14.92

380

Trimming Ring

268000247

$74.72

390

Venturi Bushing

293900007

$3.71

435

Screw Socket S.Grip

250000837

$6.59

440

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

460

Screw-Socket Shoulder M8X8

250000775

$6.57

470

Flat Washer M6, Stainless

234062600

$0.64

500

NOZZLE ASS'Y - Call your local BRP dealership | Includes 260 TO 260f

267000905

Unavailable

500a

Jet Pump Nozzle

267000727

$60.42

500b

Nozzle Lever, Black

268000148

$48.07

500c

Direction Lever Arm

268000058

$8.94

500d

Spacer

268000060

$10.09

500e

Flat Washer M6, Stainless

234062600

$0.64

500f

Scotch Grip Hexagonal Screw M6 X 20

250000891

$1.78

510

Screw Socket S.Grip

250000837

$6.59

520

Venturi Bushing

293900007

$3.71

610

Spacer

268000060

$10.09

620

Bushing

268000059

$9.71

630

Flat Washer M6, Stainless

234062600

$0.64

640

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

660

Gate Reverse Ass'y | Includes 280 TO 280i

268000296

$102.02

660c

Stainless Flat Washer M6

234061600

$0.25

660d

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

660e

Venturi Bushing

293900007

$3.71

660j

Flat Washer M6, Stainless

234062600

$0.64

660k

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

670

Spacer

271001039

$11.78

680

Flat Washer 8 mm, Stainless

234082600

$1.98

690

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

750

Guard

268000162

$23.37

760

Screw Torx M6.81 X 30

250001007

$1.61

780

Ass'y Bracket

268000271

$9.23

790

Reverse Bracket

268000304

$13.62

810

Flat Washer

279000336

$8.35

820

Hex. Elastic Nut M8 Brass

232581200

$1.29

830

Flat Washer

279000336

$8.35

840

Hex. Elastic Nut M8 Brass

232581200

$1.29

850

Fuel Tank Strap

293850095

$14.27

890

Tie Wrap 94 mm | 4X4

293750001

$0.83

910

Tie Wrap 142 mm

293750002

$0.88
