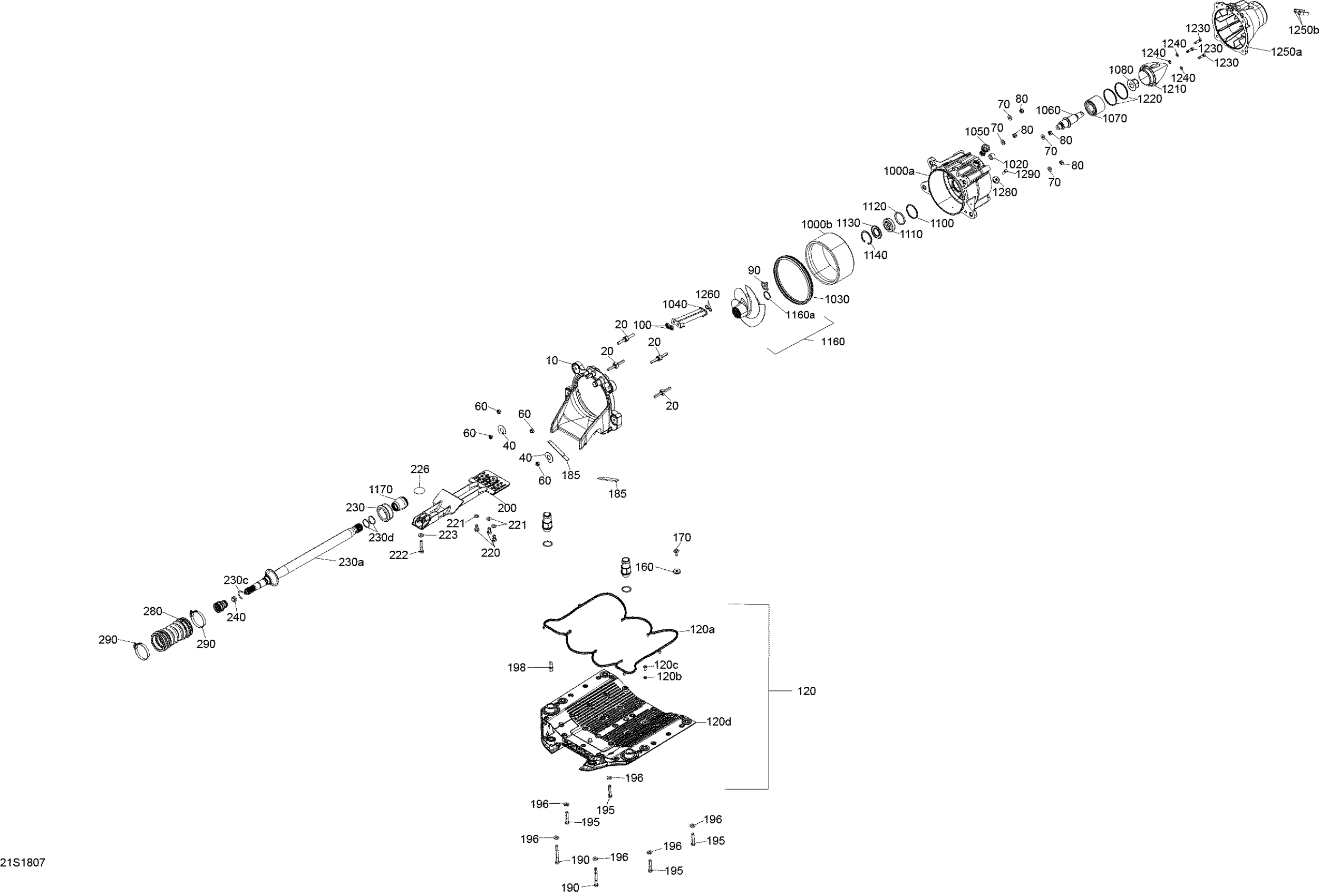

Sea-doo RXP 300, 2018 Propulsion RXP - 300 Diagram

#

Description
Price

10

Pump Support

271001931

$32.81

20

Square Stud

250300046

$11.91

40

Shim 0.3 mm

272000053

$8.02

60

Hex. Elastic Nut M8 Brass

232581200

$1.29

70

Flat Washer M8.5 x 18

293050001

$1.29

80

Hex. Elastic Nut M8 Brass

232581200

$1.29

90

Reducer, Green This part replaces 271001586.

271002029

$12.82

100

Watertight Seal

293250084

$5.81

120

Riding Plate Ass'y | Includes 120 TO 120f

271002021

$252.17

120a

Gasket

271002024

$26.84

120c

Torx Screw M6 X 14

250000384

$6.15

120b

Sealing Washer

250200114

$3.61

120d

Socket Drain Plug M6 X 12

250500005

$11.74

140

O-Ring

293300121

$6.18

150

Strait Fitting

293710124

$12.91

160

Anode Zinc

271001920

$11.43

170

Hex Screw M6 X 20

250000965

$1.74

185

Gasket, Neoprene 2000Mm Long

219704476

$12.64

190

Hexagonal Head Cap Screw M8 X 75

250000812

$2.35

195

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

196

Flat Washer M8.5 x 18

293050001

$1.29

198

Cap Plug

293000105

$3.38

200

Pump Grate

271001971

$51.97

220

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.83

221

Stainless, Flat Washer 8 mm

234081600

$0.46

222

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

223

Flat Washer M8.5 x 18

293050001

$1.29

226

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable

230a

Drive Shaft

271001719

$265.82

230b

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$77.32

230c

C-Clip

271001577

$2.68

230d

O-Ring

293300107

$0.83

240

Drive Shaft Plug

272000173

$7.02

280

Bellow This part replaces 271001422.

271001933

$18.82

290

Norma Clamp

293650079

$8.89

1000a

Impeller Housing

271002018

$227.47

1000b

Wear Ring

267000917

$68.87

1010

Hex. Screw 10-32 X 3/8", Stainless

204100269

$0.75

1020

Black, Plastic Plug

267000469

$5.99

1030

Neoprene Seal

293200087

$9.19

1040

Water Outlet

271000785

$3.04

1050

Plug | Includes 370z to 370z1

267000282

$14.27

1060

Impeller Shaft

267000388

$94.22

1070

Angled Bearing This part replaces 267000030.

267000900

$66.27

1080

Elastic Flange Nut M20

250100104

$9.71

1100

O-Ring

293300090

$5.97

1110

Seal

271002071

$26.62

1120

Spacer

271001393

$6.12

1130

Oil Seal

293200089

$15.57

1140

Circlip

293370038

$7.12

1160

Impeller Assembly | Includes 360n to 360n3

267000951

$402.97

1160a

O-Ring

293300044

$0.86

1170

Guard

271002228

$9.85

1210

Impeller Cover

267000428

$14.27

1220

O-Ring

293300086

$2.90

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

1240

Stainless Flat Washer M6

234061600

$0.25

1250a

Black Venturi

267000844

$169.62

1250b

Siphon Tube

271001885

$1.46

1260

O-Ring

293300013

$5.69

1280

Anode Zinc

271001920

$11.43

1290

Hex Screw M6 X 20

250000965

$1.74
