08- Drive System, Rear

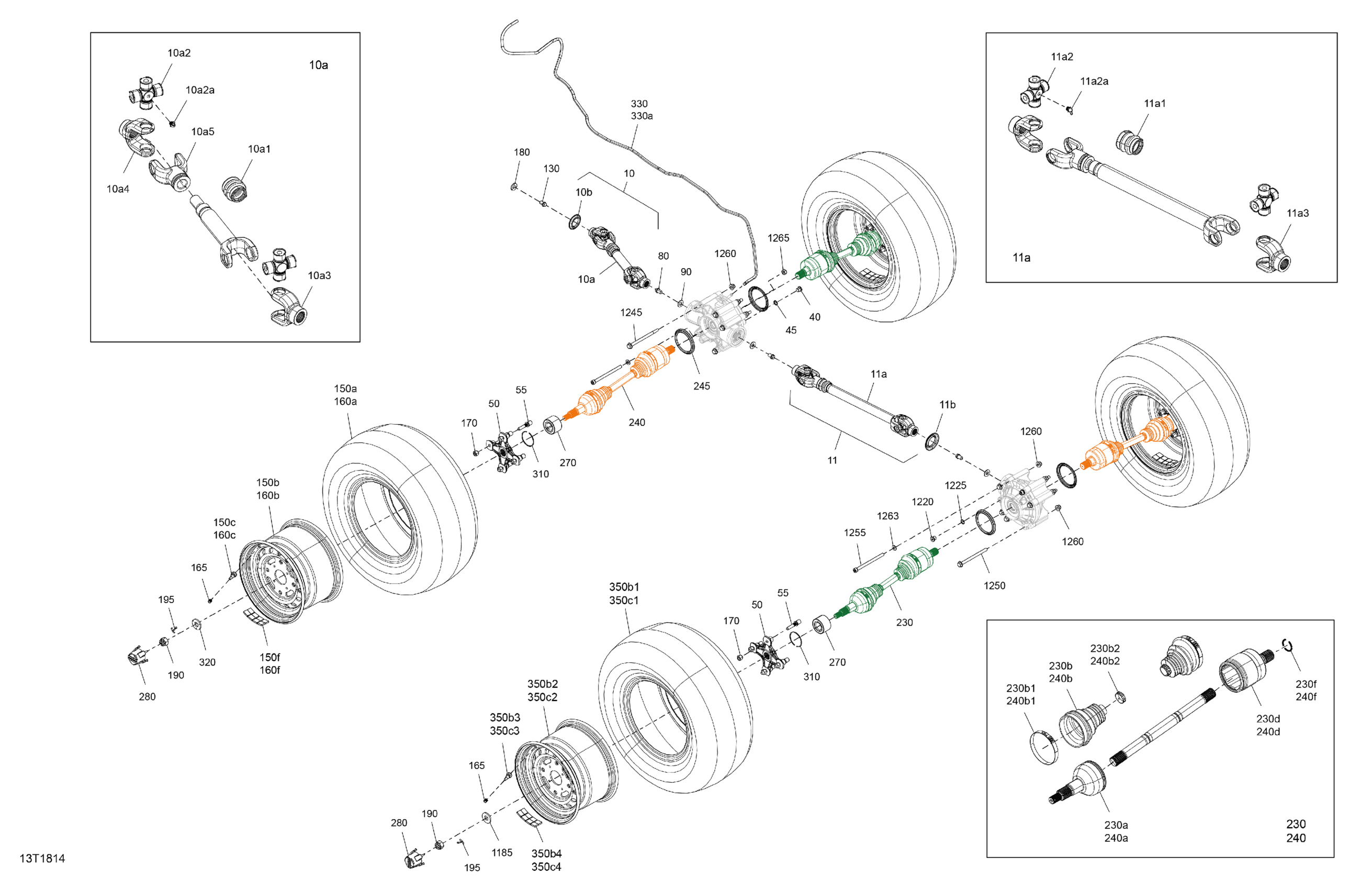

Can-Am 1- Outlander 6X6 T3 650 EFI, 2018 08- Drive System, Rear Diagram
#
10
Shaft Ass'y Kit | Incldues 1 to 5
703500991
Unavailable
10a
Not Available As Spare Parts
XXX
Unavailable
10a1
Rubber Boot
715900118
Unavailable
10a2
Universal Joint Ass'y | T3
703500846
Unavailable
10a2a
Grease Fitting | T3
715900295
Unavailable
10a3
Yoke | T3
715900500
Unavailable
10a4
Joint | T3
715900436
Unavailable
10a5
Spline Yoke
715900106
Unavailable
10b
Protector
705501123
Unavailable
11
Shaft Ass'y Kit | Includes 11 to 11f
703501135
Unavailable
11a
Not Available As Spare Parts
XXX
Unavailable
11a1
Rubber Boot
715900118
Unavailable
11a2
Universal Joint
715900326
Unavailable
11a2a
Grease Fitting | T3
715900295
Unavailable
11a3
Yoke | T3
715900500
Unavailable
11b
Protector
705501123
Unavailable
40
Fill Level Plug | 4X4
705500504
Unavailable
45
Copper Washer | 4X4
705500506
Unavailable
50
Wheel Hub
705501900
Unavailable
55
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
80
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
90
Flat Washer M12
250200102
Unavailable
130
Hex Flange Screw M12 X 16
250001039
Unavailable
150a
Rear Tire | STD EURO
705501768
Unavailable
150b
Black, Rim | STD
705501802
Unavailable
150c
Rim Valve With Cap
705400193
Unavailable
150f
1/2 Oz Weight
219704465
Unavailable
160a
Rear Tire | STD EURO
705501768
Unavailable
160b
Black, Rim | STD
705501802
Unavailable
160c
Rim Valve With Cap
705400193
Unavailable
160f
1/2 Oz Weight
219704465
Unavailable
165
Valve Cap
293000110
Unavailable
170
Steel Wheel Nut
250100042
Unavailable
180
Conical Spring Washer M12
250200005
Unavailable
190
Hex. Flange Castellated Nut M18
232291413
Unavailable
195
Cotter Pin
250400071
Unavailable
230
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
230a
CV Joint
705501776
Unavailable
230b
Boot Kit
705501864
Unavailable
230b1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
230b2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
230d
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
230f
Circlip
705501781
Unavailable
240
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
240a
CV Joint
705501776
Unavailable
240b
Boot Kit
705501864
Unavailable
240b1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
240b2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
240d
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
240f
Circlip
705501781
Unavailable
245
Wear Ring
705501124
Unavailable
270
Ball Bearing
293350150
Unavailable
280
Wheel Cap
705400928
Unavailable
310
Circlip
293370019
Unavailable
320
Conical Spring Washer M18
250200171
Unavailable
330
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
330a
Not Available As Spare Parts
XXX
Unavailable
350b1
Rear Tire | STD EURO
705501768
Unavailable
350b2
Black, Rim | STD
705501802
Unavailable
350b3
Rim Valve With Cap
705400193
Unavailable
350b4
1/2 Oz Weight
219704465
Unavailable
350c1
Rear Tire | STD EURO
705501768
Unavailable
350c2
Black, Rim | STD
705501802
Unavailable
350c3
Rim Valve With Cap
705400193
Unavailable
350c4
1/2 Oz Weight
219704465
Unavailable
1185
Conical Spring Washer M18
250200171
Unavailable
1220
Fill Level Plug | 4X4
705500504
Unavailable
1225
Copper Washer | 4X4
705500506
Unavailable
1245
Hex. Flange Screw M10x145
705502741
Unavailable
1250
Hex. Flange Screw M10 X 135
250001041
Unavailable
1255
Screw Socket HD M10 X 140
250001094
Unavailable
1260
Hex. Flange Elastic Nut M10
233201436
Unavailable
1263
WASHER M10 - Call your local BRP dealership
20005
Unavailable
1265
Elastic Stop Nut M10
232500416
Unavailable
