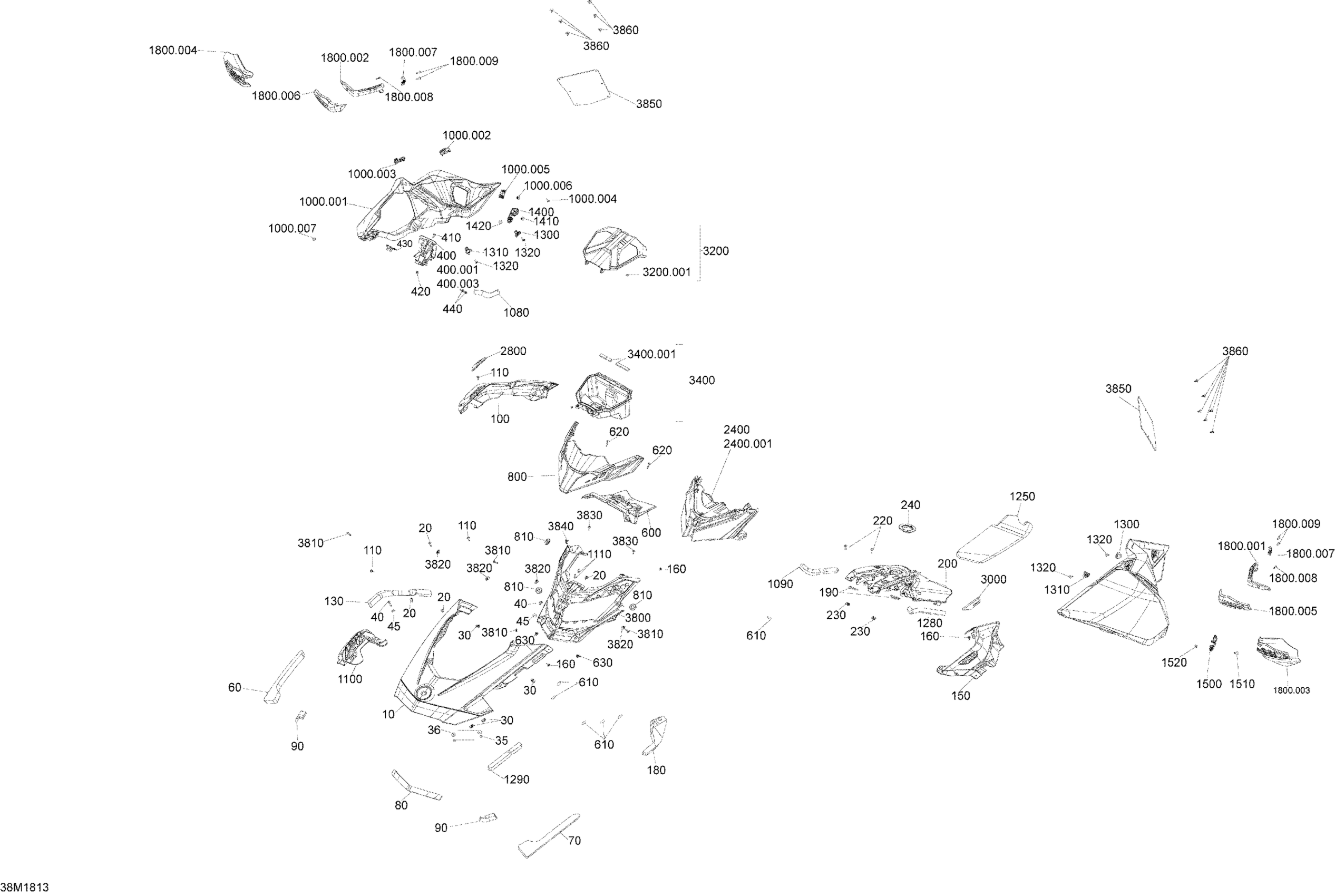

Ski-Doo MXZ 600RS - Racing, 2018 Hood MXZ RS Diagram

#

Description
Price

10

Sunburst Yellow, Front Hood

517305983

$219.99

20

Torx Screw M5 X 20

250000528

$2.19

30

Panel Nut M5 X 0.8

250000958

$4.29

35

Elastic Flange Nut M5

233251494

$2.19

36

Flat Washer

250200040

$1.99

40

Torx Screw M5 X 26

250000587

$4.49

45

Washer

250200166

$2.19

60

RH Front Hood Foam

517305763

$13.99

70

LH Front Hood Foam

517305764

$15.49

80

Front Hood Foam

517306592

$13.99

90

Hood Foam

517306593

$13.99

100

Sunburst Yellow, RH Hood

517306733

$209.99

110

Screw M4 X 16

250000725

$3.59

130

RH Hood Foam

517306001

$13.99

150

Sunburst Yellow, LH Hood

517306723

$209.99

160

Screw M4 X 16

250000725

$3.59

180

LH Hood Foam

517306002

$13.99

190

Gasket

513033813

$3.49

200

Rear Console

517305892

$209.99

220

Torx Screw M5 X 26

250000587

$4.49

230

Panel Nut M5 X 0.8

250000958

$4.29

240

Console Nut

517304518

$15.99

400

RH Console

517306759

$36.99

400.001

Black, Cap

275500241

$3.59

400.003

Neoprene Seal (1PAC=3M)

219704364

$28.99

410

Torx Truss M5 X 20

250000586

$4.49

420

Panel Nut M5 X 0.8

250000958

$4.29

430

Rope Guide

517306315

$5.59

440

Hex. Flange Screw M6 X 12

210261250

$1.99

600

Indicator Support

517305782

$12.49

610

Adhesive Patch

518325560

$4.69

620

Torx Screw M5 X 26

250000587

$4.49

630

Panel Nut M5 X 0.8

250000958

$4.29

800

Wind Deflector

517306432

$46.99

810

Grommet

517303756

$4.09

1000.001

Deep Black, RH Panel

517306871

$264.99

1000.002

RH Rear Latch

517305773

$18.99

1000.003

RH Front Latch

517305979

$16.49

1000.004

Screw M4 X 16

250000725

$3.59

1000.005

RH Hook

517306311

$12.99

1000.006

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1000.007

Washer

517124300

$1.49

1080

Rubber Sheet

517306262

$31.99

1090

RH Rear Panel Foam

517306480

$12.49

1100

Deep Black, RH Grille

517305862

$31.99

1110

Screw M4 X 16

250000725

$3.59

1250

LH Front Panel Foam

517305769

$19.99

1280

LH Rear Panel Foam

517306479

$12.49

1290

Foam

517306594

$12.49

1300

Rear Stud

517305985

$15.99

1310

Front Stud

517305988

$16.49

1320

Screw M4 X 16

250000725

$3.59

1400

RH Lower Latch

517306309

$18.99

1410

Pop Rivet 3/16"

293150100

$1.49

1420

Washer

517124300

$1.49

1500

LH Lower Latch

517306310

$18.99

1510

Pop Rivet 3/16"

293150100

$1.49

1520

Washer

517124300

$1.49

1800.001

Deep Black, LH Arm

517305290

$24.99

1800.002

Deep Black, RH Arm

517305293

$24.99

1800.003

LH Deflector, Smoked 60%

517305291

$25.99

1800.004

RH Deflector, Smoked 60%

517305294

$24.99

1800.005

Sunburst Yellow, LH Cap, SKI-DOO

517305589

$39.99

1800.006

Sunburst Yellow, RH Cap, SKI-DOO

517305588

$39.99

1800.007

Clamp

517305296

$4.89

1800.008

Torx Screw Truss Head K50X20 T20

250000760

$2.19

1800.009

Torx Screw M5 X 20

250000724

$1.69

2400

Headlamp | Includes 2400 to 2400a

517305752

$459.99

2400.001

Bulb

415130081

$42.99

2800

RH Hood Plate

517306049

$15.49

3000

LH Hood Plate

517306050

$13.99

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200.001

Push Nut

732610072

$2.29

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400.001

Seal Joint

517305157

$2.49

3800

Headlamp Fairing

517306365

$60.99

3810

Torx Screw M5 X 20

250000528

$2.19

3820

Panel Nut M5 X 0.8

250000958

$4.29

3830

Screw M4 X 16

250000725

$3.59

3840

Tuflok Plastic Rivet

293150230

$1.49

3850

Panel Plate

517306595

$90.99

3860

Black, Dart

414644300

$1.49
