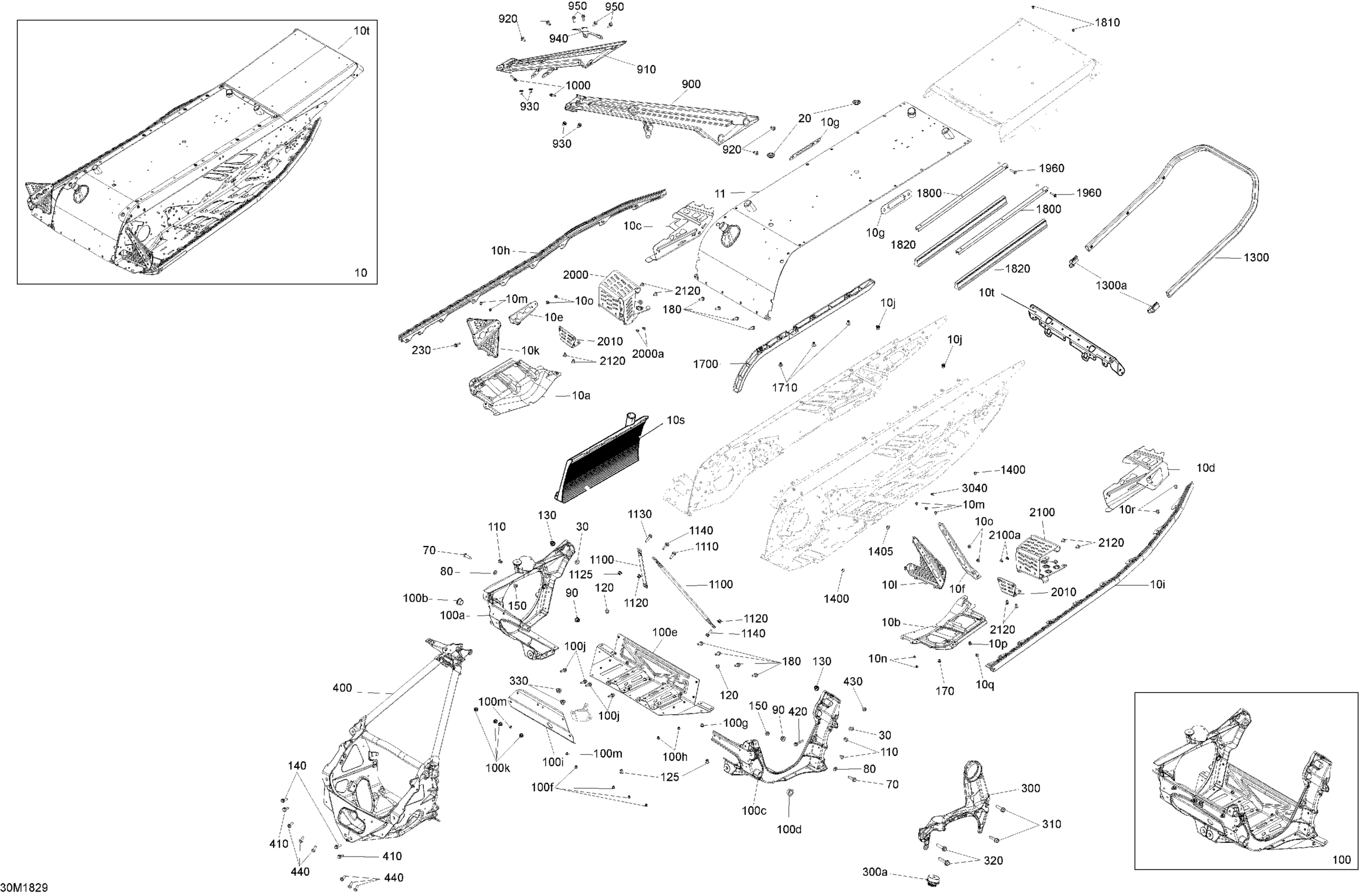

Ski-Doo MXZ 600RS - Racing, 2018 Frame MXZ - 600 RS Diagram

T MODULE 129 RS GRAY - Call your local BRP dealership | Includes 10 to 10t

415130210

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518328456

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518328455

Unavailable

RH Suspension Bracket

518329021

$64.58

LEFT SUSPENSION BRACKET - Call your local BRP dealership

518329022

Unavailable

RH Reinforcement Footrest

518329048

$18.43

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

Member Fixation Plate

518329480

$10.03

RH Roller

518329023

$180.74

LH Roller

518329024

$180.74

Threaded Insert M6 X 1.0

250100242

Unavailable

RH Footrest

518328460

$38.43

LH Footrest

518329645

$42.28

Rivet Avibulb 3/16

293150203

$0.29

Stavex Rivet

293150144

$0.77

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Radiator Ass'y

518330337

$699.97

Rear Cap

518330165

$152.28

Black, Plug

293730052

$6.37

Washer

506151252

$3.11

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module | Includes 100 to 100s

518334278

$666.89

RH Member Ass'y | Includes 100a to 100b

518330545

$208.43

Leg Cushion

505073317

$5.92

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Cushion

505073317

$5.92

Bottom Plate

518329844

$35.35

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Rivet Avibulb 3/16

293150203

$0.29

Front Member

518330100

$56.12

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Rivet Avibulb 3/16

293150203

$0.29

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hemlock Rivet 6.5 mm

293150120

$7.23

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Brace Ass'y | Includes 300 to 300b

518330166

$319.20

Rubber Mount

512061284

Unavailable

Hex. Flange Screw M8 X 30

250001048

$2.35

Hex. Flange Screw M8 X 35

207683544

$1.39

Hex. Flange Elastic Nut M8

233281414

$1.14

Chassis Suspension Module

518333318

$792.28

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16

207661646

$1.00

LH Rear Diagonal Cross Member Ass'y

518334034

$108.43

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Insert

293450275

$9.89

Brace Rear Member

518329499

$14.42

Hex. Flange Screw M6 X 16

207661644

$0.61

Stud M5 X 20

250300629

$1.92

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Screw M6 X 20

207662044

$1.66

Rear Bumper | Includes 1300 to 1300b

518328745

$114.99

Cap

520001612

$8.62

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

Support

518330225

$83.05

Rivet Avibulb 3/16

293150203

$0.29

Rear Protector

518330227

Unavailable

Hex. Flange Screw M5 X 25

207652544

$0.42

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$207.66

Avex Rivet

390909100

$0.29

Support

518329838

$30.74

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$207.66

Avex Rivet

390909100

$0.29

Torx Truss Screw M6 X 12

250000767

$1.66

Dart

293730079

$1.92
