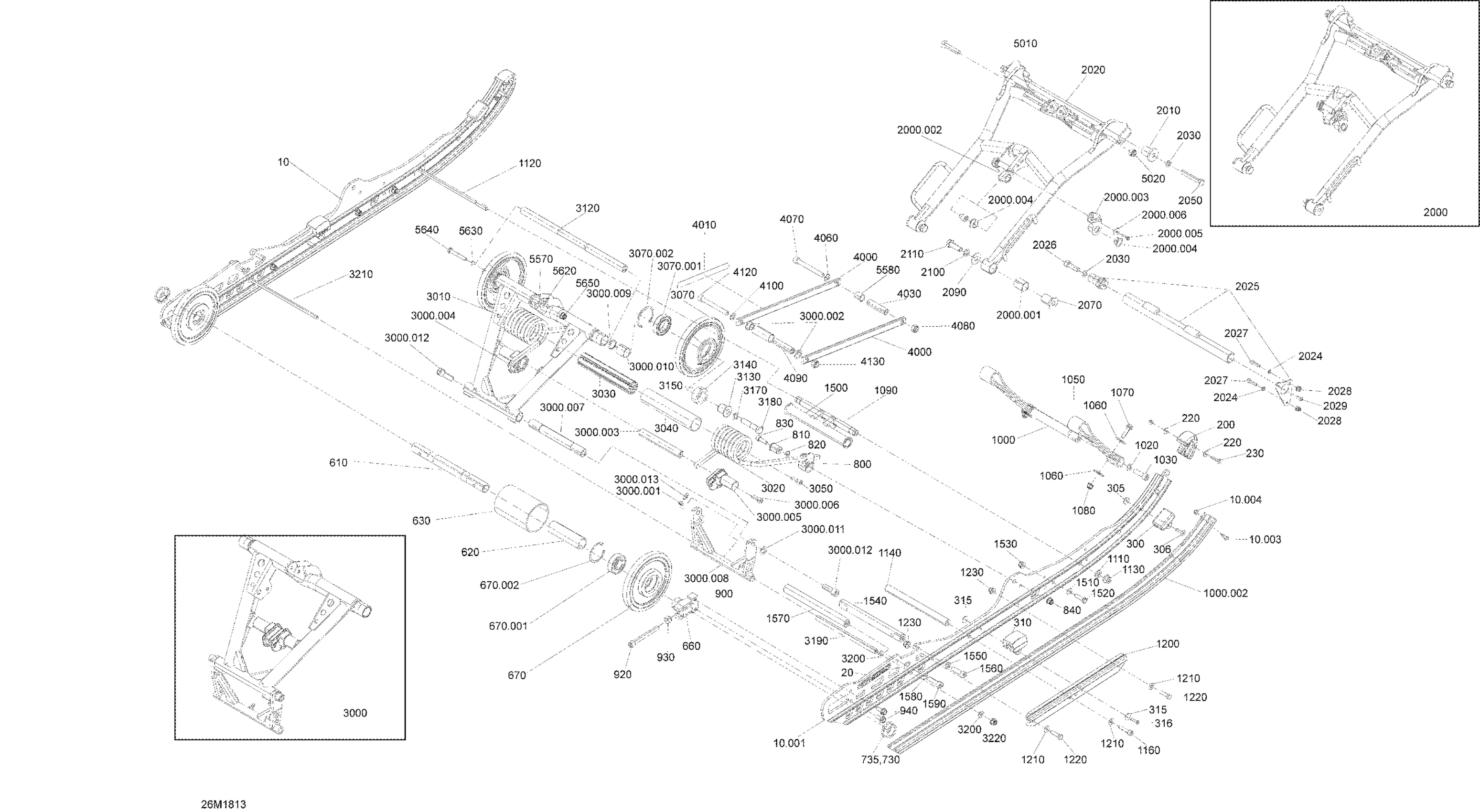

Ski-Doo MXZ 600RS - Racing, 2018 Rear Suspension MXZ 600 RS Diagram

#

Description
Price

10.001

RAIL_SUSPENSION ECOAT - Call your local BRP dealership

503195001

Unavailable

10.002

RS Slider

503194563

$27.66

10.003

Phillips Screw M6 X 25

208562531

$1.74

10.004

Elastic Stop Nut M6

232561414

$1.55

20

Runner Decal

516004755

$9.11

200

Runner Protector

503192299

$23.82

220

Washer

250200140

$0.83

230

Hex. Flange Screw M5 X 25

207652544

$0.42

300

Rubber Stopper

503190576

$10.23

305

Washer

503191273

$1.06

306

Pop Rivet 3/16

293150224

$0.98

310

Stopper Rubber

503194164

$12.65

315

Washer

503191273

$1.06

316

Pop Rivet 3/16"

293150013

$1.11

610

Rear Axle

503193692

$129.20

620

Center Spacer

503156000

$8.92

630

Bushing

503193693

$14.80

660

Spacer

503193694

$36.12

670

Wheel 165" | Includes 670 to 670b

503194127

$49.97

670.001

Ball Bearing

293350115

$11.15

670.002

Retaining Ring

415129371

$8.92

730

Nut

503193695

$26.89

735

Nut

503193696

$25.35

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

820

Flat Washer 8 mm

234082410

$1.11

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

900

Tensioner

503193697

$38.43

920

Socket Head Screw

205009087

$10.52

930

Elastic Locking Nut M10

233601466

$1.74

940

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1000

Limit Axle

503192715

$78.43

1020

Washer

503192496

$0.75

1030

Socket Head Screw M10 X 35

205503554

$6.18

1050

Stopper Strap

503192360

$19.97

1060

Flat Washer 8 mm

250200128

$1.74

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1080

Elastic Flange Nut M8

233281466

$0.83

1090

Pivot Axle

503193435

$38.43

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1130

Flange Elastic Nut M10

233201466

$2.63

1140

Axle

503151600

$15.35

1160

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.55

1200

Rail Reinforcement

503194175

$104.58

1210

Washer

503192494

$3.11

1220

Hex. Cap Screw M8 X 30

207183054

$3.61

1230

Elastic Flange Nut M8

233281466

$0.83

1500

Reinforcement

503194129

$104.58

1510

Washer

503192494

$3.11

1520

Hex. Cap Screw M8 X 30

207183054

$3.61

1530

Elastic Flange Nut M8

233281466

$0.83

1540

Limit Axle

503192715

$78.43

1550

Washer

503192496

$0.75

1560

Socket Head Screw M10 X 35

205503554

$6.18

1570

Limit Axle

503192715

$78.43

1580

Washer

503192496

$0.75

1590

Socket Head Screw M10 X 35

205503554

$6.18

1600

Lock Washer M6, Black

234161471

$0.52

1610

Socket Head Screw M6 X 12

205061260

$1.26

2000

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 2000 to 2000,006

503195009

Unavailable

2000.001

Bushing

503191554

$5.88

2000.002

LH ROCKER ARM - Call your local BRP dealership

503192706

Unavailable

2000.003

RH ROCKER ARM - Call your local BRP dealership

503192707

Unavailable

2000.004

Swivel Bushing

503191555

$5.71

2000.005

Hex. Screw M5 X 20

207152044

$0.88

2000.006

Washer

250200016

$0.72

2010

Bushing

503192721

$34.58

2020

Slide Bushing

503192713

$93.82

2024

Washer

514053953

$0.75

2025

Axle

503195016

$213.82

2026

Socket Head Screw M10 X 35

205503554

$6.18

2027

Socket Head Screw M6 X 25

205062560

$1.42

2028

Flange Elastic Nut M6

233261434

$3.61

2029

Interlock Rivet 3/16''

293150194

$1.02

2030

Washer

503192496

$0.75

2050

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

2070

Lower Axle

503191966

$15.35

2090

Washer

503190656

$2.91

2100

Washer

503192491

$4.38

2110

Hex. Cap Screw M12 X 35

250000537

$2.63

3000

Rear Arm Ass'y | Includes 3000 to 3000,013

503195005

$212.28

3000.001

Hexagonal Nut M6

232061404

$0.32

3000.002

Swivel Bushing

503191555

$5.71

3000.003

Spring Cam Axe

503191178

$27.66

3000.004

LH Spring Cam

503191191

$13.88

3000.005

RH Spring Cam

503191190

$13.78

3000.006

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

3000.007

Lower Shaft

503192095

$46.12

3000.008

Pivot Arm

503192701

$274.58

3000.009

Washer

503191774

$2.25

3000.01

Bushing

503191773

$13.60

3000.011

Washer | 7415/7416. 7417/7418.

503189148

$2.72

3000.012

Socket Head Screw Scotch Grip Din.912

205523587

$2.06

3000.013

Grease Fitting

408200700

$2.80

3010

LH Spring

503194179

$59.97

3020

RH Spring

503194180

$59.97

3030

Spring Axle

503191344

$34.58

3040

Plastic Bushing

503191345

$6.89

3050

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

3070

Black, Wheel 165 Ass'y | Includes 3070 to 3070,002

503195004

$49.97

3070.001

Ball Bearing

503191778

$11.46

3070.002

Retaining Ring

415129598

$8.92

3120

Upper Shaft

503191776

$46.12

3130

Bushing

503191775

$15.26

3140

Retaining Ring

503191782

$13.95

3150

Socket Set Screw M6 X 8

206260844

$1.25

3170

Washer

503192491

$4.38

3180

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$11.52

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

ROD_LINK - Call your local BRP dealership

503195008

Unavailable

4010

Shock Position Decal

516005609

$16.89

4030

Bar Axle

503191192

$40.74

4060

Washer

503175800

$3.26

4070

Socket Screw M10 X 90

205009044

$7.23

4080

Elastic Locking Nut M10

233601466

$1.74

4090

Bar Axle

503191192

$40.74

4100

Washer

503175800

$3.26

4120

Socket Screw M10 X 90

205009044

$7.23

4130

Elastic Locking Nut M10

233601466

$1.74

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5020

Elastic Locking Nut M10

233601466

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5620

Spacer

503190526

$8.72

5630

Washer

503192494

$3.11

5640

Hex. Screw M8 X 55

207085586

$6.11

5650

Elastic Flange Nut M8

233281466

$0.83
