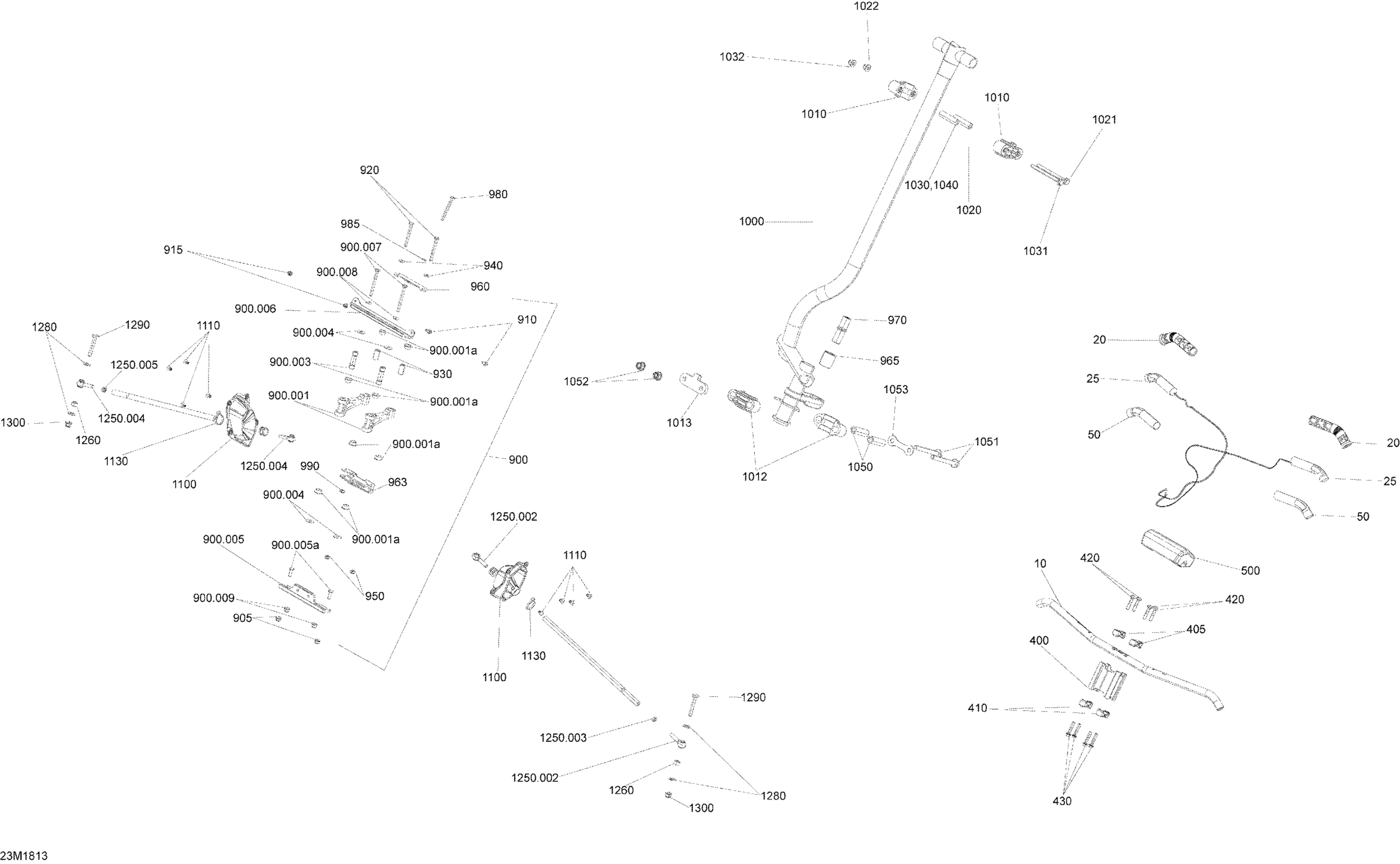

Ski-Doo MXZ 600RS - Racing, 2018 Steering MXZ RS Diagram

#

Description
Price

10

Sunburst Yellow, Handle Bar

506153256

$139.99

20

Grip 148mm

506152560

$16.99

25

Heated Film

506152856

$49.99

50

Thermal Insulation

506153176

$6.19

400

Riser

506153061

$92.99

405

Steering Support

506152894

$14.99

410

Steering Support

506152894

$14.99

420

Button Head Torx Screw M8 X 38

250000904

$2.19

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.19

500

Steering Pad Ass'y

506152994

$57.99

900

Steering Linkages Ass'y | Includes 900 to 900j

506152951

$234.99

900.001

Swivel Arm | Includes 900a to 900a2

506152952

Unavailable

900,001a

Bushing

503194671

$7.13

900.003

Swivel Pivot

506152792

$29.99

900.004

Washer

503191800

$2.19

900.005

Driving Shaft Support | Includes 900d to 900d2

506152949

Unavailable

900,005a

Clinch Stud

250300038

$4.39

900.006

Support Plate

506152955

Unavailable

900.007

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900.008

Washer

503192494

$3.29

900.009

Elastic Flange Nut M8

233281466

$1.49

905

Hex. Elastic Flange Nut M8

233281416

$1.49

910

Hex. Flange Screw M6 X 20

207662044

$2.09

915

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

920

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

930

Swivel Pivot

506152957

$29.99

940

Washer

503192494

$3.29

950

Hex. Elastic Stop Nut M8

232581414

$1.49

960

Swivel Bar

506152958

$109.99

963

Swivel Bar

506152959

$109.99

965

Steering Lever Spacer

506152956

$19.99

970

Pivot

506152960

$29.99

980

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

985

Washer

503192494

$3.29

990

Hex. Elastic Stop Nut M8

232581414

$1.49

1000

Main Tube

506152944

$269.99

1010

Half-Housing

506152293

$13.49

1012

Half-housing

506152993

$13.49

1013

Spacer

506152961

$16.49

1020

Housing Bushing

506152297

$13.49

1021

Hex. Flange Screw M6 X 75

207667554

$4.49

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.19

1030

Housing Bushing

506152297

$13.49

1031

Hex. Flange Screw M6 X 75

207667554

$4.49

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.19

1040

Housing Bushing

506152297

$13.49

1050

Housing Bushing

506152937

$13.49

1051

Hex. Flange Screw M8 X 75

207687544

$7.59

1052

Hex. Elastic Flange Nut M8

233281416

$1.49

1053

Stopper Plate

506152938

$13.49

1100

Cap

506153294

$27.99

1110

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1130

Tie-Rap 180 mm

414115200

$1.49

1250

Rod Ass'y | Includes 1250 to 1250g

506153020

$71.99

1250.002

LH Threaded Ball Joint

506152344

$41.49

1250.003

LH Threaded Hex. Jam Nut M10

250100016

$1.49

1250.004

RH Threaded Ball Joint

506152684

$44.49

1250.005

RH Threaded Hex. Jam Nut M10

732610010

$1.49

1260

Washer

506152713

$15.99

1280

Washer

506152582

$4.69

1290

Hex. Screw M10 X 1.5 X 65

207006544

$2.99

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.69
