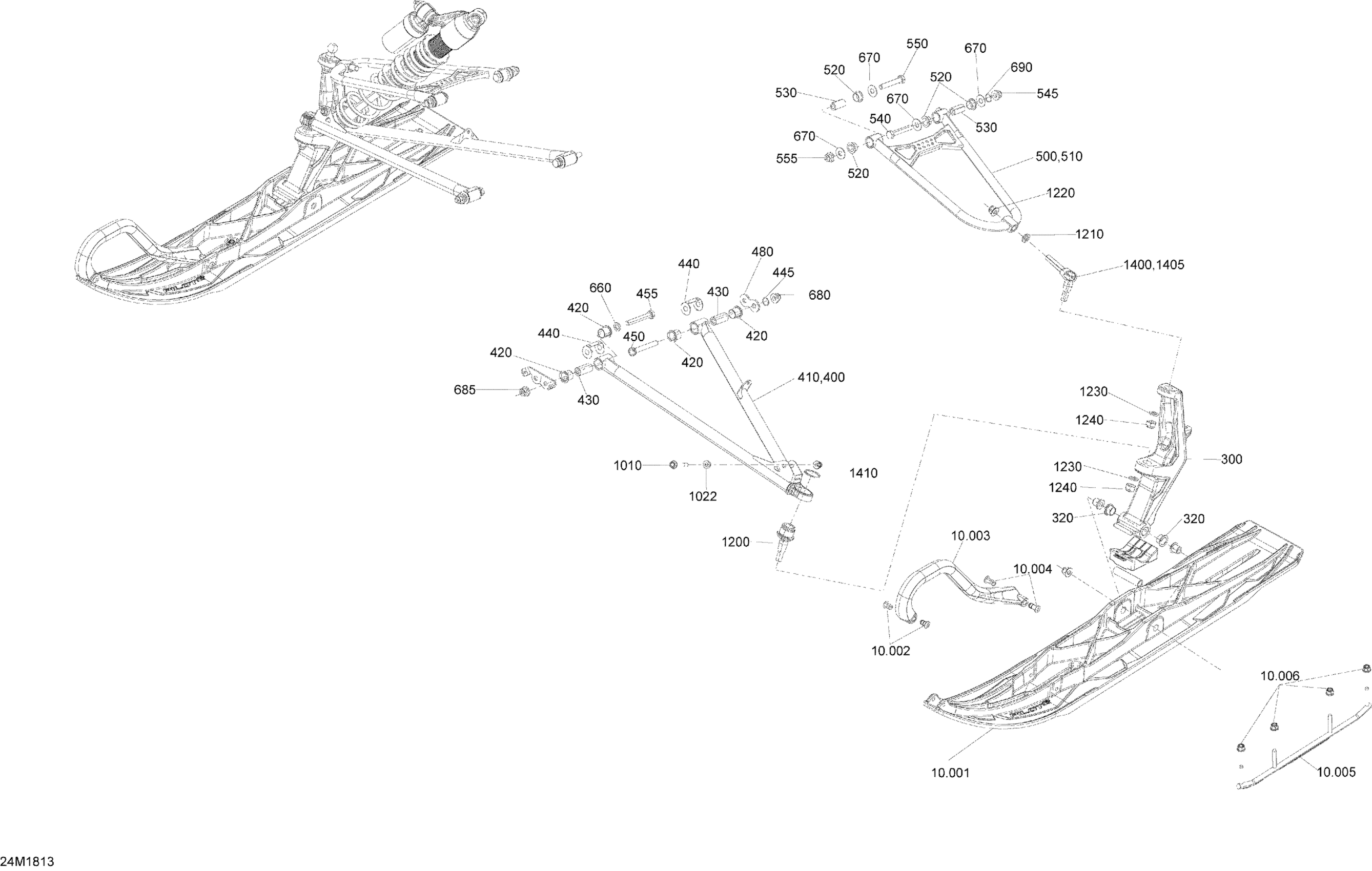

Ski-Doo MXZ 600RS - Racing, 2018 Front Suspension And Ski MXZ RS Diagram

#

Description
Price

10.001

Black, Racing Ski

505074670

$184.99

10.002

Retainer 17mm long

505071812

$4.43

10.003

Black Handle

505073138

$34.58

10.004

Retainer 23mm Long

505072133

$5.03

10.005

Runner Kit

860201697

$164.58

10.006

Hex. Flange Elastic Nut M8

233281414

$1.14

300

Black, Ski Leg

505074163

$218.43

320

Leg Bushing

505072690

Unavailable

400

RH Lower Arm

505074099

$193.82

410

LH Lower Arm

505074098

$193.82

420

Cushion

503191766

$5.71

430

Aluminum Bushing

505072401

$16.12

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

480

Rear Reinforcement

505074424

$9.62

500

LH Upper Arm

505074104

$193.82

510

RH Upper Arm

505074105

$193.82

520

Bushing

505073018

$7.40

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

1010

Hex. Flange Screw M8 X 58

250000824

$1.74

1020

Hex. Flange Screw M8 X 58

250000824

$1.74

1022

Spacer

505073892

$2.17

1200

Ball Joint

505074133

$51.51

1210

Washer

503189276

$3.20

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1400

Upper Ball Joint

505072257

$16.89

1405

Upper Ball Joint This part replaces 505073491.

505073561

$52.28

1410

Snap Ring

293370098

$3.11
