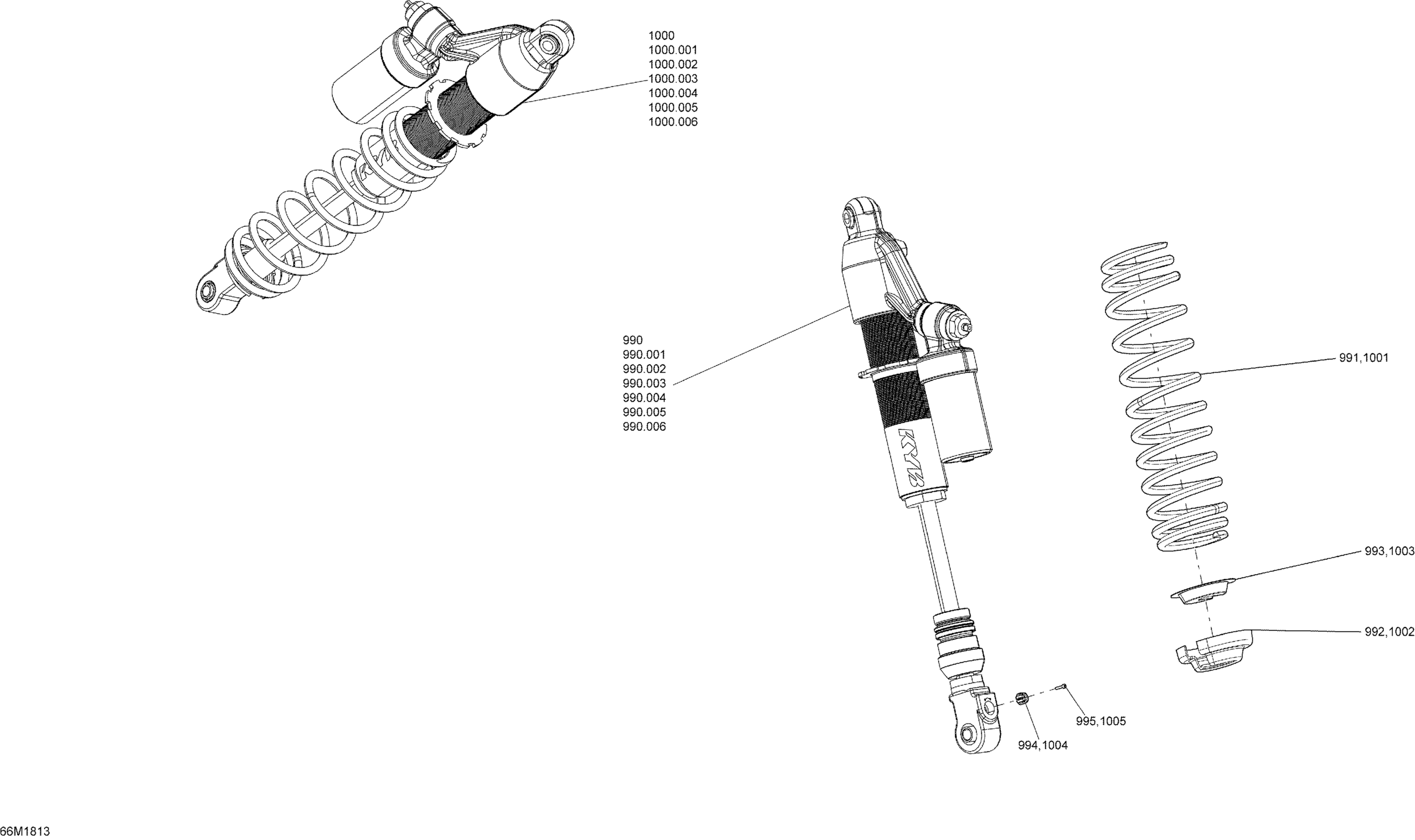

Ski-Doo MXZ 600RS - Racing, 2018 Front Shocks MXZ - 600 RS Diagram

Description

Price

990

LH Front Shock | Includes 990 to 990,006

505074215

$877.49

990.001

O-Ring

415093807

$34.58

990.002

Piston Ring | Not Shown

415093806

$14.97

990.003

Air Valve

505070398

$17.66

990.004

Screw | Not Shown

505070399

$4.00

990.005

O-Ring

505070400

$4.38

990.006

O-Ring

415093804

$4.38

991

Deep Black, Spring

505073537

$66.89

992

Spring Stopper

505072635

$33.82

993

Cap

706200793

$4.42

994

Adjustment Knob

505072753

$2.08

995

Allen Screw M3 X 0.5 X 10

250000644

$1.74

1000

RH Front Shock | Includes 1000 to 1000,006

505074216

$877.49

1000.001

O-Ring

415093807

$34.58

1000.002

Piston Ring | Not Shown

415093806

$14.97

1000.003

Air Valve

505070398

$17.66

1000.004

Screw | Not Shown

505070399

$4.00

1000.005

O-Ring

505070400

$4.38

1000.006

O-Ring

415093804

$4.38

1001

Deep Black, Spring

505073537

$66.89

1002

Spring Stopper

505072635

$33.82

1003

Cap

706200793

$4.42

1004

Adjustment Knob

505072753

$2.08

1005

Allen Screw M3 X 0.5 X 10

250000644

$1.74
