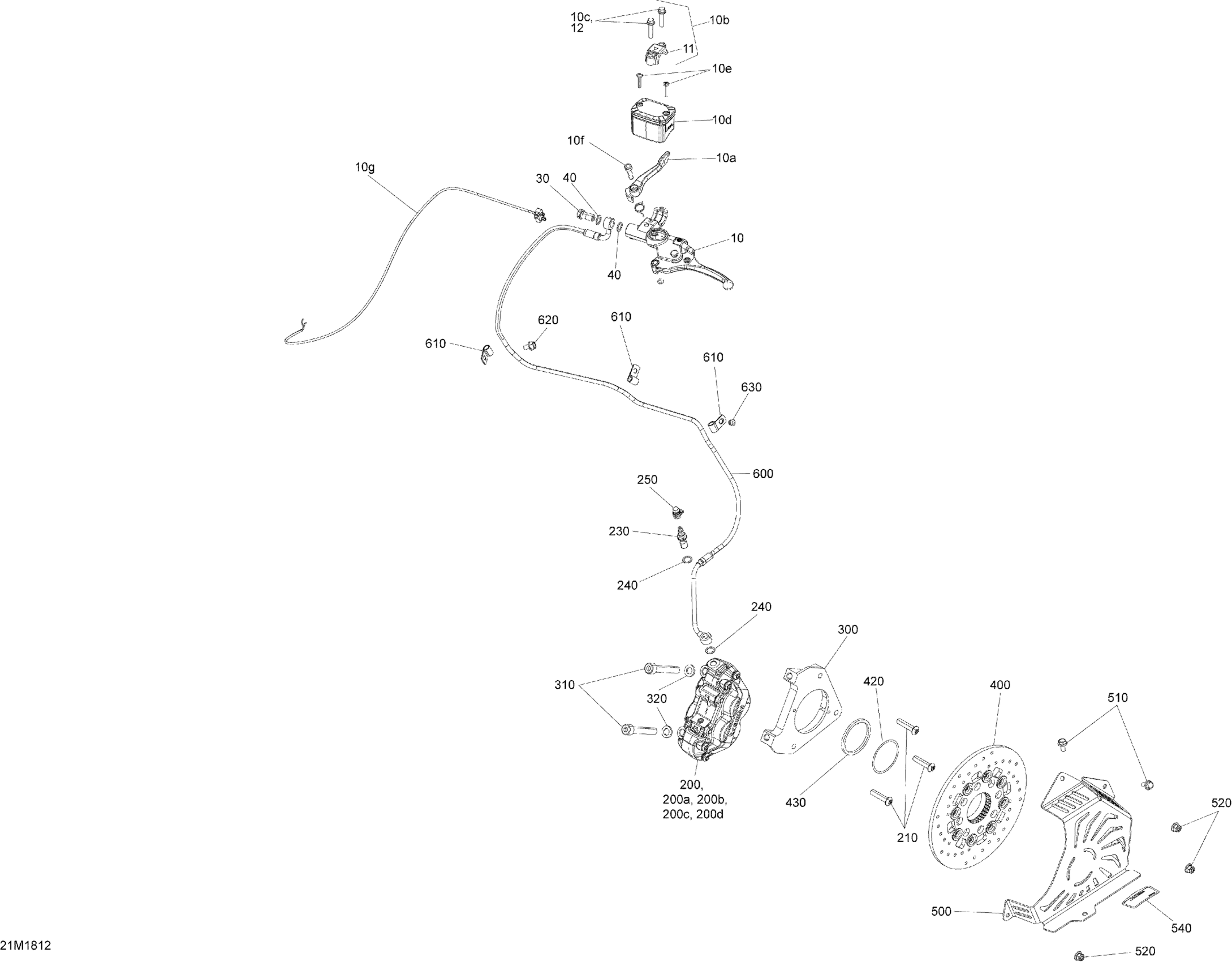

Ski-Doo MXZ 600RS - Racing, 2018 Brakes MXZ - 600 RS Diagram

#

Description
Price

10

Cylinder Master | Includes 10 to 10g

507032614

$189.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10c

Hex. Flange Screw M6 X 25

250000447

$2.11

10d

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10e

Screw M4 X 20

415129356

$2.22

10f

Pin Ass'y

415030000

$19.99

10g

Microswitch

507032601

$72.99

11

Clamps | Includes 75a to 75b

719000049

$14.83

12

Hex. Flange Screw M6 X 25

250000447

$2.11

30

Banjo Bolt

507032551

$5.61

40

Copper Washer

705601628

$4.44

200

Brake Caliper Ass'y | Includes 200 to 200d

507032613

$540.49

200a

Brake Pads Kit

507032615

$116.49

200b

Pin & Spring Kit

507032616

$42.99

200c

Spring Plate

507032617

$59.49

200d

Spring Clips

507032618

$34.99

210

Screw-torx Button Head M8 X 35

250000971

$5.03

230

Banjo Bolt/ Bleeder

705601201

$19.99

240

Copper Washer

705601628

$4.44

250

Bleeder Bolt Cap

705601190

$4.44

300

Caliper Bracket

507032624

$121.99

310

Socket Screw M10 X 60

244006060

$3.59

320

Washer

503192496

$0.77

400

Disc Brake Ass'y

507032635

$253.99

420

O-Ring

293300134

$2.32

430

Spacer

507032612

$13.16

500

BLACK DISK PROTECTOR - Call your local BRP dealership

507032623

Unavailable

510

Torx Truss Screw M6 X 12

250000767

$2.00

520

Hex. Flange Elastic Nut M6

233261466

$2.00

540

Engine Guard Warning Decal

516007652

$0.01

600

Brake Hose

507032609

$62.49

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

630

Blind Rivet 3/16

293150231

$0.32
