Description

Price

1

Fixed Flange Ass'y

417224196

$459.99

2

Sheave Drive Pulley Sliding Ass'y | Included 10a.b to 10a.b.g

417224578

$519.99

2a

Bushing

293250389

$21.99

2b

Circlip

293370137

$3.28

2c

Interior Roller Pullet

417224909

$70.99

2d

Pulley Roller Ext

417224916

$31.99

2e

Axle - 8mm

417224277

$10.49

2f

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

3

Spider Ass'y | Included 3 to 3e

417224055

$319.99

3a

Spring Guide

417224151

$10.16

3b

Roller Pulley Ass'y

417224947

$35.99

3c

Axle - 10mm

417224204

$10.49

3d

Thrust Washer

417224868

$2.32

3e

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

4

Clutch Spring

417224169

$28.49

5

Seat Spring

417224003

$10.38

6

Circlip

293370116

$3.28

7a

Ramp 960

417224112

$32.99

7b

Molded Cam

417224113

$8.89

7c

RH Lever

417224086

$9.10

7d

LH Lever

417224114

$5.61

7e

Pivot 26mm

417224220

$5.79

8

Pin Ramp

417224694

$10.49

9

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10

VIbration Damper

417224682

$149.99

11

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

40

Warning Decal

516007667

Unavailable

100

Pulley-driven

417127556

$689.99

105

Bushing

417127300

$63.99

120

Washer

503183100

$3.17

130

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

140

Spacer

504149100

$12.99

150

Spacer

417300252

$5.49

160

Spacer

417300265

$2.29

170

Shim

504112000

$8.59

180

Spacer

417300399

$17.49

200

Drive Belt

417300534

$219.99

300

Belt Guard

417300479

$77.99

330

FRONT BRACKET - Call your local BRP dealership

417300547

Unavailable

340

Avex Rivet

390909200

$0.30

360

CVT AIR DUCT - Call your local BRP dealership

417300552

Unavailable

370

Pop Rivet 3/16"

293150103

$0.55

400

Torx Truss Screw M6 X 12

250000767

$2.00

450

Support

417300546

$42.99

460

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

500

Belt Guard Bracket

417300482

$14.49

505

Insert M5 X 0.8

293450268

$2.09

510

Hex. Flange Screw, Scotch Grip

207551634

$2.00

520

Hair Pin

114045200

$11.11

550

Stopper

417300506

$12.99

600

Ramp 974

417224274

$31.99

610

Pivot 38mm

417224222

$5.79

620

Weight

417224363

$4.44

630

Spacer

417224060

$24.49

650

Release Spring

417127625

$46.49

660

CVT Air Duct

417300565

$48.99

671

Pop Rivet 3/16"

293150103

$0.55

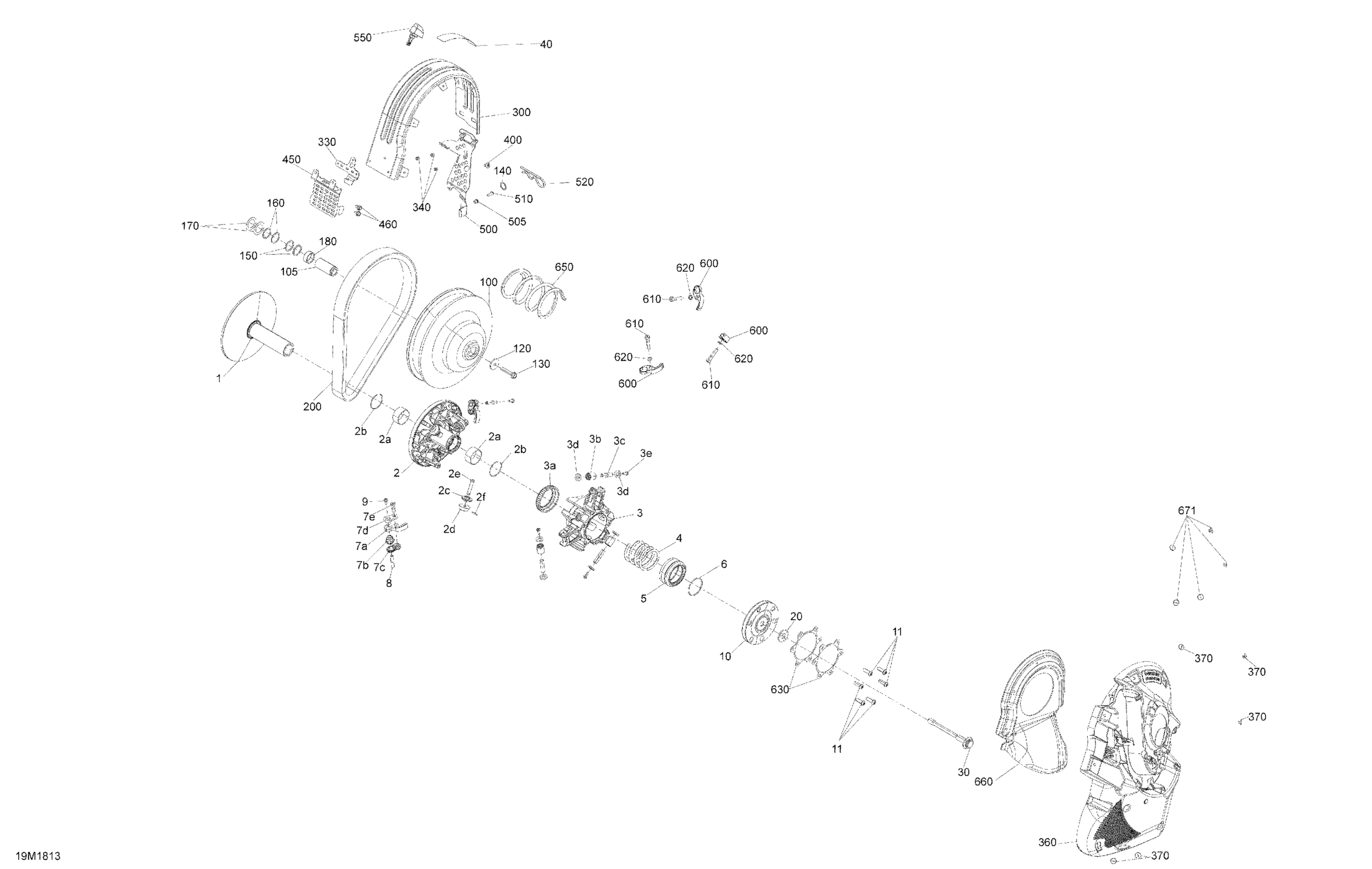

Ski-Doo 1- MXZ 600RS - Racing, 2018 05- Pulley MXZ RS Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Included 10a.b to 10a.b.g

Bushing

Circlip

Interior Roller Pullet

Pulley Roller Ext

Axle - 8mm

Spring Pin 2.6MM X 20.5MM

Spider Ass'y | Included 3 to 3e

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp 960

Molded Cam

RH Lever

LH Lever

Pivot 26mm

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Warning Decal

Pulley-driven

Bushing

Washer

Hex. Flange Screw M8 X 45, Scotch Grip

Spacer

Spacer

Spacer

Shim

Spacer

Drive Belt

Belt Guard

FRONT BRACKET - Call your local BRP dealership

Avex Rivet

CVT AIR DUCT - Call your local BRP dealership

Pop Rivet 3/16"

Torx Truss Screw M6 X 12

Support

Flange Screw M6 X 10, Scotch Grip

Belt Guard Bracket

Insert M5 X 0.8

Hex. Flange Screw, Scotch Grip

Hair Pin

Stopper

Ramp 974

Pivot 38mm

Weight

Spacer

Release Spring

CVT Air Duct

Pop Rivet 3/16"
