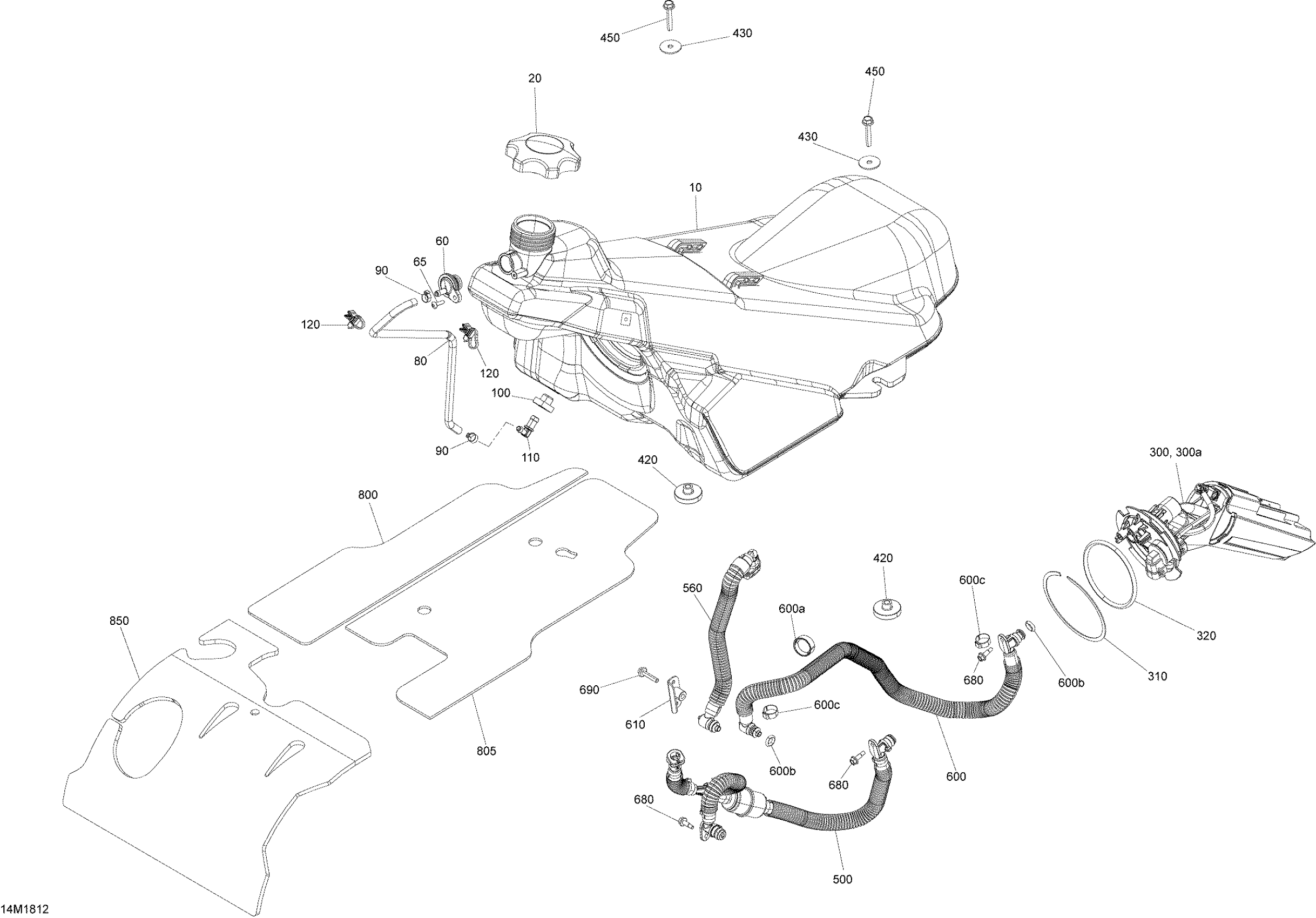

Ski-Doo MXZ 600RS - Racing, 2018 Fuel MXZ - 600 RS Diagram

#

Description
Price

10

Fuel Tank

513033843

$311.51

20

Fuel Tank Cap

513033752

$56.12

20

Fuel Tank Cap | Europe

513033755

$56.12

60

Fitting

513033864

$36.89

65

Truss Torx Screw K40 X 16

250000918

$2.06

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

90

Oeticker Clamp

293650262

$1.00

100

Grommet

709200285

$7.09

110

Male Connector

414580700

$3.38

120

Tie-Rap Clip

710002896

$4.60

300

Fuel Pump Ass'y | Includes 300 to 300a

513033850

$257.66

300a

Fuel Filter

415131068

Unavailable

310

Circlip

513033798

$12.83

320

O-Ring

513033862

$17.66

420

Bushing

513033807

$7.48

430

Washer | Not Shown

503193995

$4.38

450

Hex. Flange Screw S.Grip M6 X 35

207563544

$1.74

500

Hose Ass`y

513033909

$79.97

560

Kit Hose Fuel Tank This part replaces 513033908.

861805525

$148.43

600

Hose Ass'y | Includes 600 to 600c

513033906

$148.43

600a

Ring

513033910

$6.86

600b

O-Ring

513033668

$9.45

600c

Crimp Clamp

293650053

$2.42

610

Braket Ass'y

513033897

$15.35

680

Hex. Flange Screw M5 X 16

250000911

$0.70

690

Hex. Flange Screw M5 X 25

207552544

$5.22

800

Insulated Foam

513033866

$10.77

805

Insulated Foam

513033867

$15.35

850

Insulated Front Foam

513033896

$15.35
