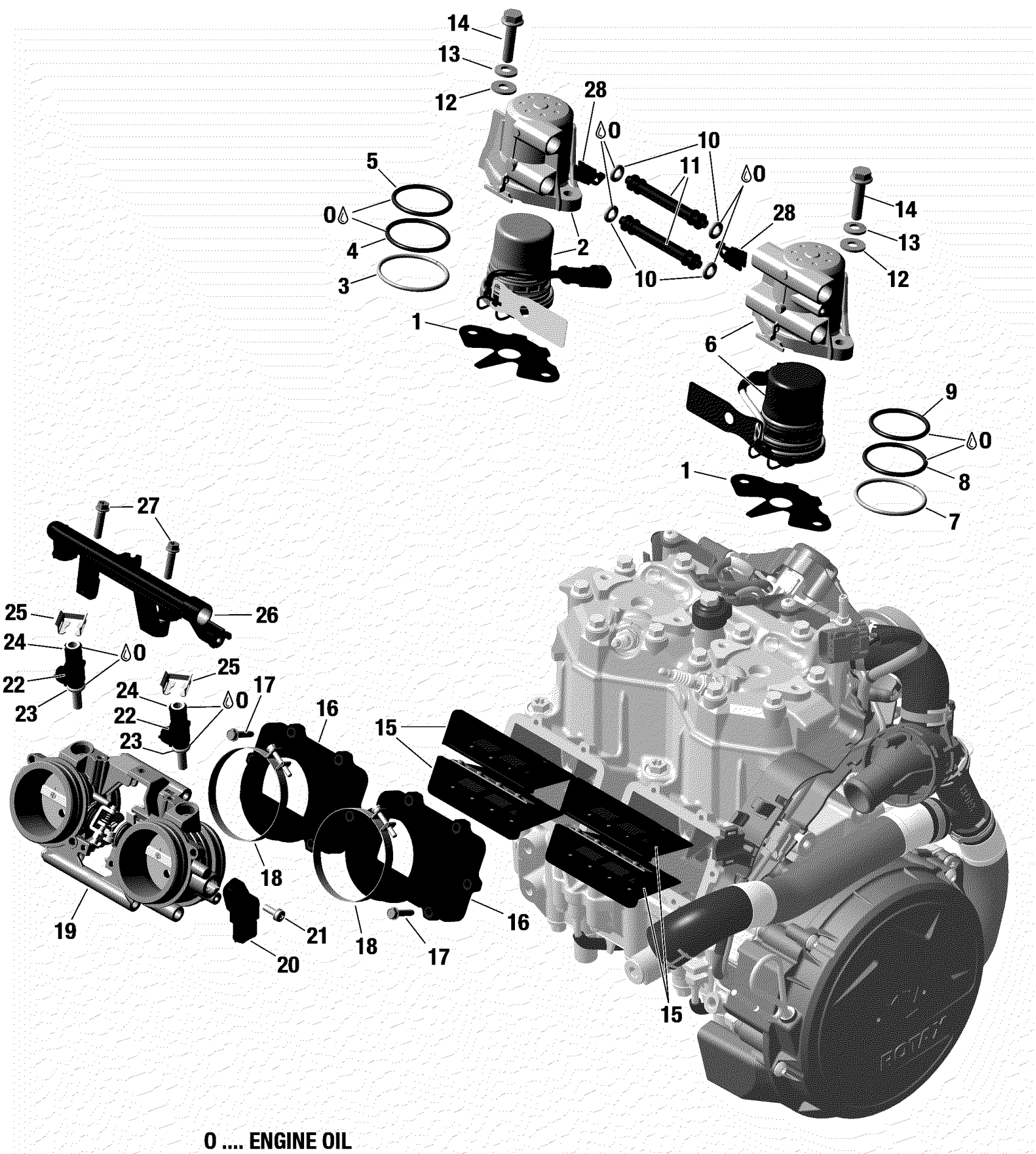

Ski-Doo MXZ 600RS - Racing, 2018 EFI Diagram

#

Description
Price

1

Gasket

420430056

$7.57

1

Gasket

420430056

$7.57

1

Gasket

420430056

$7.57

2>5

Injector PTO

420874843

$498.48

2>5

Injector PTO

420874843

$498.48

2>5

Injector PTO

420874843

$498.48

3

Crush Ring

415129497

$7.16

3

Crush Ring

415129497

$7.16

3

Crush Ring

415129497

$7.16

4

O-Ring

415129498

$12.13

4

O-Ring

415129498

$12.13

4

O-Ring

415129498

$12.13

5

O-Ring

415129499

$6.61

5

O-Ring

415129499

$6.61

5

O-Ring

415129499

$6.61

6>9

Injector MAG

420874844

$498.48

6>9

Injector MAG

420874844

$498.48

6>9

Injector MAG

420874844

$498.48

7

Crush Ring

415129497

$7.16

7

Crush Ring

415129497

$7.16

7

Crush Ring

415129497

$7.16

8

O-Ring

415129498

$12.13

8

O-Ring

415129498

$12.13

8

O-Ring

415129498

$12.13

9

O-Ring

415129499

$6.61

9

O-Ring

415129499

$6.61

9

O-Ring

415129499

$6.61

10

O-Ring

420430775

$3.38

10

O-Ring

420430775

$3.38

10

O-Ring

420430775

$3.38

11

Tube

420874190

$5.06

11

Tube

420874190

$5.06

11

Tube

420874190

$5.06

12

Washer

420901550

$2.00

12

Washer

420901550

$2.00

12

Washer

420901550

$2.00

13

Spring Washer

420245462

$0.96

13

Spring Washer

420245462

$0.96

13

Spring Washer

420245462

$0.96

14

Hex Screw M8 x 35

420840090

$2.00

14

Hex Screw M8 x 35

420840090

$2.00

14

Hex Screw M8 x 35

420840090

$2.00

15

Reed Valve Ass'y

420924798

$38.03

15

Reed Valve Ass'y

420924798

$38.03

15

Reed Valve Ass'y

420924798

$38.03

16

Intake Socket

420867390

$105.94

16

Intake Socket

420867390

$105.94

16

Intake Socket

420867390

$105.94

17

Tapping Screw M5 X 22

420841550

$1.63

17

Tapping Screw M5 X 22

420841550

$1.63

17

Tapping Screw M5 X 22

420841550

$1.63

18

Clamp

420251209

$8.09

18

Clamp

420251209

$8.09

18

Clamp

420251209

$8.09

19

Throttle Body

420893807

$1,191.76

19

Throttle Body

420893807

$1,191.76

19

Throttle Body

420893807

$1,191.76

20

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

20

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

20

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

21

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22>24

Injection Valve Ass'y | Includes 4 to 6

420274250

$155.19

22>24

Injection Valve Ass'y | Includes 4 to 6

420274250

$155.19

22>24

Injection Valve Ass'y | Includes 4 to 6

420274250

$155.19

23

O-Ring

420431890

$4.95

23

O-Ring

420431890

$4.95

23

O-Ring

420431890

$4.95

24

O-Ring

420631220

$11.48

24

O-Ring

420631220

$11.48

24

O-Ring

420631220

$11.48

25

Injector Clip

420853030

$2.46

25

Injector Clip

420853030

$2.46

25

Injector Clip

420853030

$2.46

26

Fuel Rail

420874153

$22.36

26

Fuel Rail

420874153

$22.36

26

Fuel Rail

420874153

$22.36

27

Torx Flange Screw M6 X 25

420440234

$2.91

27

Torx Flange Screw M6 X 25

420440234

$2.91

27

Torx Flange Screw M6 X 25

420440234

$2.91

28

Tie Rap

420951785

$4.15

28

Tie Rap

420951785

$4.15

28

Tie Rap

420951785

$4.15
