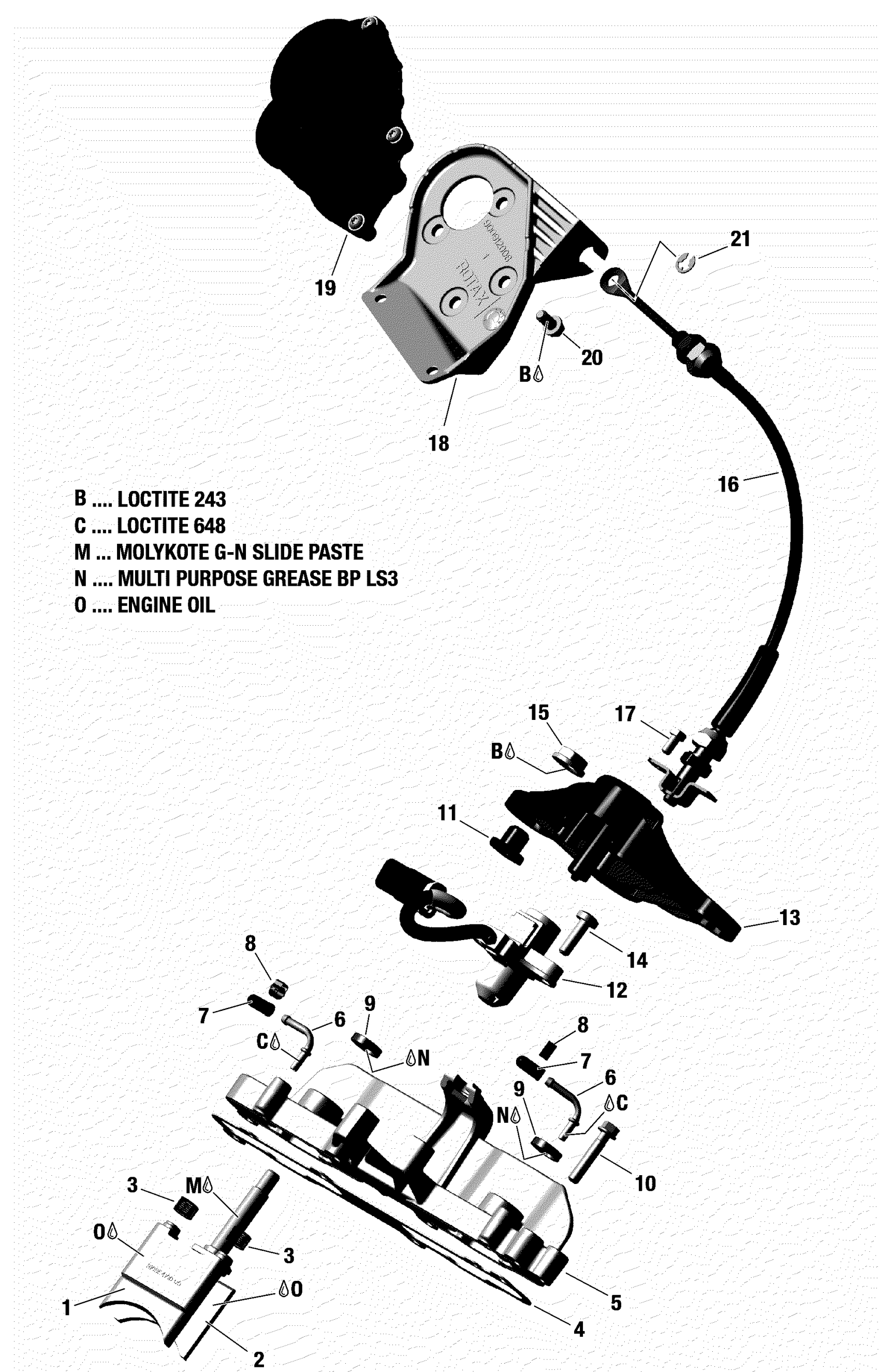

Ski-Doo MXZ 600RS - Racing, 2018 Rave Valve Diagram

#

Description
Price

1

Exhaust Valve Upper

420954100

$72.99

2

Exhaust Valve Lower

420954095

$96.99

3

Spring

420238558

$5.49

4

Gasket Valve Rod Housing | Included in gasket kit

420631001

$13.49

5>6

Valve Rod Housing Ass'y | Includes 5 to 6

420954065

$95.99

6

Fitting 90D

420924051

$10.99

7

Closure Cap

420960771

$4.69

8

Clamp 5.8-7.0MM

420853138

$2.19

9

Oil Seal | Included in gasket kit

420950732

$9.49

10

Torx Flange Screw M6 X 30

420440647

$2.09

11

Collar Nut M8

420942331

$4.49

12>13

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$119.99

14

Torx Flange Screw M6 X 20

420441386

$2.19

15

Nut M12 X 1.5

420942190

$14.49

16

Bowden Cable Ass'y

420997033

$124.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Mounting Bracket

420912008

$19.49

19

Servo Motor Ass'y

420889432

$339.99

20

Hex. Flange Screw M6 X 12

420440149

$2.19

21

Retaining Ring

420945710

$1.49
