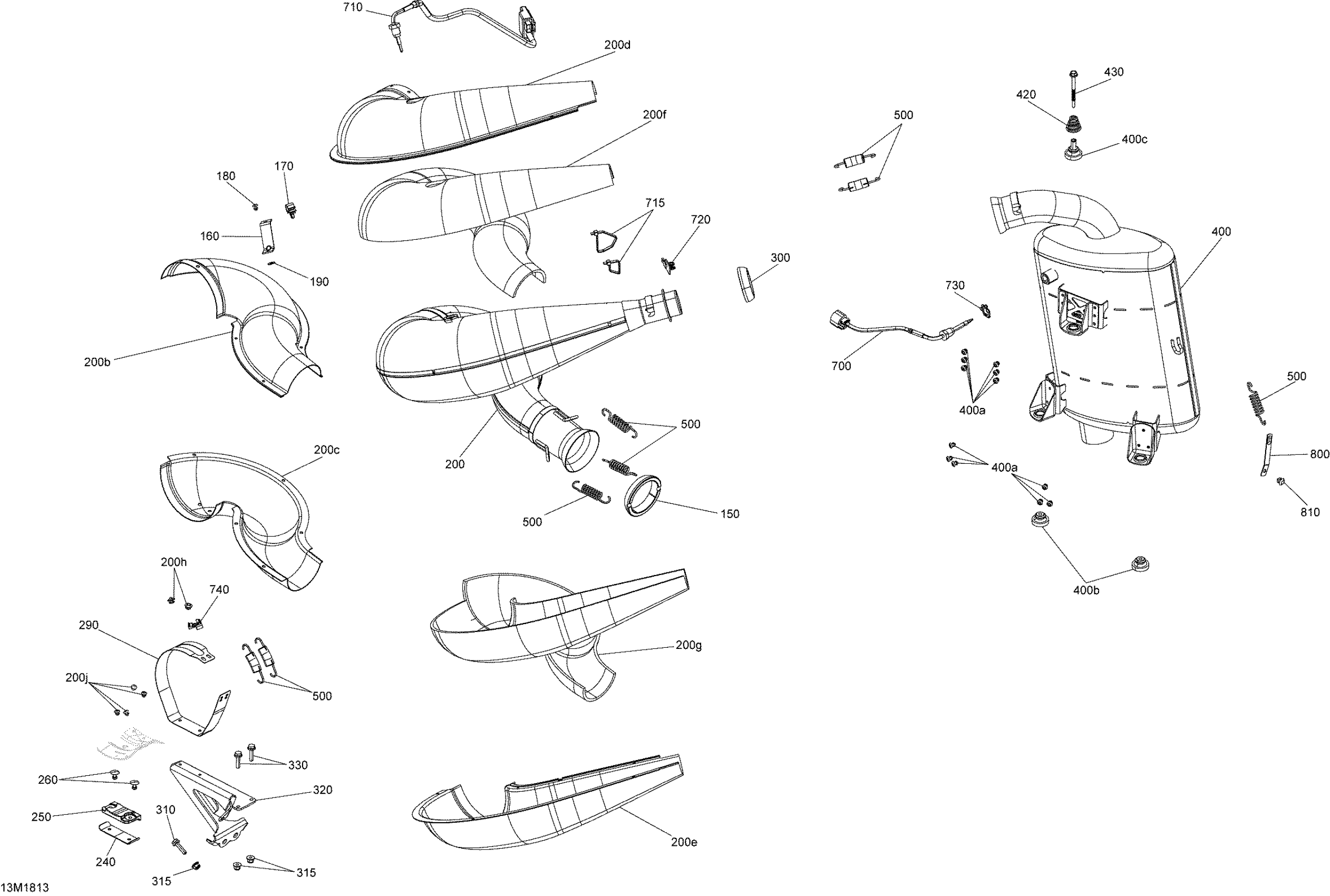

Ski-Doo MXZ 600RS - Racing, 2018 Exhaust MXZ RS Diagram

#

Description
Price

150

Exhaust Gasket

514053487

$27.99

160

Support

514055512

$3.09

170

Tie Rap Mount (screwable)

515176795

$5.49

180

Avex Rivet

390909200

$1.49

190

Washer 3/16

514055537

$1.49

200

PIPE_TUNED ASSY - Call your local BRP dealership | Includes 200 to 200j

514055428

Unavailable

200b

Front Upper Aluminum Shell

514055222

$39.99

200c

Front Lower Aluminum Shell

514055223

$41.99

200d

Rear Upper Aluminum Shell

514055617

$84.99

200e

Rear Lower Aluminum Shell

514055618

$84.99

200f

Insulated Wool

514055715

$21.99

200g

Wool

514055385

$21.99

200h

Avex Rivet

390909200

$1.49

200j

Avex Rivet

390909200

$1.49

240

Reinforcement Plate

514054638

$24.99

250

Bumper

514054275

$16.99

260

Pop Rivet 3/16"

293150103

$1.49

290

Retaining Strap

514055631

$36.99

300

Exhaust Gasket

514055294

$25.99

310

Hex. Flange Screw M6 X 25

207662544

$1.49

315

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

320

Welded Support

514055595

$74.99

330

Hex. Flange Screw M6 X 25

207662544

$1.49

400

Muffler Ass'y | Includes 400 to 400g

514055429

$795.49

400a

Avex Rivet

390909200

$1.49

400b

Stopper

514055203

$21.99

400c

Stopper Ass'y

514056138

$13.49

420

Spring

514055282

$6.49

430

Hex. Flange Screw M6

250000926

$1.49

500

Spring

514055198

$6.49

700

Temperature Sensor

514055423

$154.99

710

Module

515178170

$174.99

715

Tie-Rap 180 mm

414115200

$1.49

720

Support

514055393

$3.09

730

Tab Lock

514055100

$8.59

740

Tab Lock

514055704

$8.59

800

Spring Bracket

514055644

$19.49

810

Hemlock Rivet, 6.5 mm

293150096

$3.39
