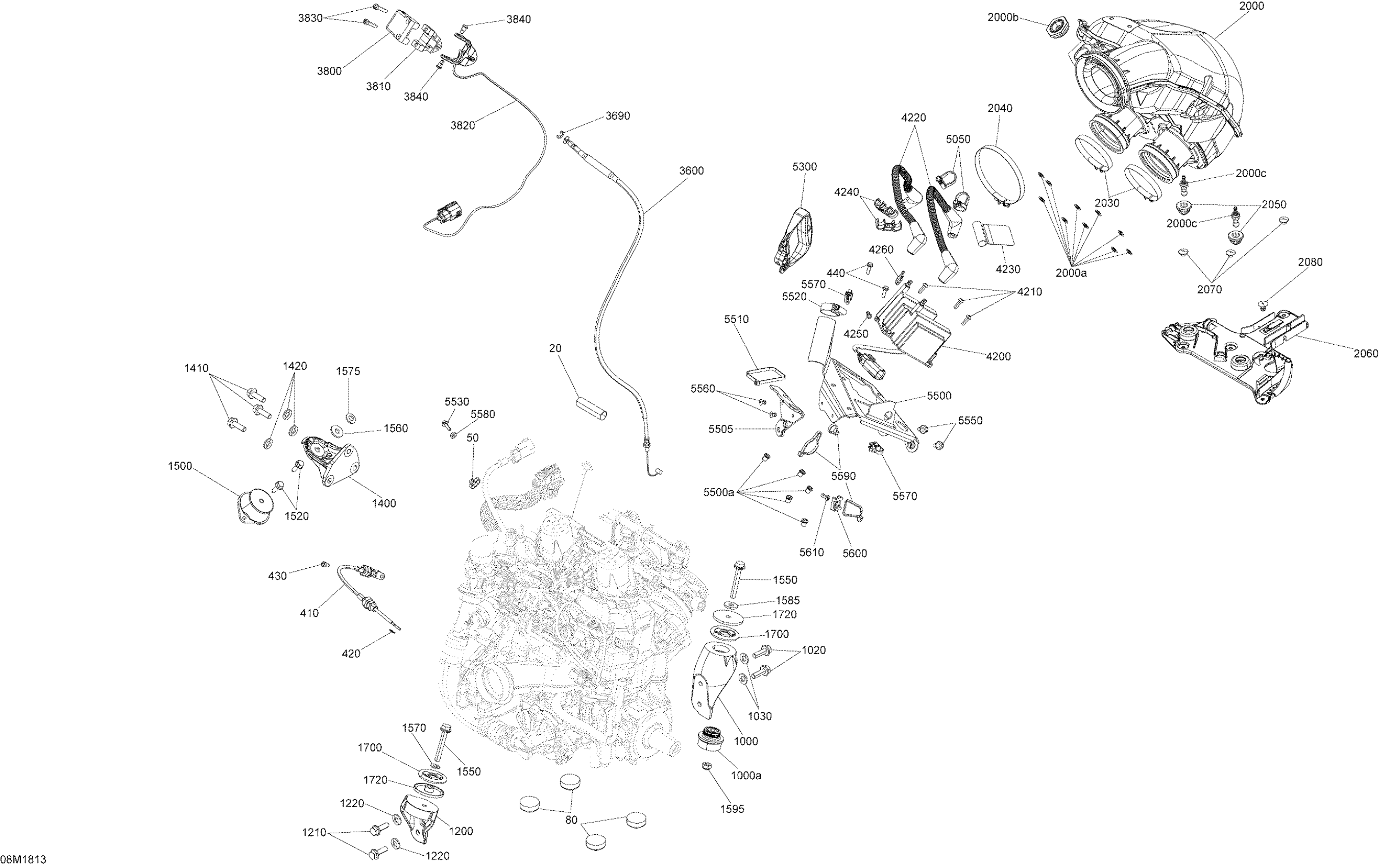

Ski-Doo MXZ 600RS - Racing, 2018 Engine MXZ - 600 RS Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

$5.22

50

Tie-Rap 180 mm

414115200

$0.09

80

Stopper

512061204

$22.28

410

Bowden Cable Ass'y

420997033

$105.35

420

Circlip

293370122

$4.00

430

Socket Head Screw M5 X 10

205551060

$1.30

440

Hex. Flange Screw, Scotch Grip

207551634

$1.66

1000

Support Ass'y | Includes 1000 to 1000b

512061283

$76.89

1000.001

Rubber Mount

512061284

Unavailable

1020

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

1030

Conical Spring Washer M8

250200146

$0.83

1200

Front PTO Support

512061025

$29.97

1210

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

1220

Conical Spring Washer M8

250200146

$0.83

1400

MAG Support

512061027

$36.12

1410

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

1420

Conical Spring Washer M8

250200146

$0.83

1500

Rubber Mount

512060360

$56.89

1520

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

1550

Hex. Flange Screw M8 X 55

207585544

$1.42

1560

Yellow, Washer

503183200

$3.00

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1575

Conical Spring Washer M8

250200146

$0.83

1585

Yellow, Washer

503183200

$3.00

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1700

Engine Stopper

512061137

$8.34

1720

Spacer

512061287

$10.08

2000

Chamber Ass'y | Includes 2000 to 2000,003

508000933

$171.51

2000.001

Push Nut

732610072

$1.72

2000.002

Rubber

512061083

$8.38

2000.003

Screw

420441840

$2.06

2030

GEMI Clamp

293650212

$6.26

2040

Gemi Clamp

293650247

$6.26

2050

Rubber Cap

420201630

$4.28

2060

Airbox Support

512061274

$10.57

2070

Pop Rivet 3/16"

293150103

$0.54

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3600

Throttle Cable Kit This part replaces 512061026.

860201880

$103.82

3690

Circlip

414274500

$0.74

3800

Upper Housing

512061248

$73.05

3810

Lower Housing

512061294

$73.05

3820

Throttle Ass'y

512061266

$114.58

3830

Socket Screw M5 X 25

205052544

$1.34

3840

Flange Screw M5x12

250000991

$6.18

4200

Ignition Coil

512061168

$129.97

4210

Torx Truss Screw M5 X 16, T25

250000578

$1.74

4220

Ignition Cable

512061166

$26.89

4230

Warning Decal, Injectors

516007661

Unavailable

4240

Spark Plug Wire Holder

512061238

$4.28

4250

Tie Wrap 94 mm | 4X4

293750001

$0.83

4260

Tie Wrap 94 mm | 4X4

293750001

$0.83

5050

Clamp

512060993

$5.22

5300

Starter Grip

512060136

$14.54

5500

Support | Includes 5500 to 5500b

512061276

$83.82

5500.001

Insert M5 X 0.8

293450268

$1.95

5505

Support

512061296

$18.43

5510

Tie Wrap 368 mm

293750008

$0.85

5520

Gear Clamp

509000931

$12.52

5530

Hex. Flange Screw, Scotch Grip

207551634

$1.66

5550

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

5560

Avex Rivet

390909200

$0.29

5570

Clip Tie-Rap

710002899

$8.45

5580

Spacer

505073892

$2.17

5590

Tie-Rap 180 mm

414115200

$0.09

5600

Tie Rap Mount

293750026

$2.41

5610

Pop Rivet 3/16"

390402300

$0.75
