Description

Price

1>13

Crankshaft Ass'y | Includes no. 1-8; 10-13

420686690

$1.00

2

Shim

420827767

$16.86

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420831955

$27.49

5

Ball Bearing 6208 | With drive pin

420832600

$79.49

6

Washer

420926190

$11.63

7

Oil Seal

420931910

$37.99

8

Ball Bearing This part replaces 420832603.

420832671

$104.99

9

Oil Seal | Included in gasket kit

420931284

$23.49

10

Woodruff Key

420246015

$3.17

11

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

12

Oil Seal

420931455

$35.99

13

Ball Bearing 6207 | With drive pin

420832575

$52.99

14

Needle Bearing

420832445

$27.49

15>16

Piston Ass'y | Includes no. 14-15 With ring

420893895

$228.99

16

Semi Trapez Ring

420815470

$68.99

17

Piston Pin

420916413

$38.49

18

Piston Circlip

420845106

$3.93

19

ENS.TIGE REP. *KIT-ROD REPAIR - Call your local BRP dealership

420891637

Unavailable

20

Rod Repair Kit - Call your local BRP dealership

420891639

$313.99

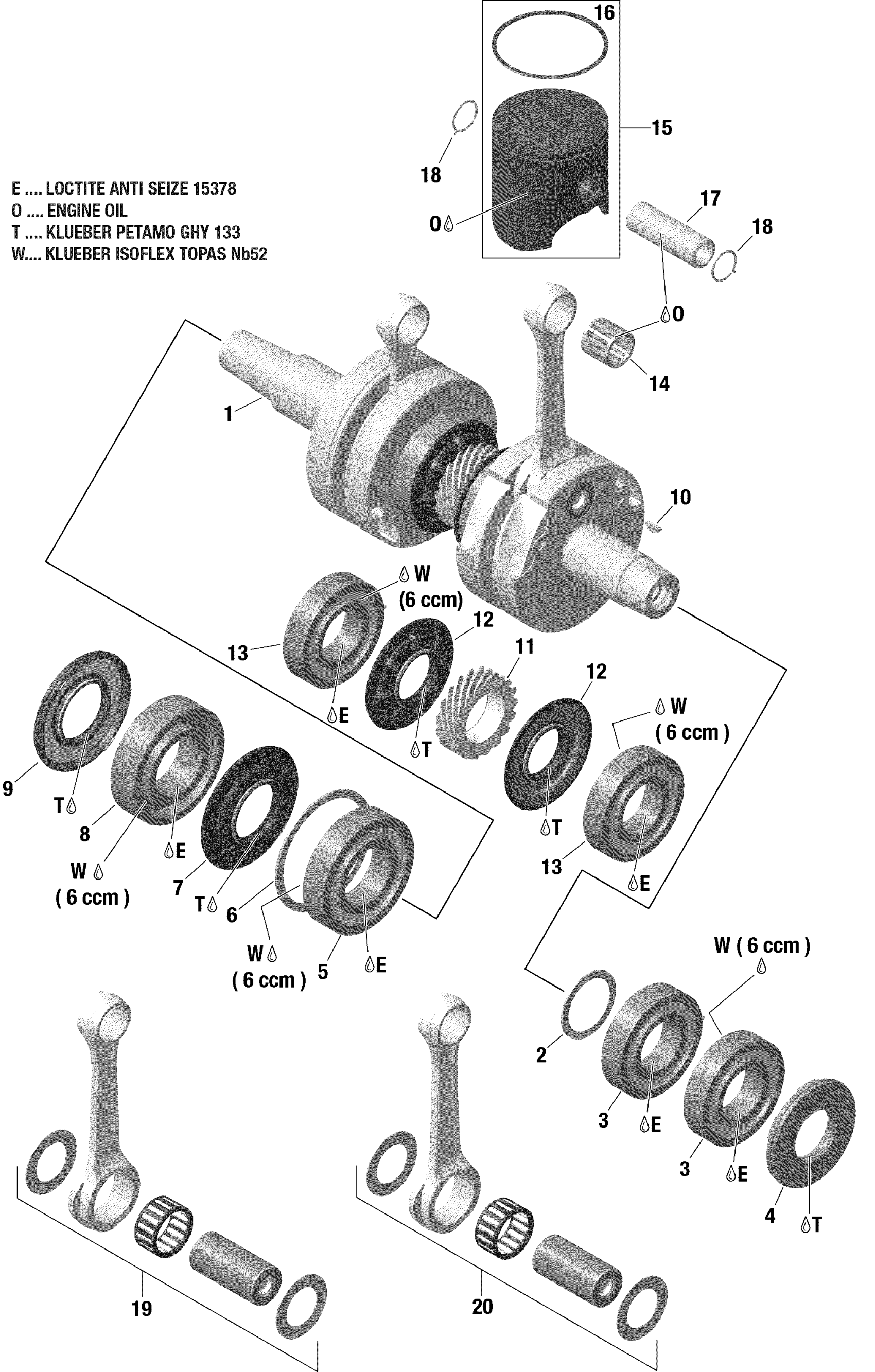

Ski-Doo 1- MXZ 600RS - Racing, 2018 01- Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes no. 1-8; 10-13

Shim

Ball Bearing 6207 | With drive pin

Oil Seal

Ball Bearing 6208 | With drive pin

Washer

Oil Seal

Ball Bearing This part replaces 420832603.

Oil Seal | Included in gasket kit

Woodruff Key

CENTRAL GEAR - Call your local BRP dealership

Oil Seal

Ball Bearing 6207 | With drive pin

Needle Bearing

Piston Ass'y | Includes no. 14-15 With ring

Semi Trapez Ring

Piston Pin

Piston Circlip

ENS.TIGE REP. *KIT-ROD REPAIR - Call your local BRP dealership

Rod Repair Kit - Call your local BRP dealership
