Description

Price

1>5, 14, 15

Crankcase Ass'y

420686671

$1.00

2

Center Pin 8 X 12

420632010

$4.01

3

Ball Bearing

420232100

$20.99

4

Impulse Fitting

420924529

$8.57

5

Check Valve

420956071

$24.99

6

Hex. Collar Screw M8 x 45

420640432

$8.57

7

Hex. Collar Screw M8 x 75

420640832

$13.16

8

Torx Flange Screw M6 X 35

420440274

$1.01

9

Torx Flange Screw M6 X 25

420440235

$2.11

10

O-Ring

420430622

$4.44

11

Plug Screw

420640457

$14.83

12

Oil Seal Cover

420812422

$14.83

13

Screw M6 X 20

420941436

$3.17

14

Closure Cap

420960771

$4.59

15

Clamp 5.8-7.0MM

420853138

$2.11

16

Oil Line 310MM

420201551

$7.51

17

Protector Tube

420460047

$14.22

18

Clamp

420853653

$7.41

19

Fitting

420874370

$14.83

20

Oil Line 105MM

420456530

$8.11

21

Closure Cap

420960279

$4.59

22

Clamp

420853308

$5.39

23

Clamp

420851458

$7.41

24>26

Oil Tank Ass'y | Includes 25 to 27

420956240

$73.99

25

Rubber Gasket

420850350

$5.39

26

Oil Tank Cap

420956250

$15.28

27

Shortblock engine 598RS

420059801

Unavailable

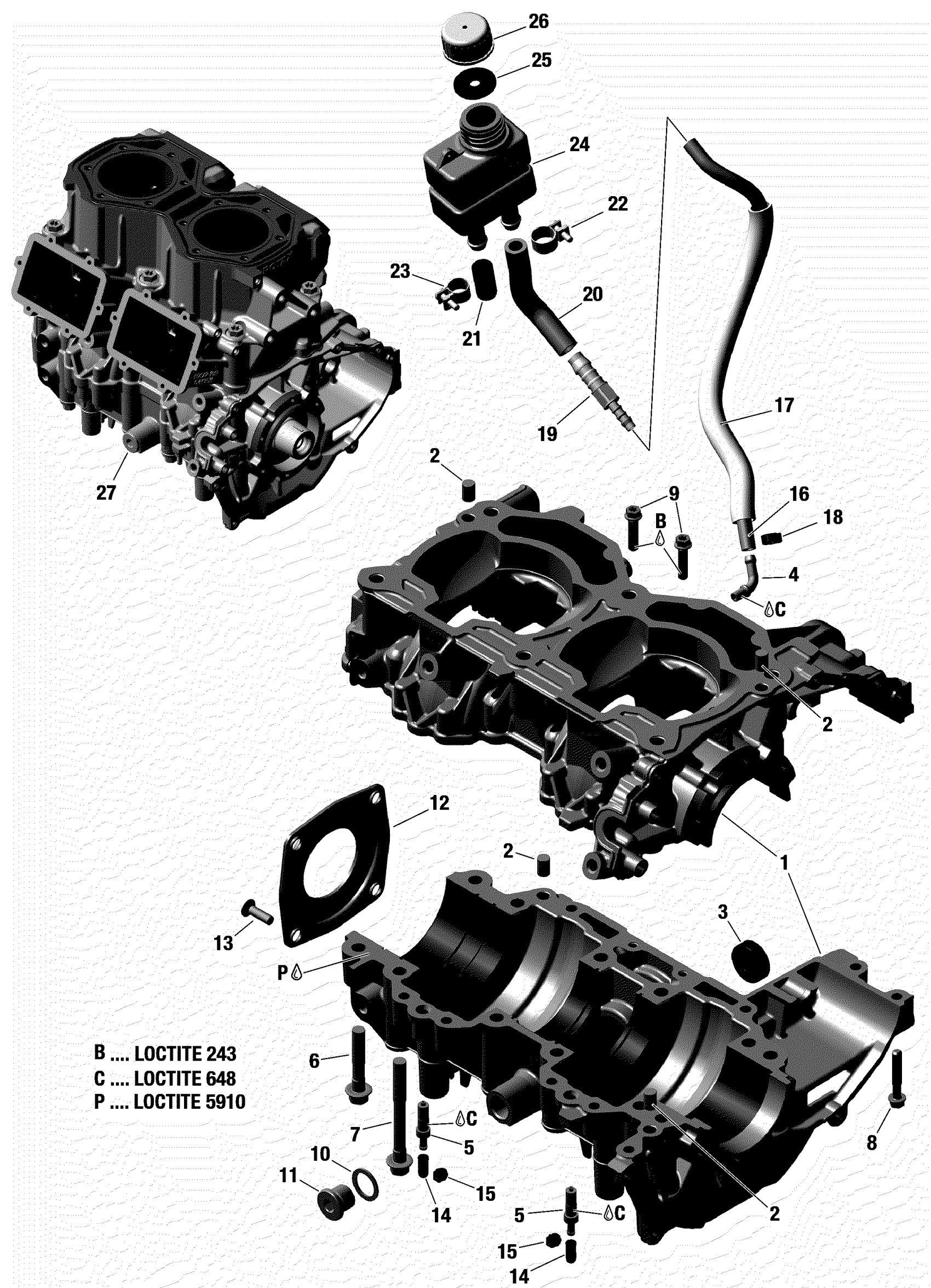

Ski-Doo 1- MXZ 600RS - Racing, 2018 01- Crankcase Diagram

Crankcase Ass'y

Center Pin 8 X 12

Ball Bearing

Impulse Fitting

Check Valve

Hex. Collar Screw M8 x 45

Hex. Collar Screw M8 x 75

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 25

O-Ring

Plug Screw

Oil Seal Cover

Screw M6 X 20

Closure Cap

Clamp 5.8-7.0MM

Oil Line 310MM

Protector Tube

Clamp

Fitting

Oil Line 105MM

Closure Cap

Clamp

Clamp

Oil Tank Ass'y | Includes 25 to 27

Rubber Gasket

Oil Tank Cap

Shortblock engine 598RS
