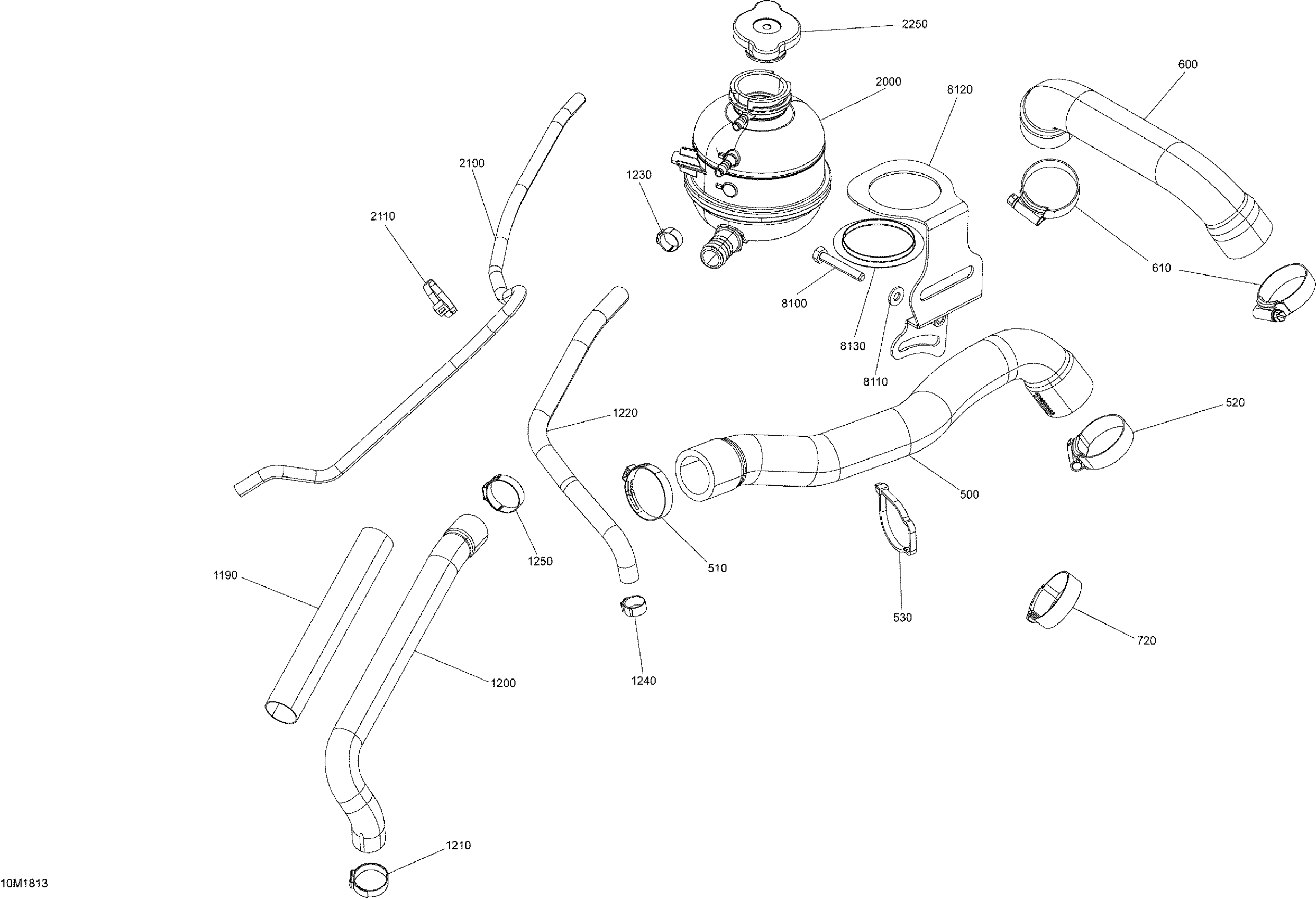

Ski-Doo MXZ 600RS - Racing, 2018 Cooling - 600 RS Diagram

Description

Price

500

Cooling Hose

509000963

Unavailable

510

Oetiker Gear Clamp

293650254

$7.16

520

Aba Gear Clamp, 26-38 MM

509000443

$5.68

530

Tie Wrap 368 mm

293750008

$0.85

610

Aba Gear Clamp, 26-38 MM

509000443

$5.68

720

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1200

Hose

509001141

$23.82

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1220

Cooling Hose

509000968

$9.86

1230

Oetiker Clamp

293650046

$2.33

1240

Oetiker Clamp

293650046

$2.33

1250

Oetiker Clamp

509001041

$2.75

2000

Coolant Tank

509001055

$86.89

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2110

Tie-Rap 180 mm

414115200

$0.09

2250

Radiator Pressure Cap

509000180

$11.69

8100

Hex. Screw M6 X 40

207064044

$1.48

8110

Flat Washer

250200039

$0.72

8120

Coolant Tank Support

518330338

$18.43

8130

Swivel Abutment

417127116

$8.06
