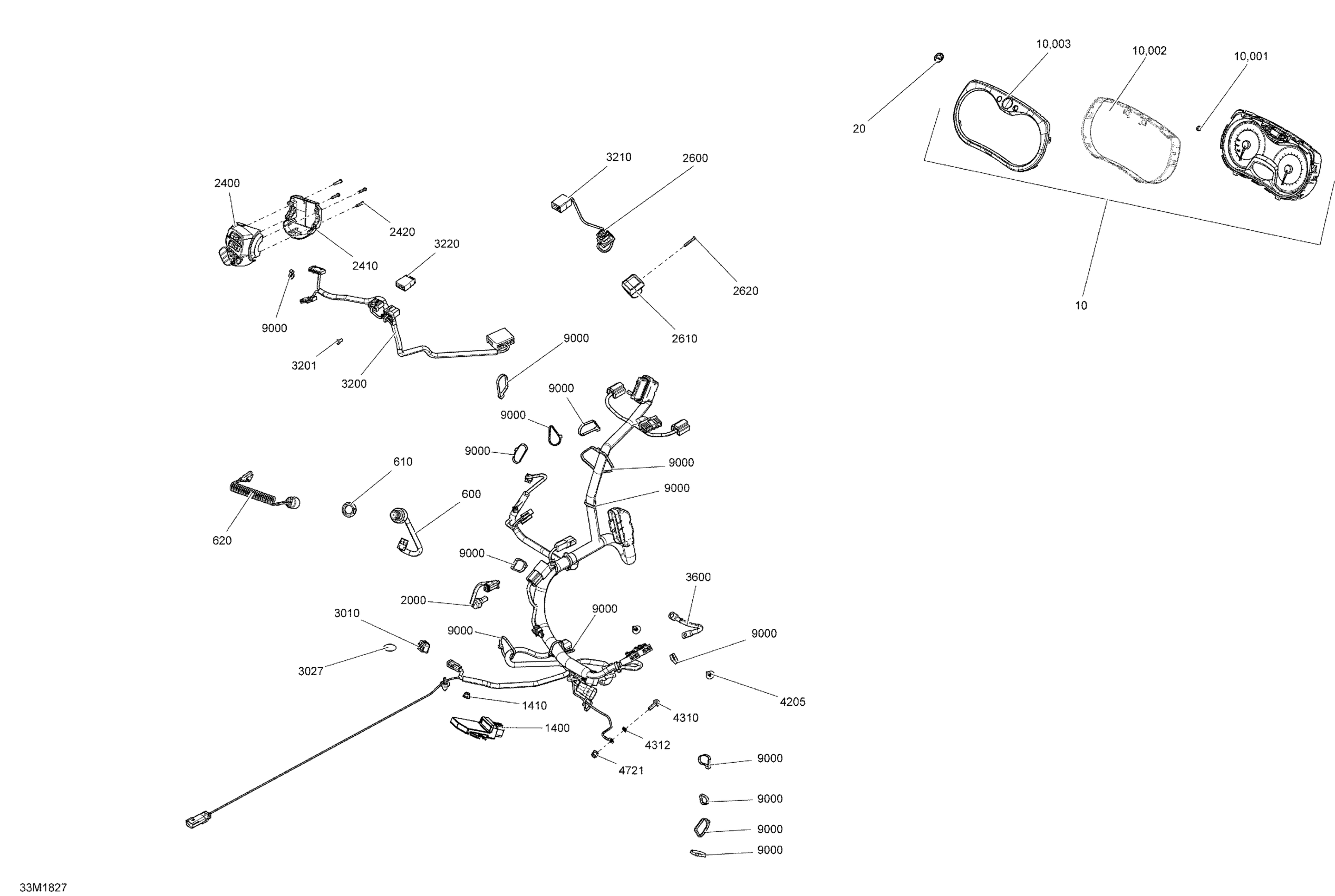

Ski-Doo MXZ 600 CARB, 2018 Electrical System MXZ, Renegade - 600 CARB Diagram

#

Description
Price

10

Speedometer | Includes 10 to 10c

515177914

$576.09

10.001

Speedometer Button | XTP

415129355

$13.52

10.002

Gauge Ring

415129370

$10.34

10.003

Lens | XTP

415129349

$22.36

20

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

600

DESS Switch

515177249

$102.96

610

Safety Nut (DESS Switch)

278002963

$2.72

620

DESS

515178284

$79.07

1400

Voltage Regulator

515176364

$143.25

1410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2000

Sensor Temperature

515177814

$53.70

2400

LH Housing

515177022

$207.43

2410

Switch Housing Plate

515175926

$17.13

2420

Torx Screw #8-18

250000263

$0.99

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

2600.001

Male Terminal

515175232

$1.45

2610

Emergency Stop Switch Support

515177310

$8.34

2620

Torx Screw #8-18

250000263

$0.99

3000

Main Harness

515177980

$412.66

3010

Lock

515176681

$17.88

3027

Adhesive Patch

518325560

$4.21

3200

Steering Wiring Harness

515177609

$103.70

3201

Pan Screw Forming, 7500C

250000690

$2.00

3210

Male Terminal Housing, 8 Circuits

515175817

$8.31

3220

Male Terminal Housing, 6 Circuits

515175662

$8.31

3400

Electrical Start Harnes

515177832

$73.85

3600

Ground Wire

515177289

$24.60

4200

Battery/Starter Wire

515177208

$28.33

4207

Clip

515177066

$3.88

4210

Elastic Stop Nut M6

232561414

$1.78

4220

Flat Washer 6 mm

234061410

$1.04

4240

Elastic Stop Nut M6

232561414

$1.78

4260

Insert

293450275

$9.89

4300

Battery Support

515177264

$29.07

4310

Hex. Flange Screw M6 X 20

207662044

$1.66

4310

Hex. Flange Screw M6 X 20

207662044

$1.66

4311

Hex. Flange Screw M6 X 12

207661244

$1.70

4312

External Serrated Lock Washer 6 mm

234461608

$0.92

4313

Flat Washer

250200082

$0.35

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

4320.001

Battery Bolt Kit

250000282

$2.95

4340

Battery Strip

515177266

$14.90

4350

Starter Relay

278003012

$35.07

4360

Hex. Flange Screw M6 X 20

207662044

$1.66

4361

Elastic Flange Nut M6 X 1.0

233261416

$1.74

4370

Hex. Flange Screw M6 X 16

207661644

$0.61

4371

Flat Washer

224061201

$1.11

4700

Ground Wire

515176358

$25.34

4720

Lock Washer Serrated M6

250200041

$0.92

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4820

Elastic Stop Nut M6

232561414

$1.78

4830

Protector Cap

710000495

$9.84

9000

Tie-Rap 180 mm

414115200

$0.09

9000

Tie Wrap 368 mm

293750008

$0.85

9000

Tie Wrap 142 mm

293750002

$0.88

9000

Tie Wrap 94 mm | 4X4

293750001

$0.83

9000

Tie-Rap 173 mm

293750009

$0.85
