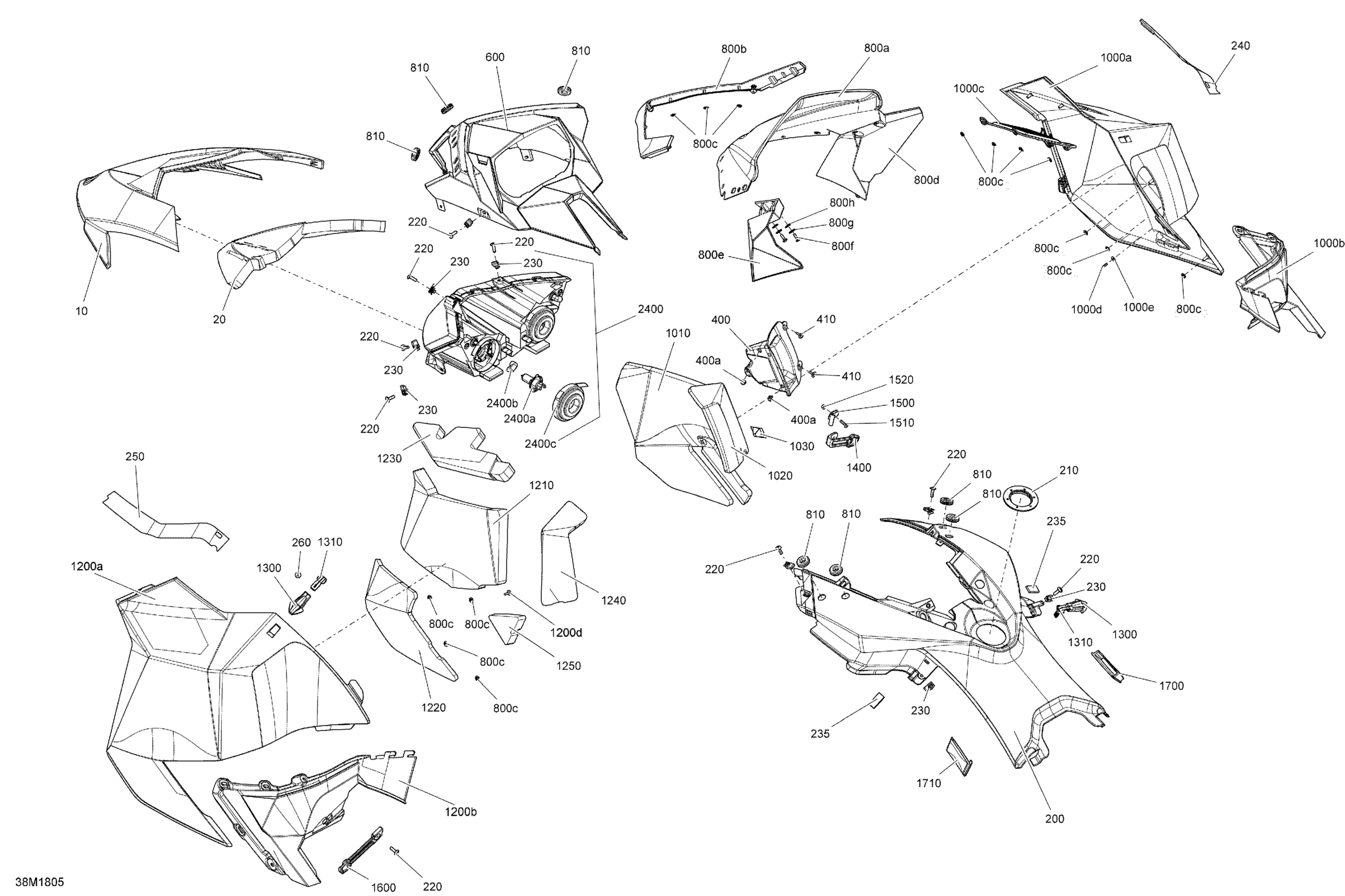

Ski-Doo MXZ 600 CARB, 2018 Hood - 600 CARB Diagram

#

Description
Price

10

Deep Black Hood | Deep Black

517304530

$214.99

20

Hood Foam

517304913

$22.49

200

Deep Black Console

517303923

$229.99

210

Console Nut

517304518

$15.29

220

Torx Truss Screw M6 X 20

250000705

$2.11

230

Panel Nut M6 X 1.0

250100198

$2.11

260

Torx Truss Screw M6 X 16

250000721

$1.69

265

Torx Truss Screw M6 X 20

250000705

$2.11

280

Panel Nut M6 X 1.0

250100198

$2.11

400

Black, RH Console | Includes 400 to 400b

517304322

$35.99

400a

Black, Cap

275500241

$3.49

410

Screw M4 X 16

250000725

$3.49

600

Gauge Support

517304575

$70.99

610

Torx Truss Screw M6 X 20

250000705

$2.11

620

Panel Nut M6 X 1.0

250100198

$2.11

800a

Windsheld 375mm | Deep Black

517304395

$148.99

800b

Windshield Support

517303607

$34.99

800c

Push Nut

732610072

$2.19

800d

RH Air Deflector

517303604

$43.99

800e

LH Air Deflector

517303605

$43.99

800f

Torx Screw K50 X 16

250000720

$1.69

800g

Washer M5

250200025

$0.74

800h

Rubber Washer 5 mm

250200024

$2.19

810

Grommet

517303756

$4.09

820

Grommet

517303756

$4.09

1000a

Deep Black, RH Panel

517304029

$211.99

1000b

Deep Black RH Moulding Panel

517303671

$28.99

1000c

Grille

517303622

$31.99

1000d

Hex. Flange Screw K40 X 16

241141660

$1.48

1000e

Flat Washer 4 mm, Stainless

234042600

$1.15

1010

RH Center Foam

517304883

$43.99

1020

RH Panel Rear Foam

517304884

$19.99

1030

Heat Shield | Europe

517305451

$2.29

1200a

Deep Black, LH Panel

517304030

$211.99

1200b

Deep Black, LH Moulding Panel

517303673

$28.99

1200d

Hex. Flange Screw K40 X 16

241141660

$1.48

1200e

Flat Washer 4 mm, Stainless

234042600

$1.15

1210

LH Panel Center Foam

517304887

$27.99

1220

LH Panel Lower Foam

517304888

$22.49

1230

LH Panel Upper Foam

517304889

$21.99

1240

LH Panel Rear Foam

517304890

$17.99

1250

Foam

517304891

$21.99

1300

End Piece Latch

517304075

$4.69

1310

Panel Latch

517303981

$12.99

1400

RH Panel Latch

517303612

$9.99

1500

Latch Support

517304221

$9.19

1510

Torx Screw M5 X 20

250000792

$2.11

1600

LH Panel Latch

517303808

$11.49

1610

Torx Truss Screw M6 X 20

250000705

$2.11

1700

RH Panel Clip

513033471

$7.19

1710

LH Panel Clip

513033472

$5.99

2400

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

2400

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

2400a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

2400b

Cap

515176498

$12.99

2400c

Rubber Cap Protector

219800280

$19.49

2410

Torx Truss Screw M6 X 20

250000705

$2.11

2420

Panel Nut M6 X 1.0

250100198

$2.11

2610

Torx Truss Screw M6 X 20

250000705

$2.11

2620

Panel Nut M6 X 1.0

250100198

$2.11
