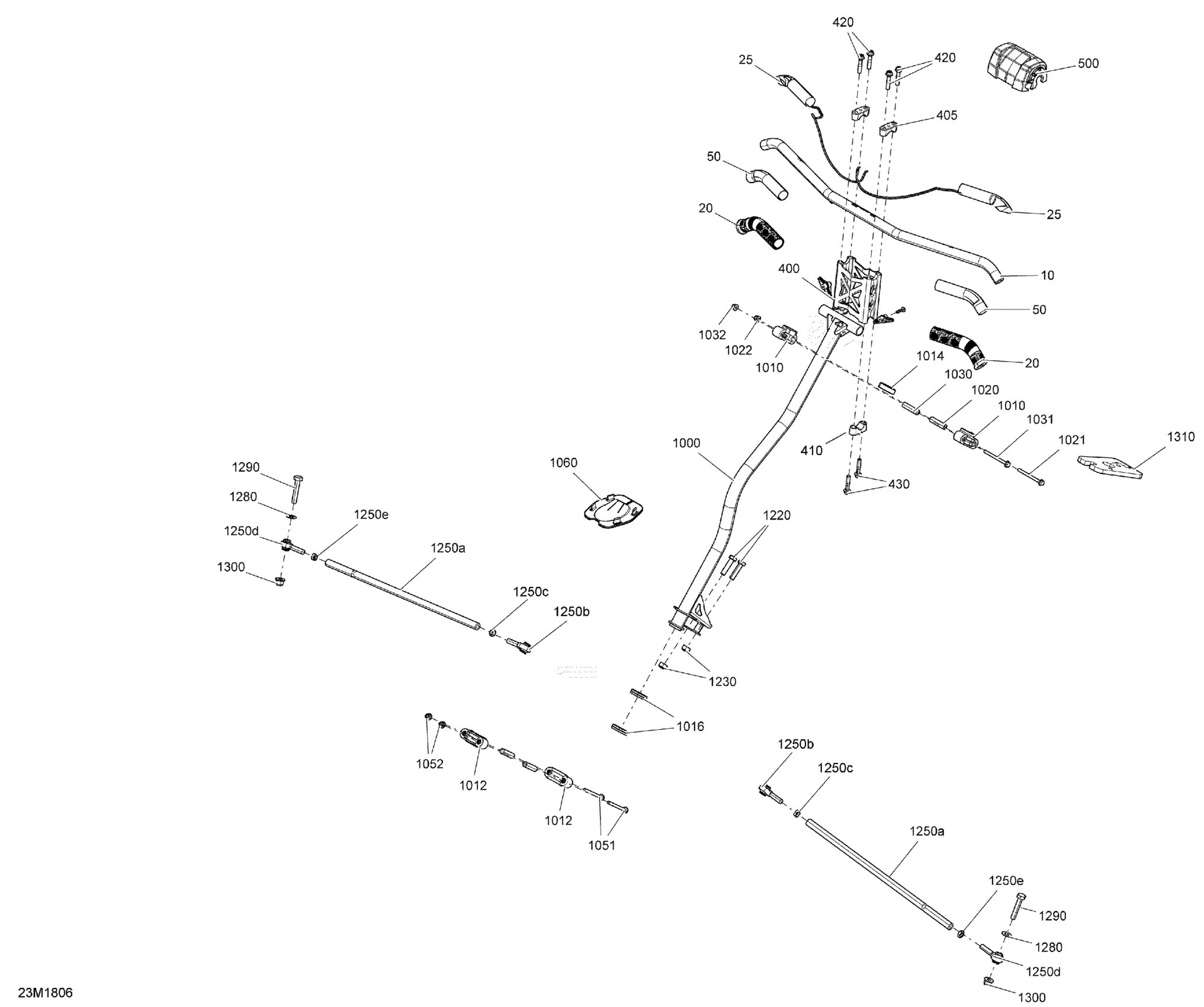

Ski-Doo 1- MXZ 600 CARB, 2018 07- Steering MXZ - 600 CARB Diagram

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

Grip 148mm

506152560

$16.88

Heating Element 32 Watt 3 Wires

506152798

$52.99

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Thermal Insulation

506153176

$6.09

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

$67.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

Deep Black, Steering Pad

506152541

$41.99

Steering Column

506152962

$199.99

Upper Half-Housing

506152508

$9.23

Lower Half-Housing

506152217

$7.62

Upper Anti-Vibration Gasket

506152509

$4.79

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Plate

506152163

$12.99

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

Elastic Locking Nut M10

233601466

$2.11

Tie-Rod Ass'y

506152496

$62.49

LH Thread Ball Joint

506152081

$41.49

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152019

$41.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

503192496

$0.77

Washer

506152582

$4.55

Hex Screw M10 X 1.5 X 55

207005554

$7.51

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Bushing

506152521

$15.79
