Description

Price

10>10e

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10b1

Hex. Flange Screw M6 X 25

250000447

$2.11

10c

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10c1

Screw M4 X 20

415129356

$2.22

10d

Pin Ass'y

415030000

$19.99

10e

Microswitch

507032599

$68.99

11

Clamps | Includes 75a to 75b

719000049

$14.83

12

Hex. Flange Screw M6 X 25

250000447

$2.11

30

Banjo Bolt

507032551

$5.61

40

Copper Washer

705601628

$4.44

200>200c

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

400

Disc

507032487

$185.49

400

Disc

507032487

$185.49

400

Disk

507032554

$222.49

420

O-Ring

293300134

$2.32

500

Aluminum Disk Protector

507032446

$28.99

510

Torx Screw M6 X 16

250000365

$2.11

520

Threaded Tube

507032497

$15.72

530

Carriage Bolt M6 X 1.0 X 16

207761644

$2.11

600

Hose

507032535

$46.49

600

Hose

507032540

$46.49

600

Hose

507032540

$46.49

610

Clamp

293650256

$5.49

615

Open Clamp

518321570

$7.69

660

Elastic Stop Nut M6

232561414

$0.55

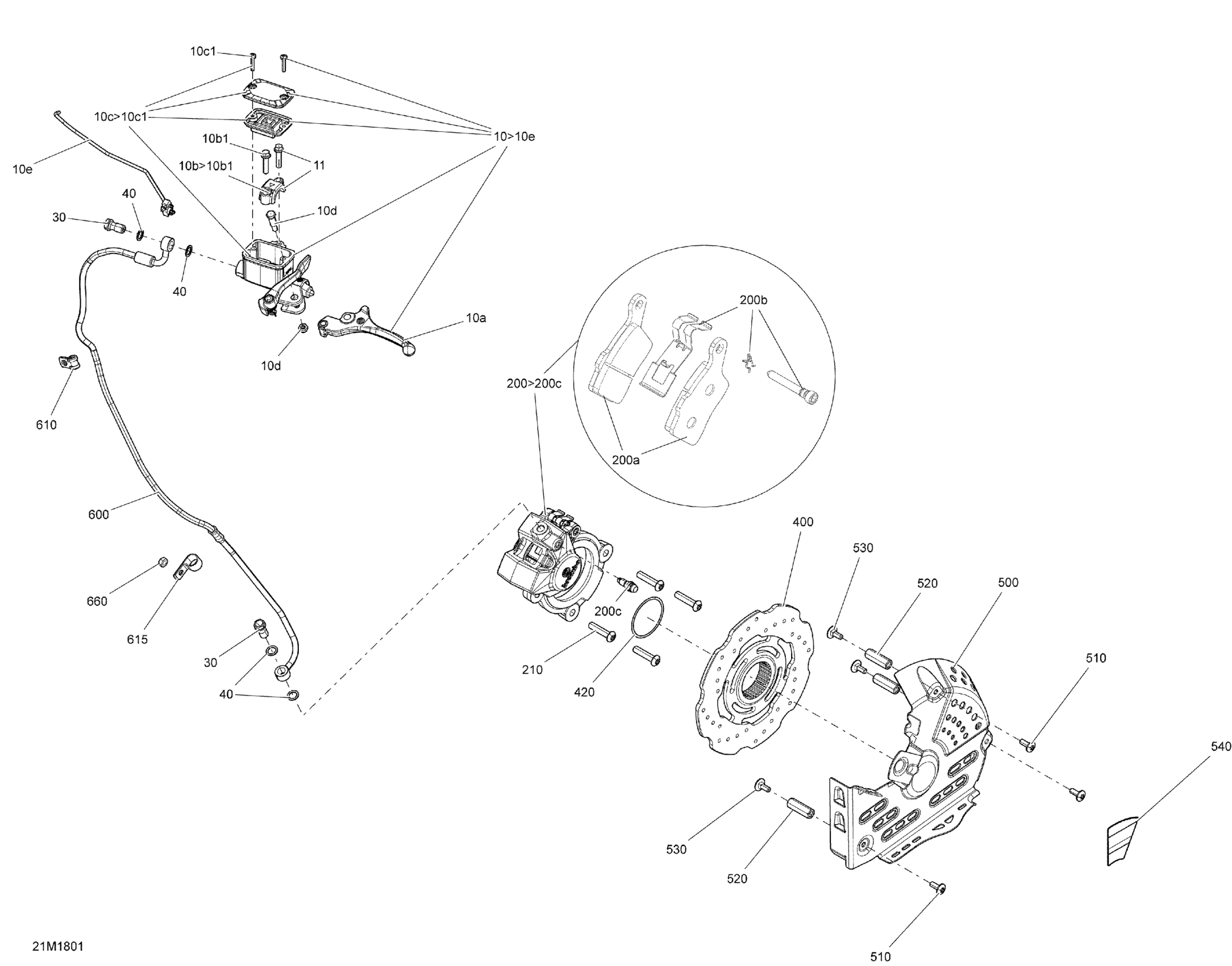

Ski-Doo 1- MXZ 600 CARB, 2018 06- Brakes - 600 CARB Diagram

Master Cylinder Ass'y | Includes 10 to 10h

Lever With Parking Lock

Clamp And Screw Kit

Hex. Flange Screw M6 X 25

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

Screw M4 X 20

Pin Ass'y

Microswitch

Clamps | Includes 75a to 75b

Hex. Flange Screw M6 X 25

Banjo Bolt

Copper Washer

Brake Caliper | Includes 200 to 200c

Brake Pads Kit

Brake Spring Kit

Bleeder

Hex. Button Head Screw M8 X 1.25 X 35

Disc

Disc

Disk

O-Ring

Aluminum Disk Protector

Torx Screw M6 X 16

Threaded Tube

Carriage Bolt M6 X 1.0 X 16

Hose

Hose

Hose

Clamp

Open Clamp

Elastic Stop Nut M6
