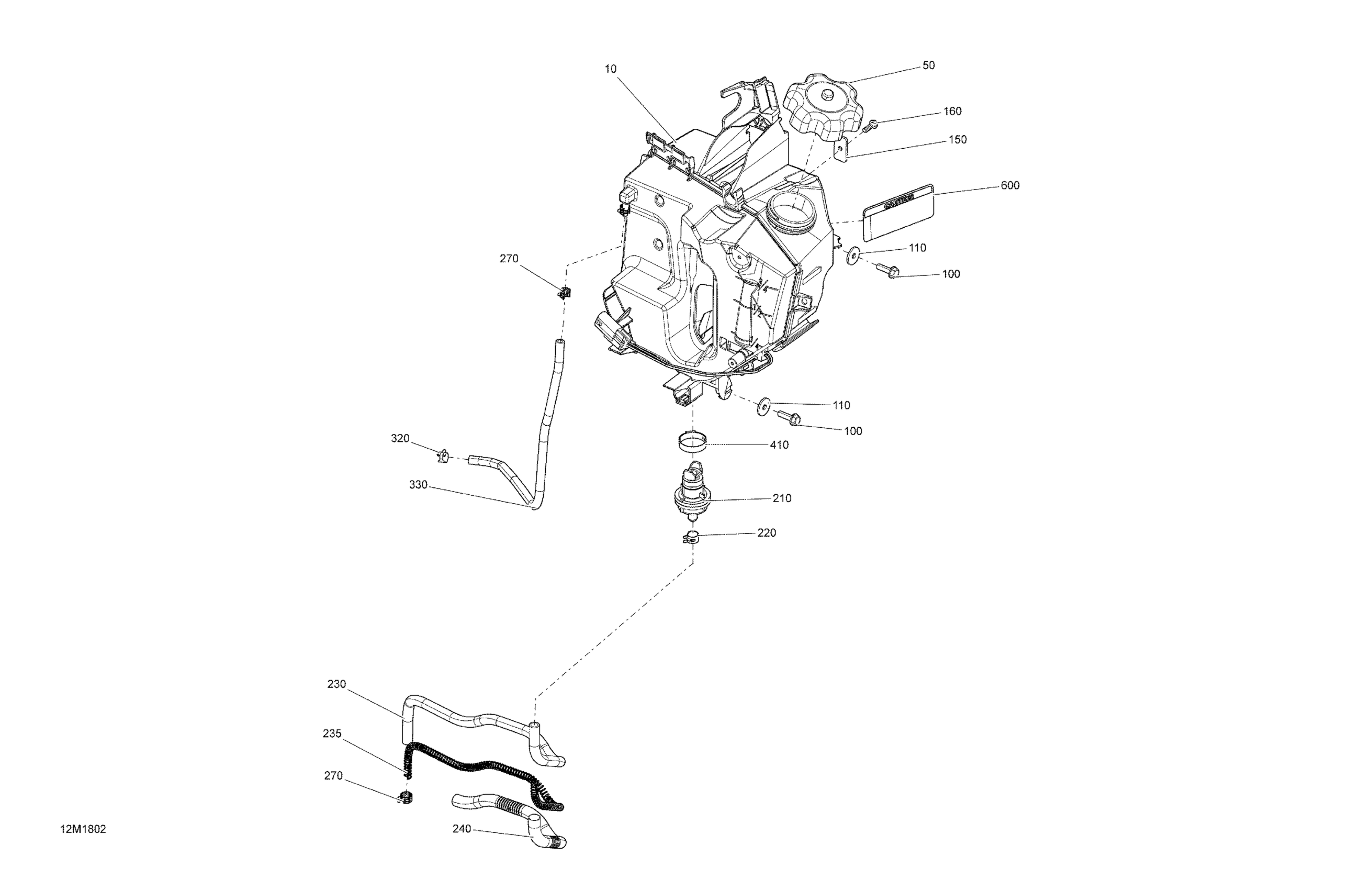

Ski-Doo 1- MXZ 600 CARB, 2018 02- Oil - 600 CARB Diagram

Description

Price

Oil Tank

519000312

$97.99

Cap

519000273

$28.99

100

Hex. Flange Screw M6 X 16

250000936

$1.47

110

Flat Washer

224061201

$1.37

150

Bracket

519000179

$10.49

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

210

Oil Filter

519000242

$13.77

220

Spring Clamp

414415200

$0.88

230

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

235

Spring

519000196

$9.69

240

Tubing 10 MM 1000MM Long

219704407

$2.79

270

Spring Clamp

414420700

$0.72

320

Spring Clamp

414554800

$0.88

330

Polyurethane Hose 10000Mm Long

219704410

$56.99

410

Crimp Clamp

293650099

$4.29

600

Warning Decal / Oil Notice

516007443

Unavailable
